On-Vehicle

Refer to the "Service Bulletins" section prior to performing the following procedures.

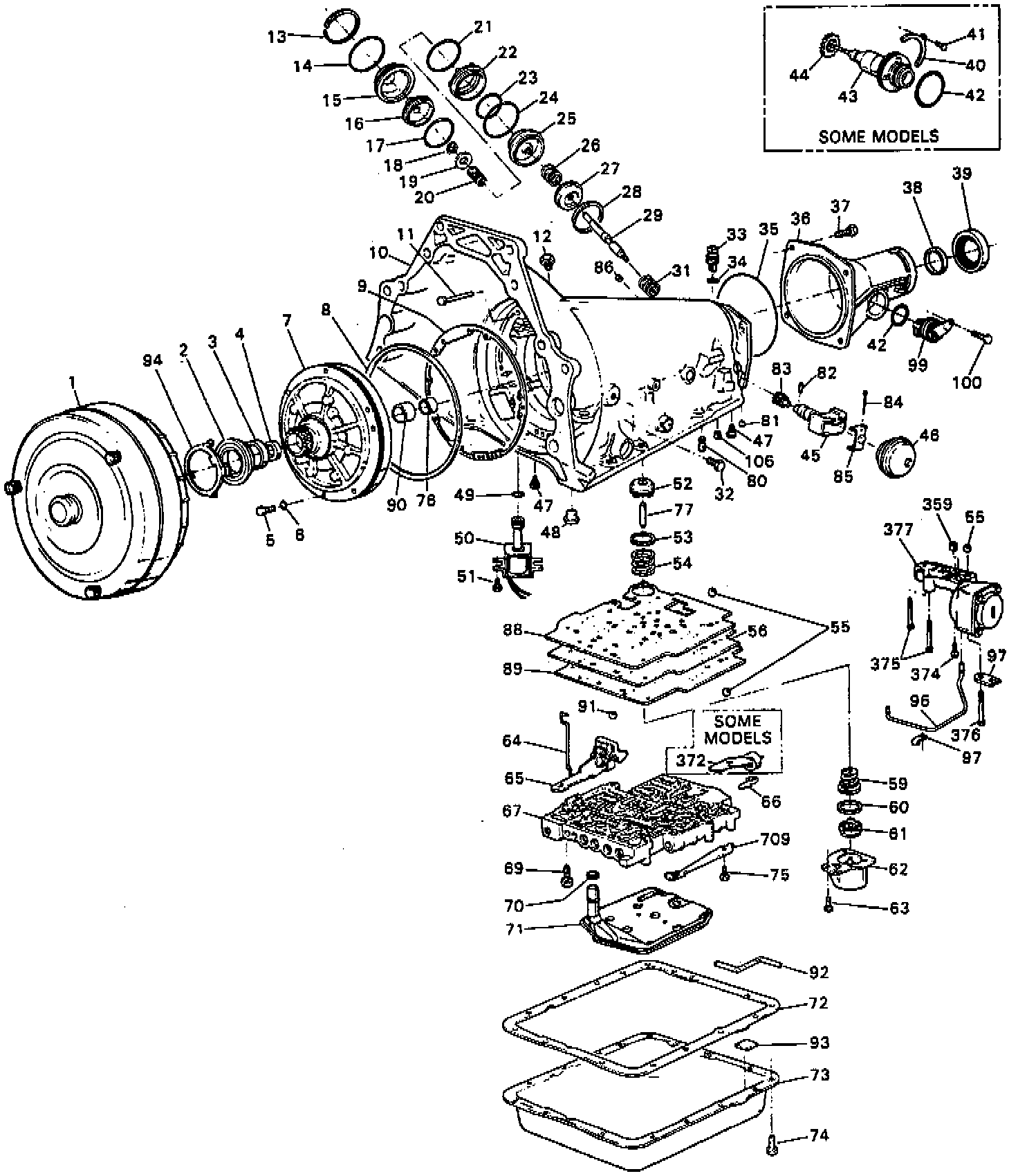

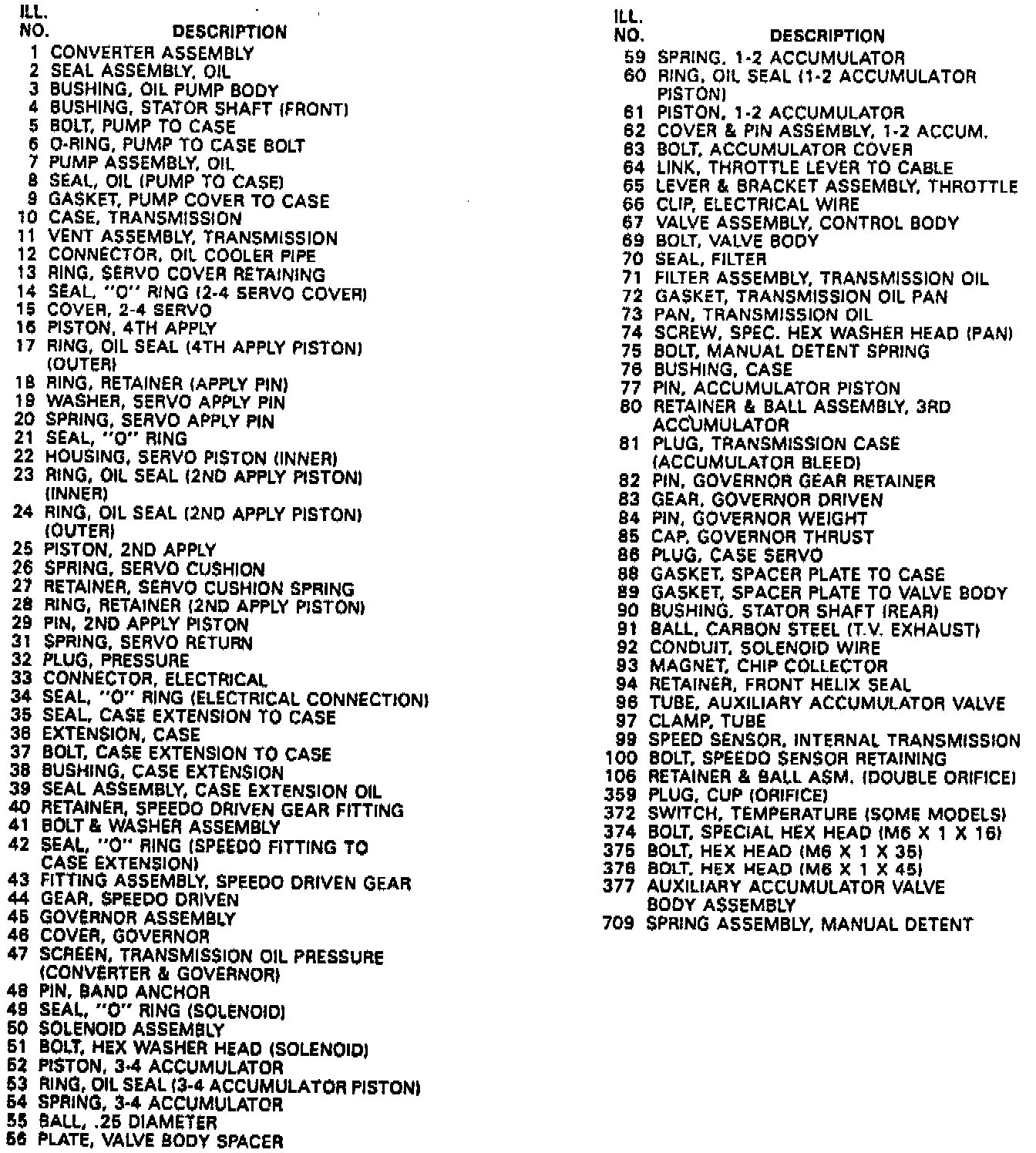

Fig. 3, Transmission case & external parts exploded view (Part 1 of 2). 1989-90 Models:

Fig. 3, Transmission case & external parts exploded view (Part 2 of 2). 1989-90 Models:

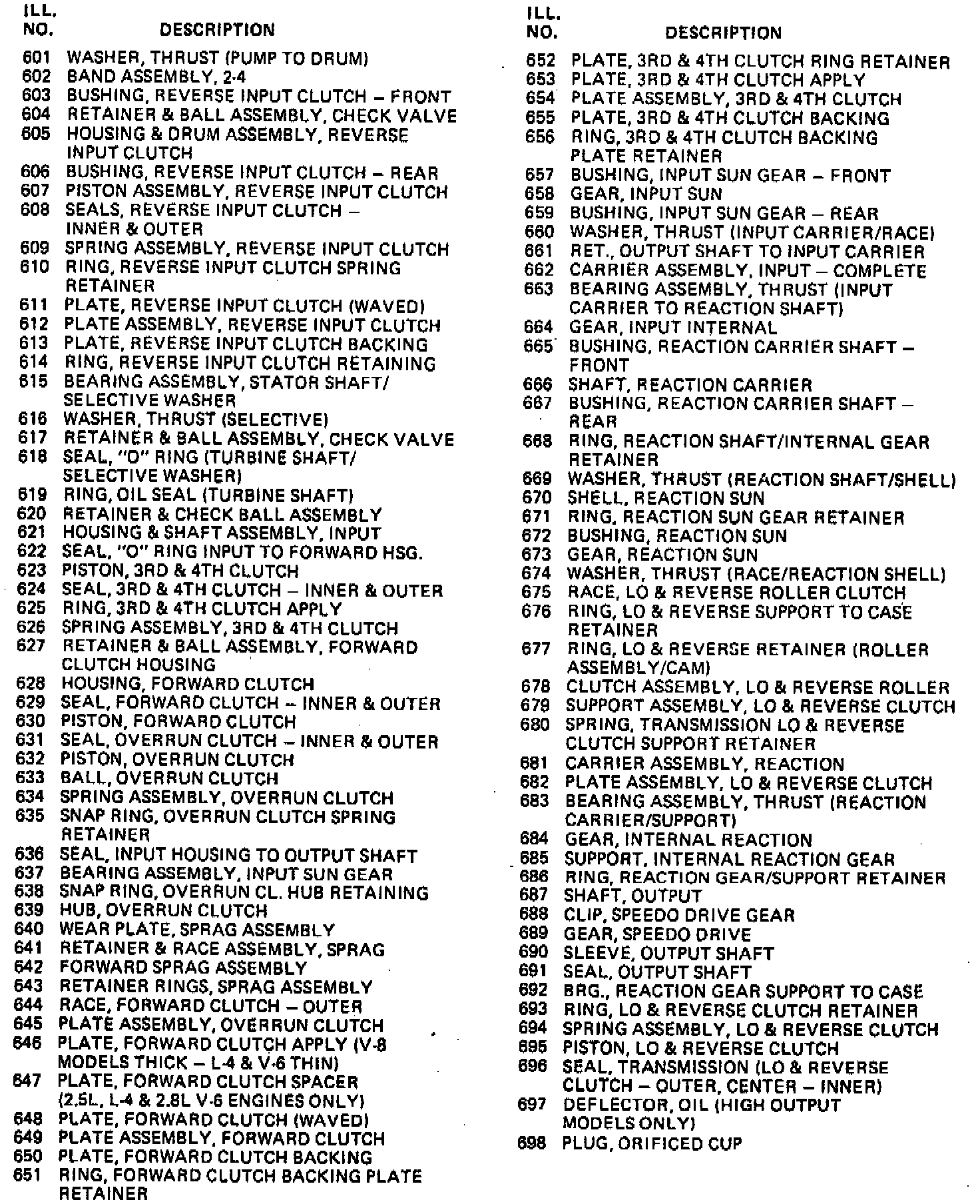

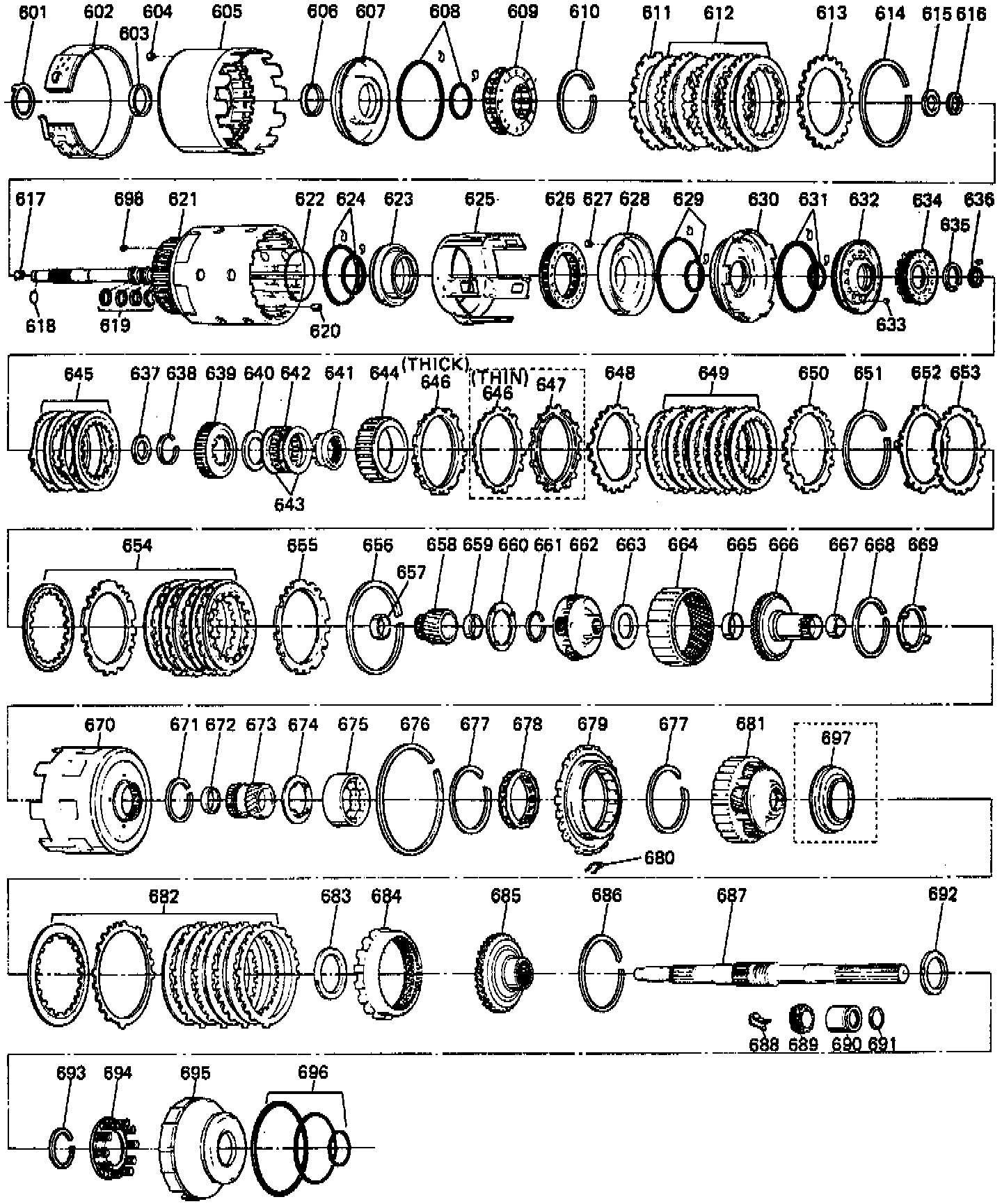

Fig. 4, Transmission internal parts exploded view (Part 1 of 2):

Fig. 4, Transmission internal parts exploded view (Part 2 of 2):

Refer to Figs. 3 and 4 during subassembly service and transmission assembly procedures.
