Discharge Valve Plate

Tools Required:
J 4245 Snap Ring Pliers
J 25008-A Holding Fixture

Remove or Disconnect

Replacing The Valve Plate Retainer:

1. Valve plate retainer using J 4245.

Replacing The Discharge Plate:

2. Discharge valve plates.

Install or Connect

1. Cylinder and shaft assembly in J 25008-A.

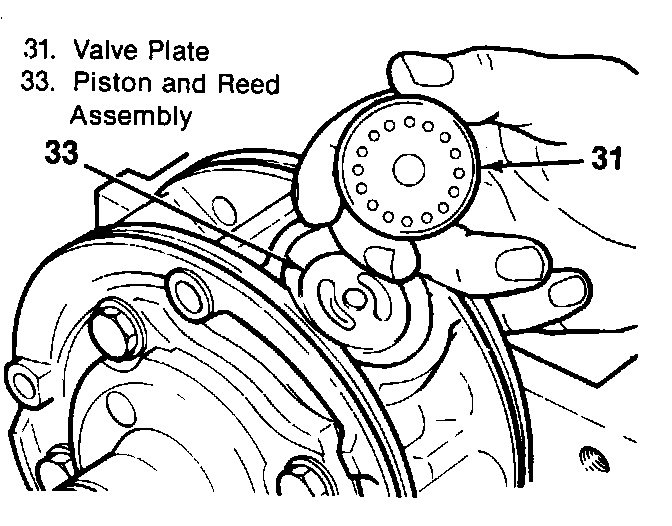

2. The discharge valve plates.
3. Valve plate retainer rings using J 4245.
^ The valve plates must be tight after the snap rings are installed.
