Service Point Locations

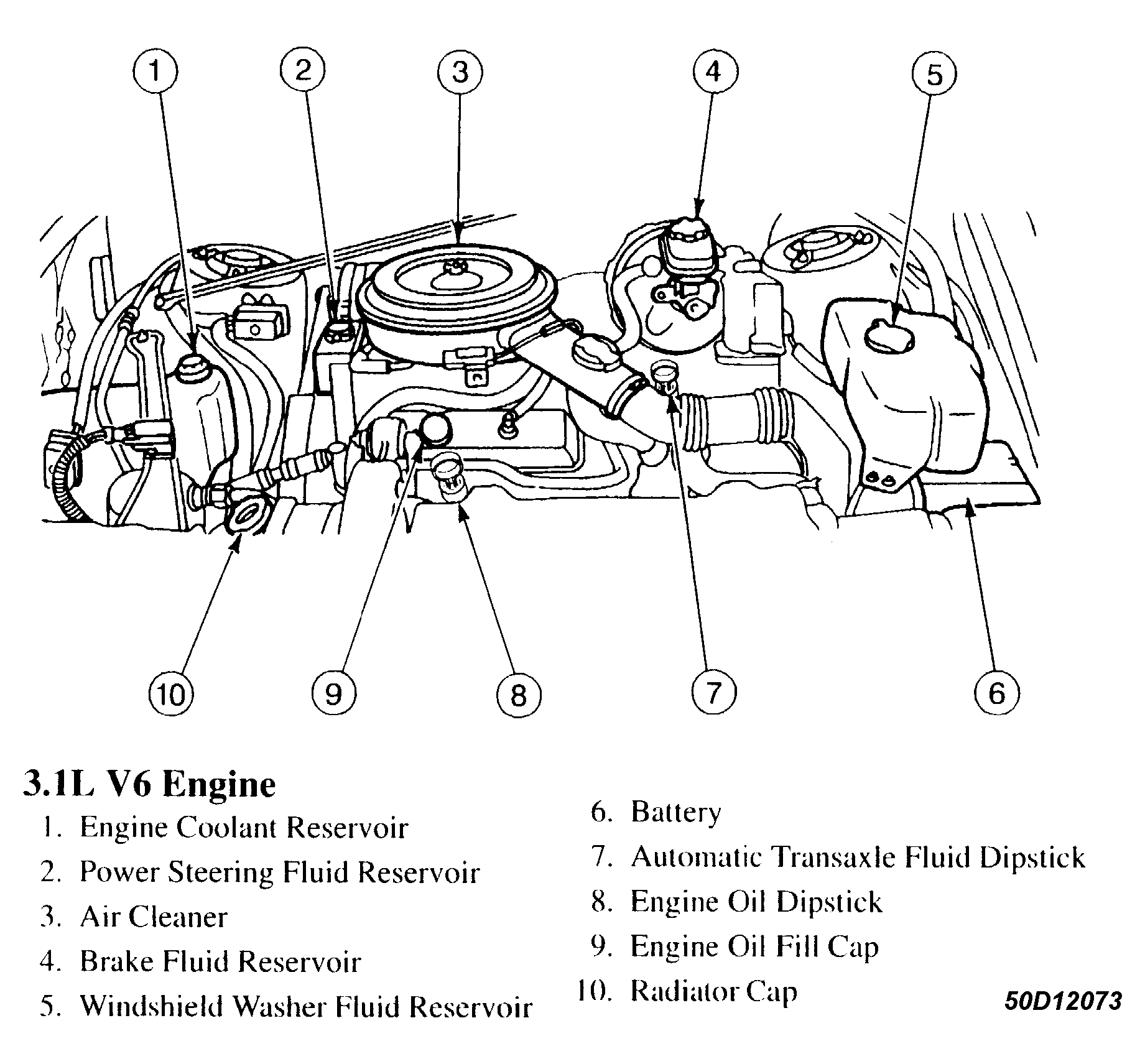

Fig 1: Service Point Locations (3.1L V-6)

Courtesy of GENERAL MOTORS CORP.

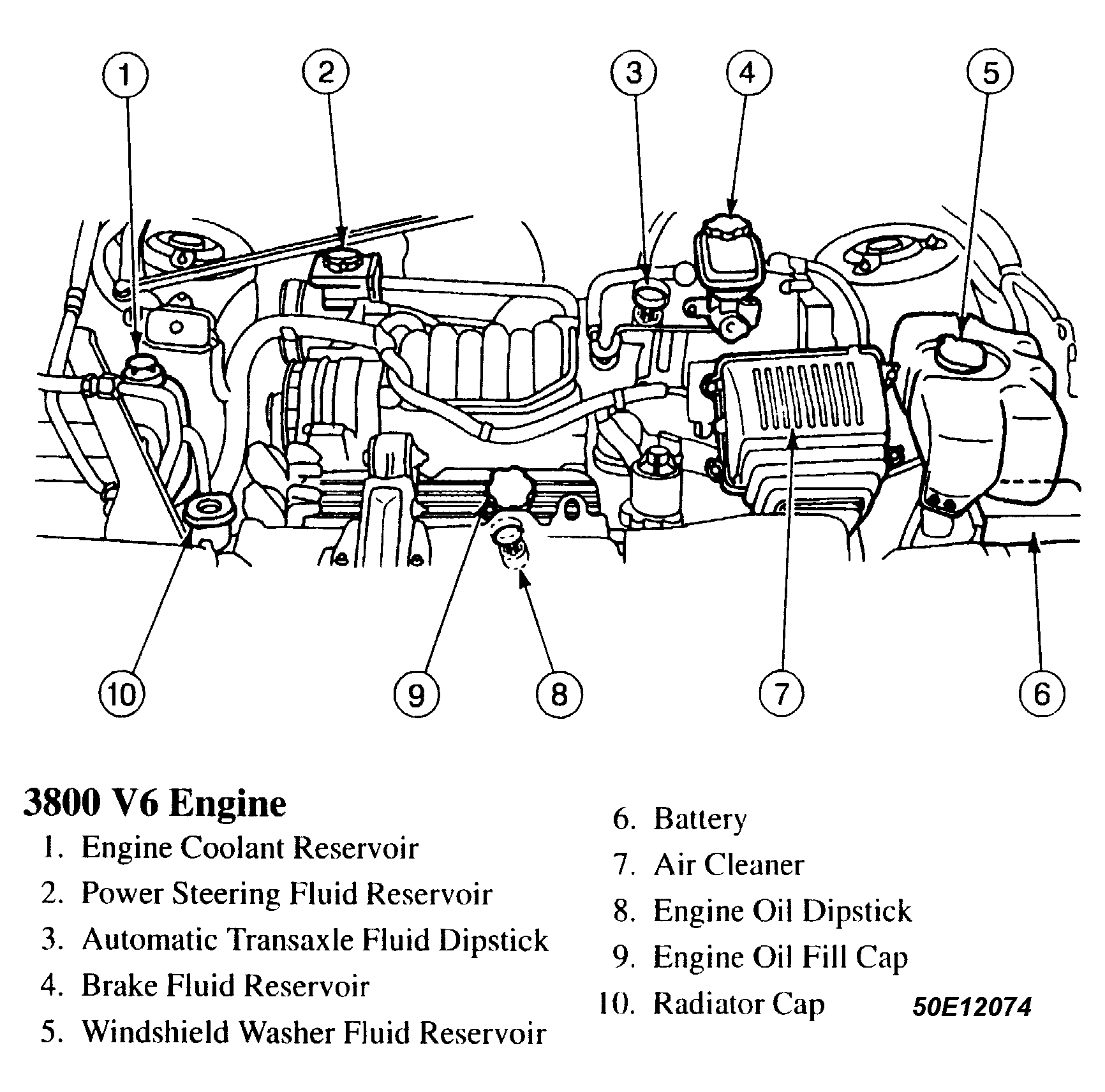

Fig 2: Service Point Locations (3.8L V-6)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.
