Test D: Power Window Motor Test

To test power window motor, see Fig 1Fig 1 .

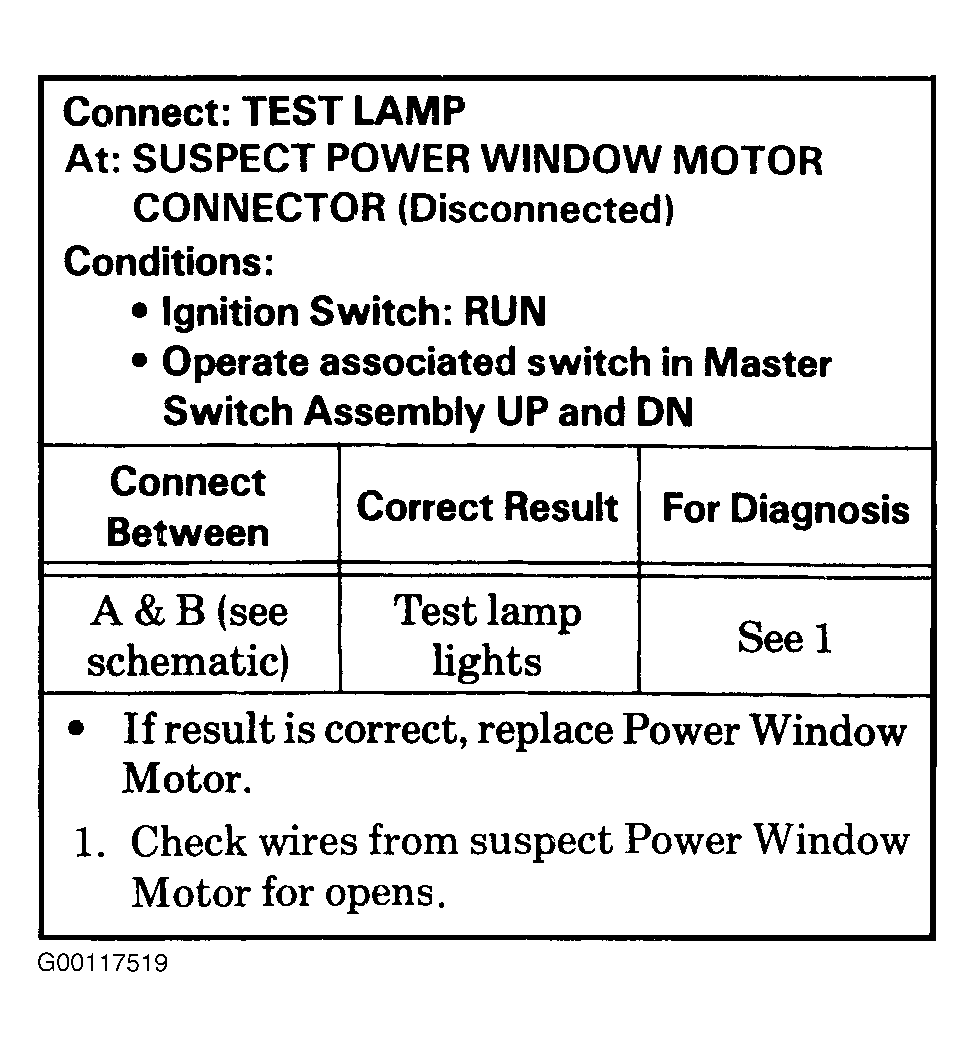

Fig 1: Test D: Power Window Motor Test
G00117519Courtesy of GENERAL MOTORS CORP.
