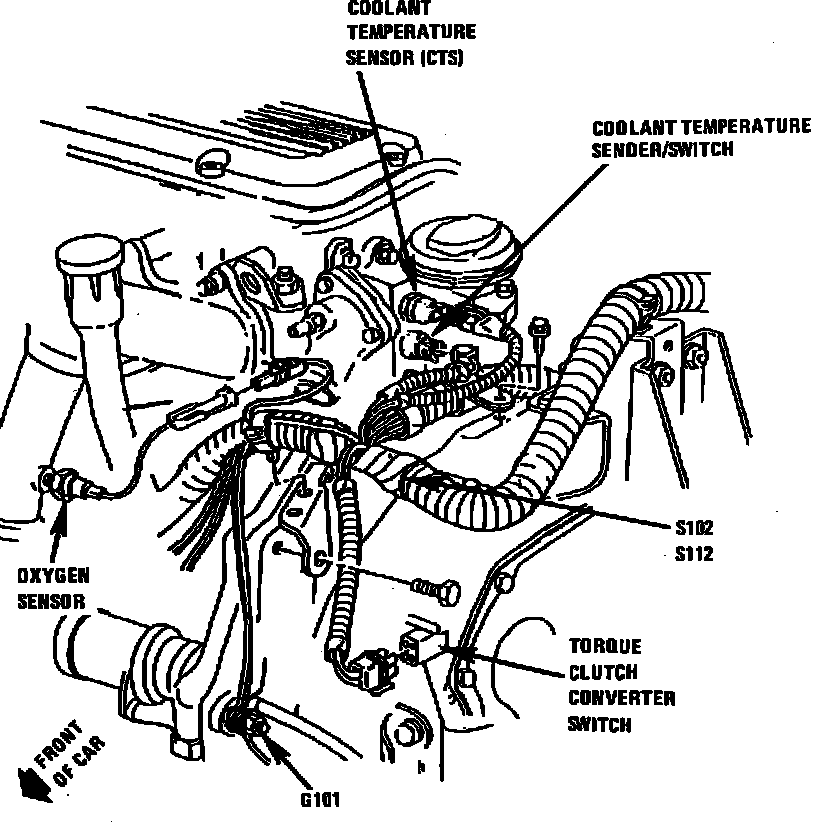

Oxygen Sensor: Locations

LH Front Of 2.2L:

Front RH Side Of Engine, On Exhaust Manifold

Applicable to: 2L/4-134 Engine. 1991 Models
