Electronic/Powertrain Control Module (ECM/PCM)

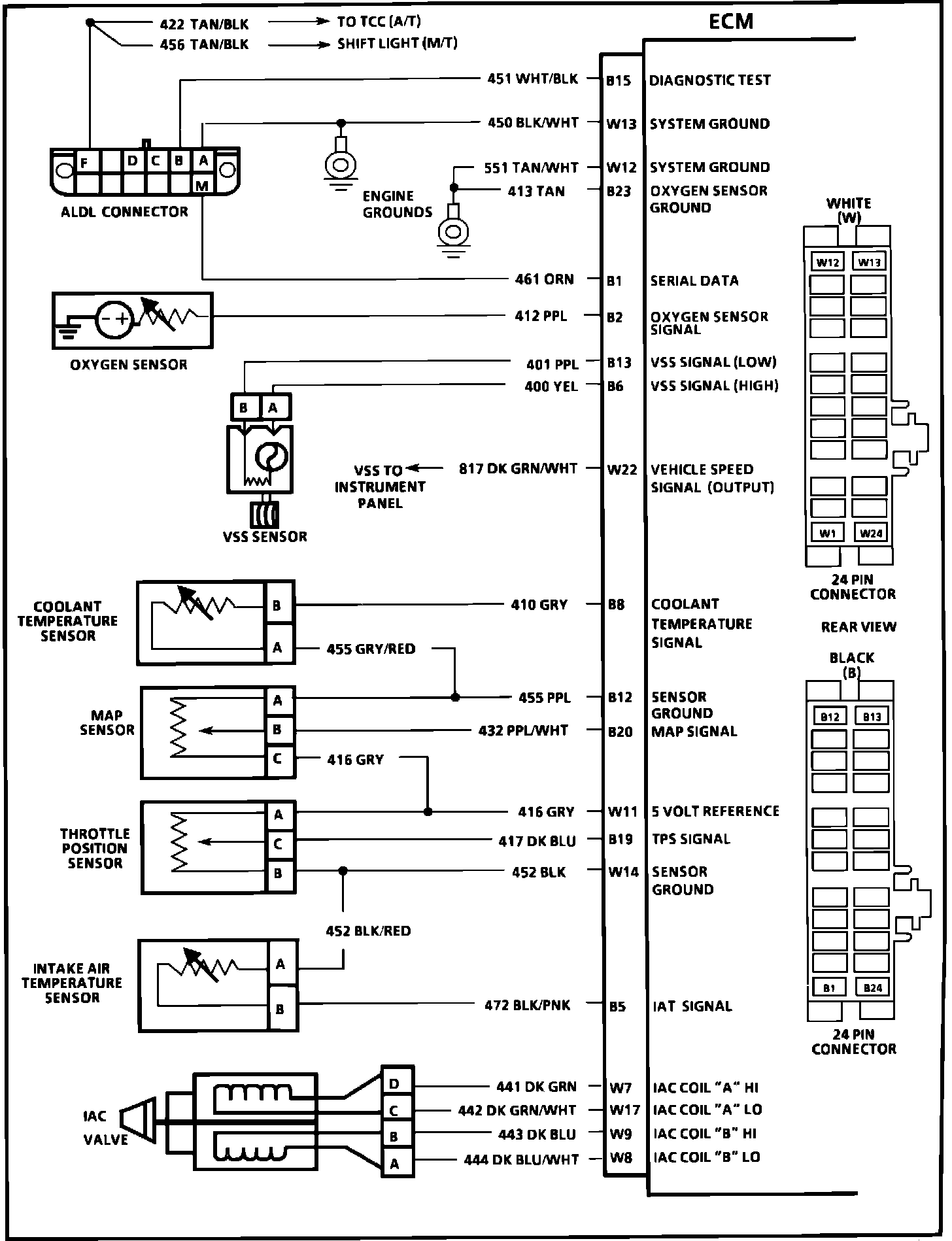

Electronic Control Module (ECM):

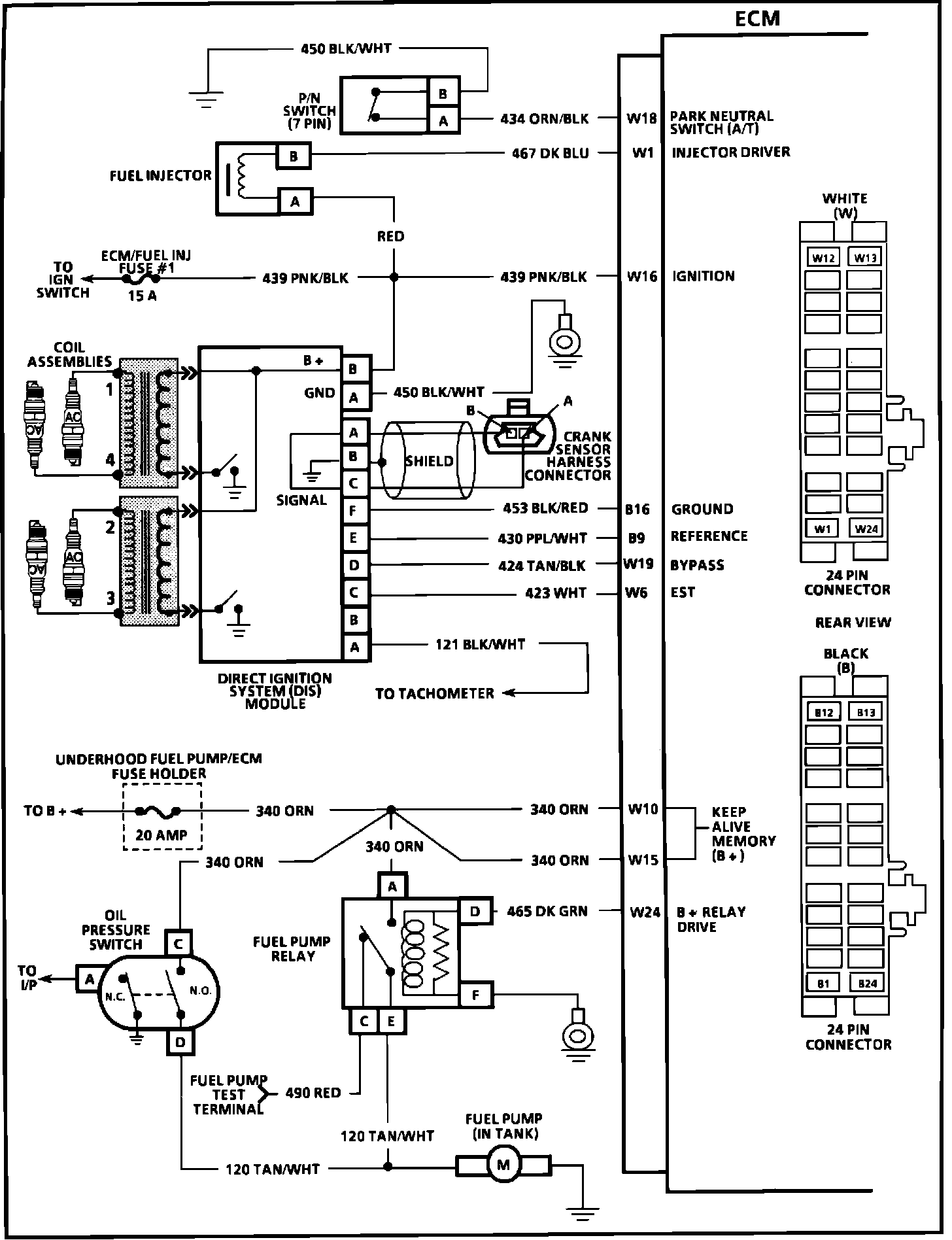

Electronic Control Module (ECM):

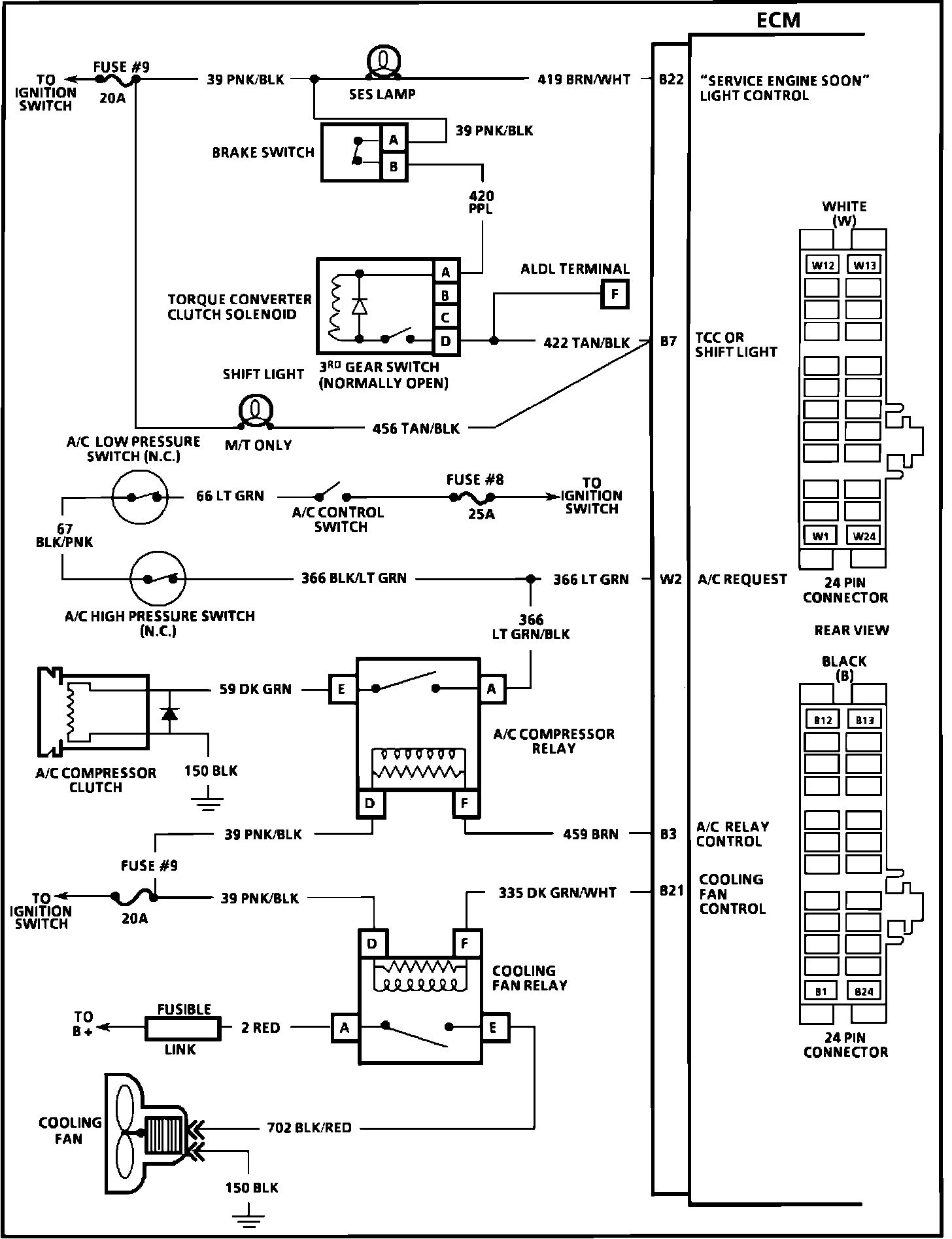

Electronic Control Module (ECM):
