Wiring Diagrams

Fig 1: CCM Wiring Diagram (1 Of 6)

G00160301

Courtesy of GENERAL MOTORS CORP.

Fig 2: CCM Wiring Diagram (2 Of 6)

G00160302

Courtesy of GENERAL MOTORS CORP.

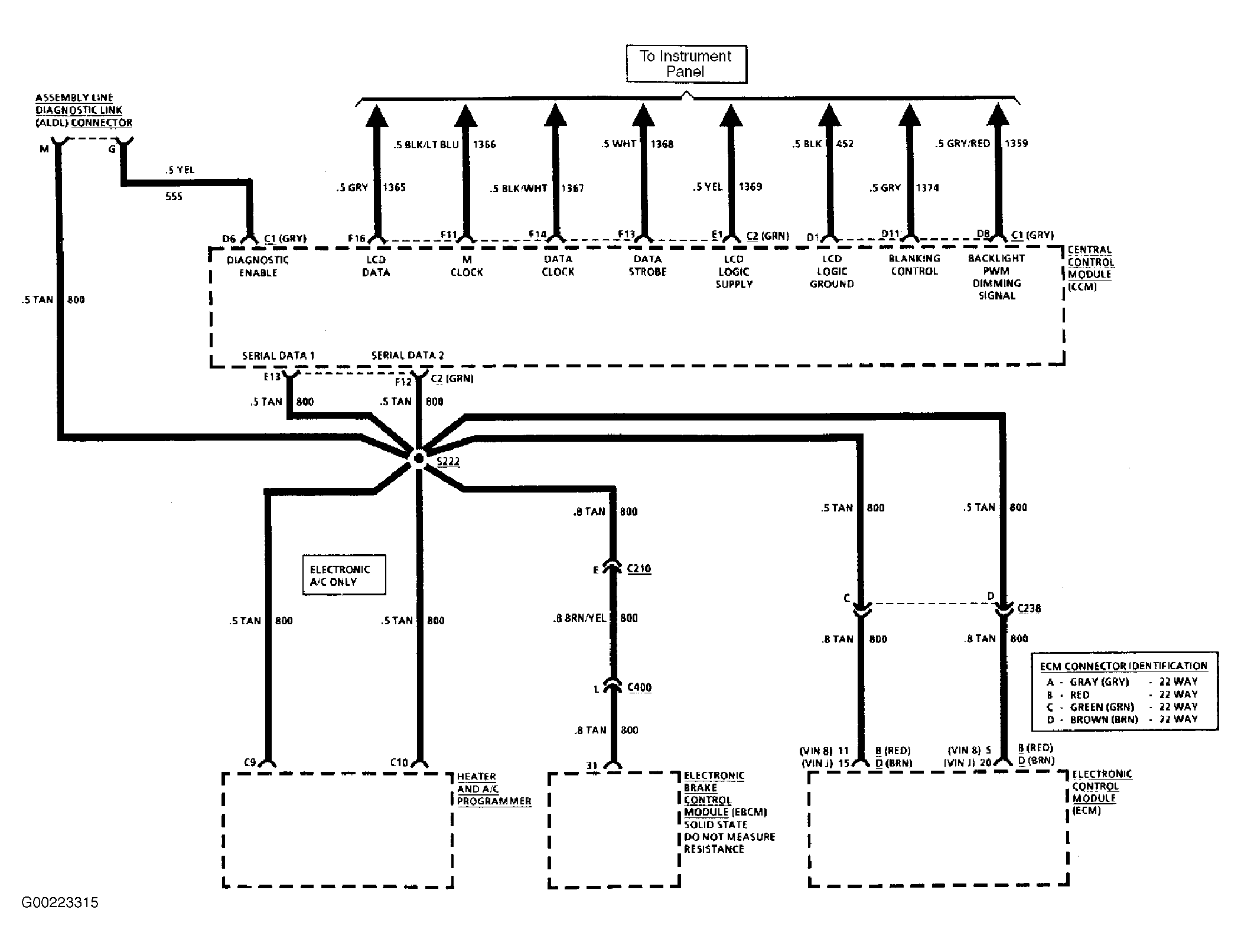

Fig 3: CCM Wiring Diagram (3 Of 6)

G00223315

Courtesy of GENERAL MOTORS CORP.

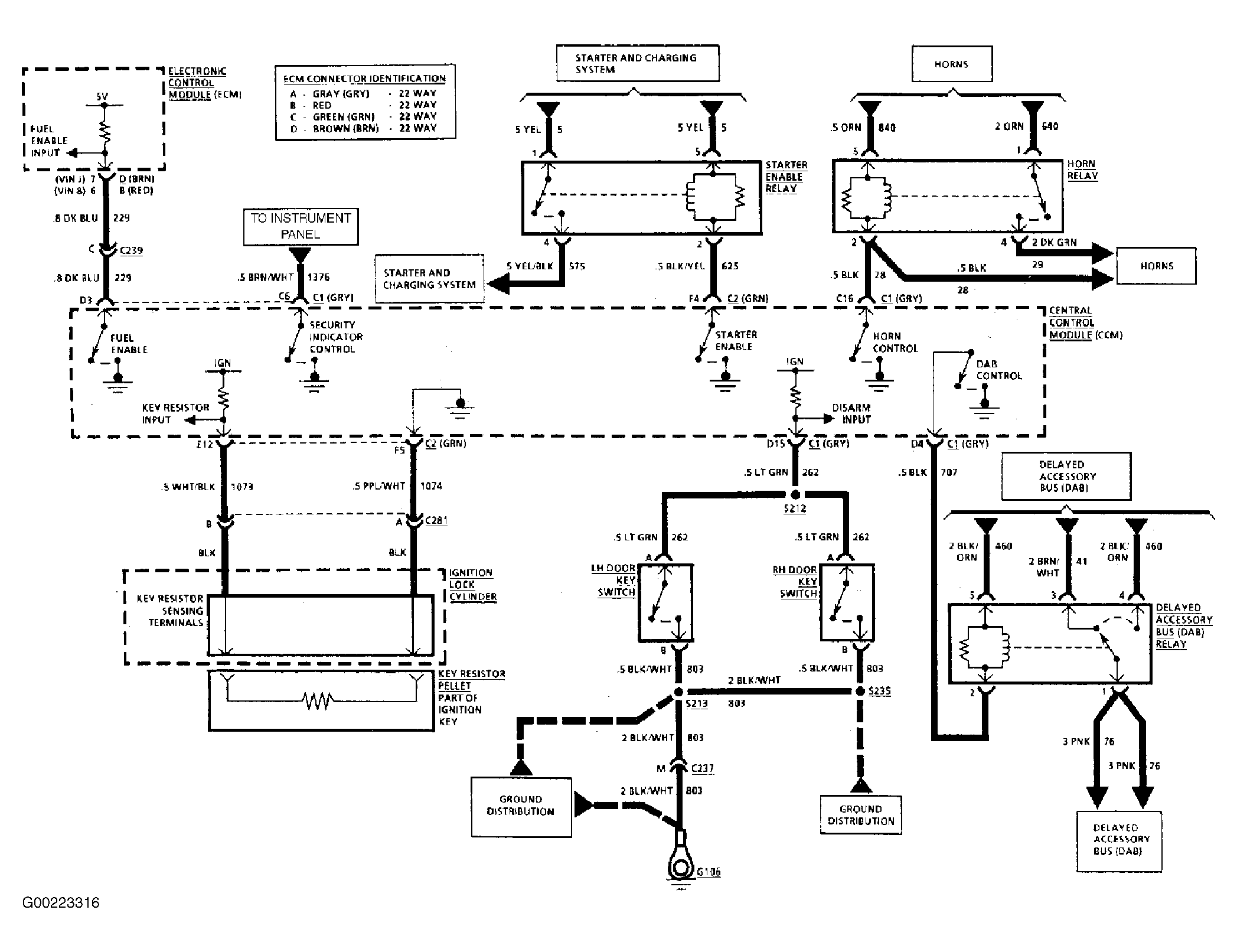

Fig 4: CCM Wiring Diagram (4 Of 6)

G00223316

Courtesy of GENERAL MOTORS CORP.

Fig 5: CCM Wiring Diagram (5 Of 6)

G00160305

Courtesy of GENERAL MOTORS CORP.

Fig 6: CCM Wiring Diagram (6 Of 6)

G00160306

Courtesy of GENERAL MOTORS CORP.
