Abs Function Check

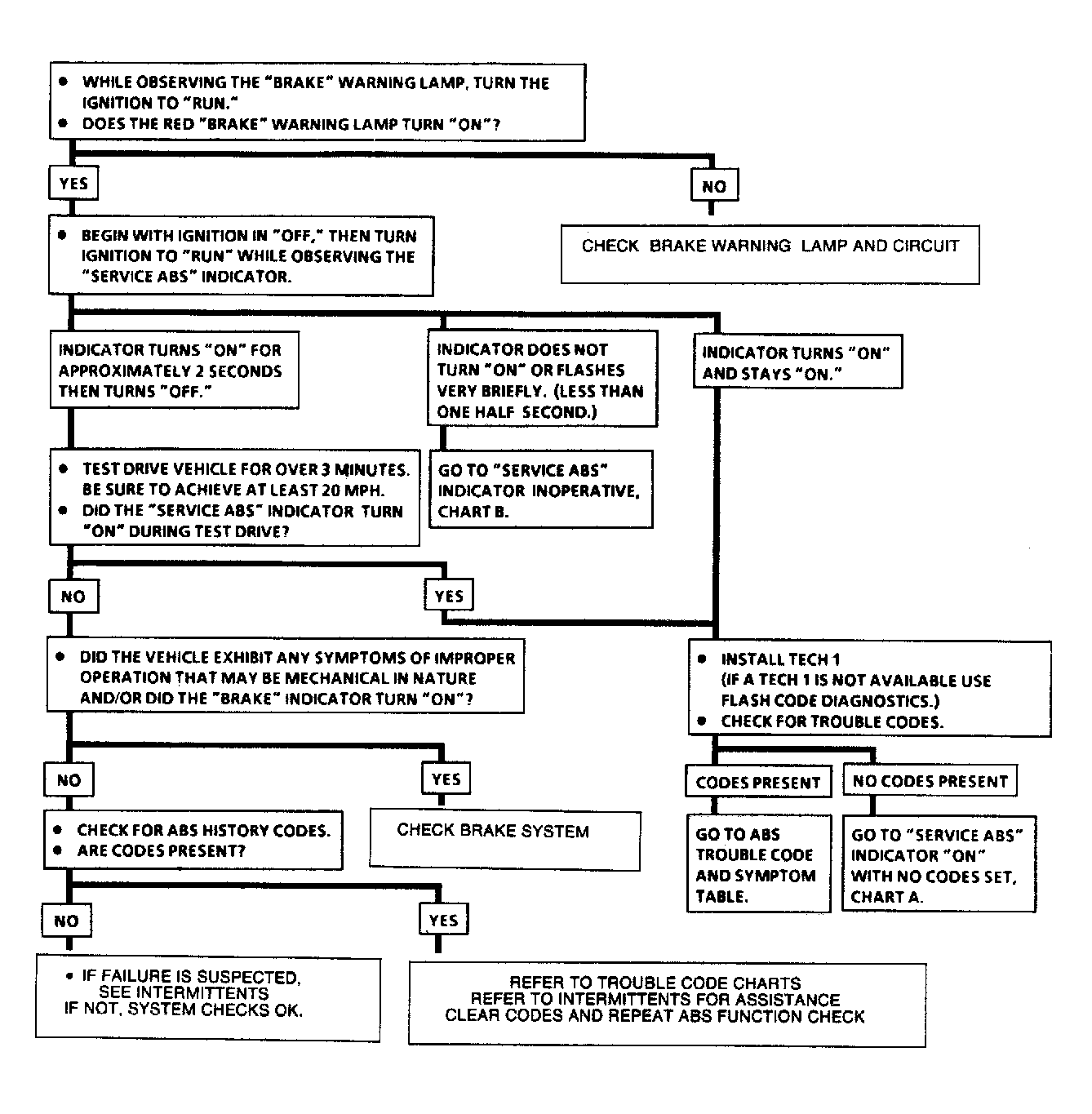

Fig 1: ABS Function Check
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
