Oxygen Sensor: Locations

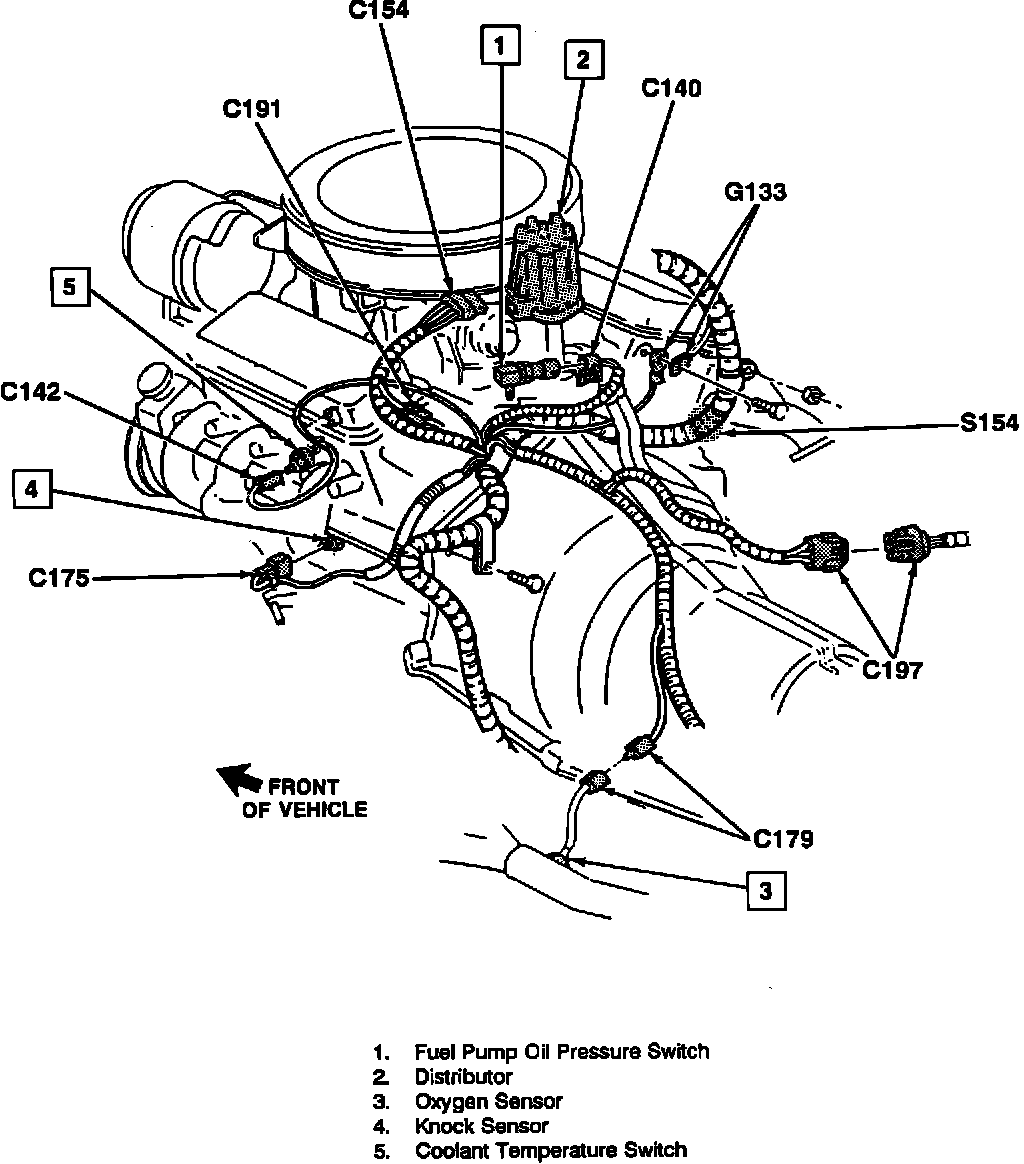

C-3 System Components:




Engine Wiring & Components:




LH Rear Of Engine, On Exhaust Pipe

Applicable to: 4.3L/V6-262 G Series
