Window Motor Test
To perform test, see
Fig 1
.

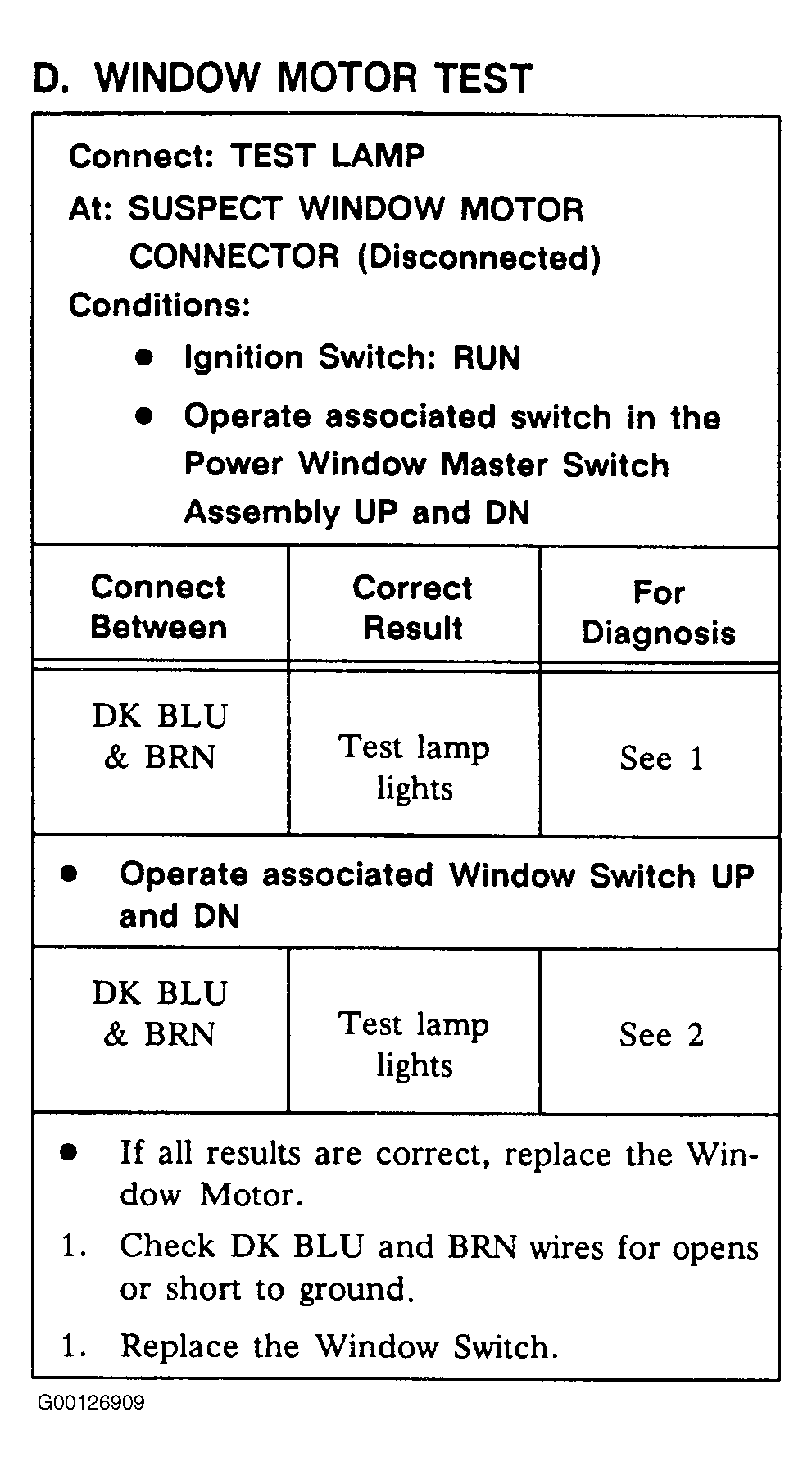

Fig 1: Window Motor Test
Courtesy of GENERAL MOTORS CORP.
