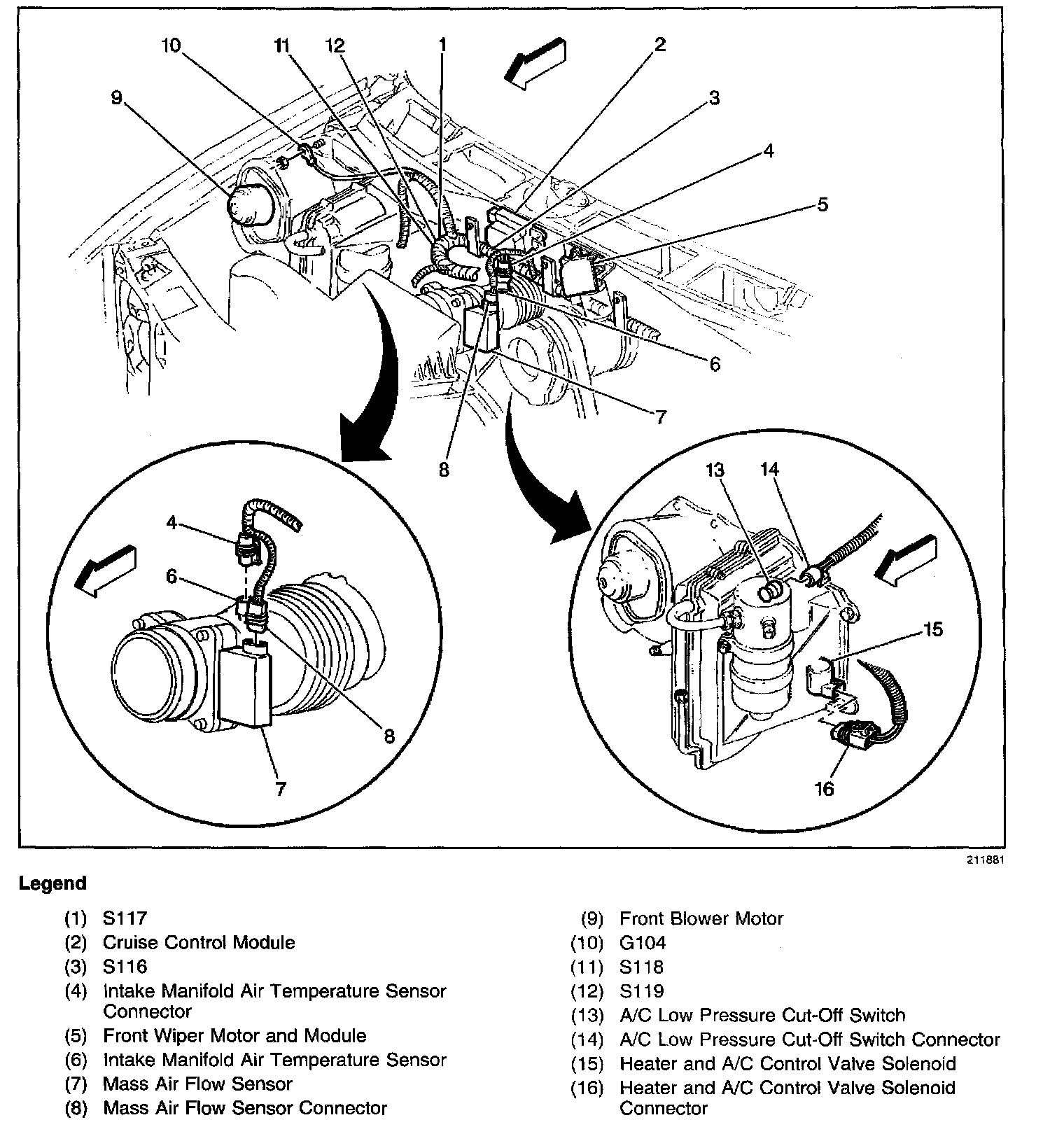

Wiper Motor and Module, Front

Engine/Center Of Front Of Dash Wiring:




On the center front of the dash next to the cruise control module
