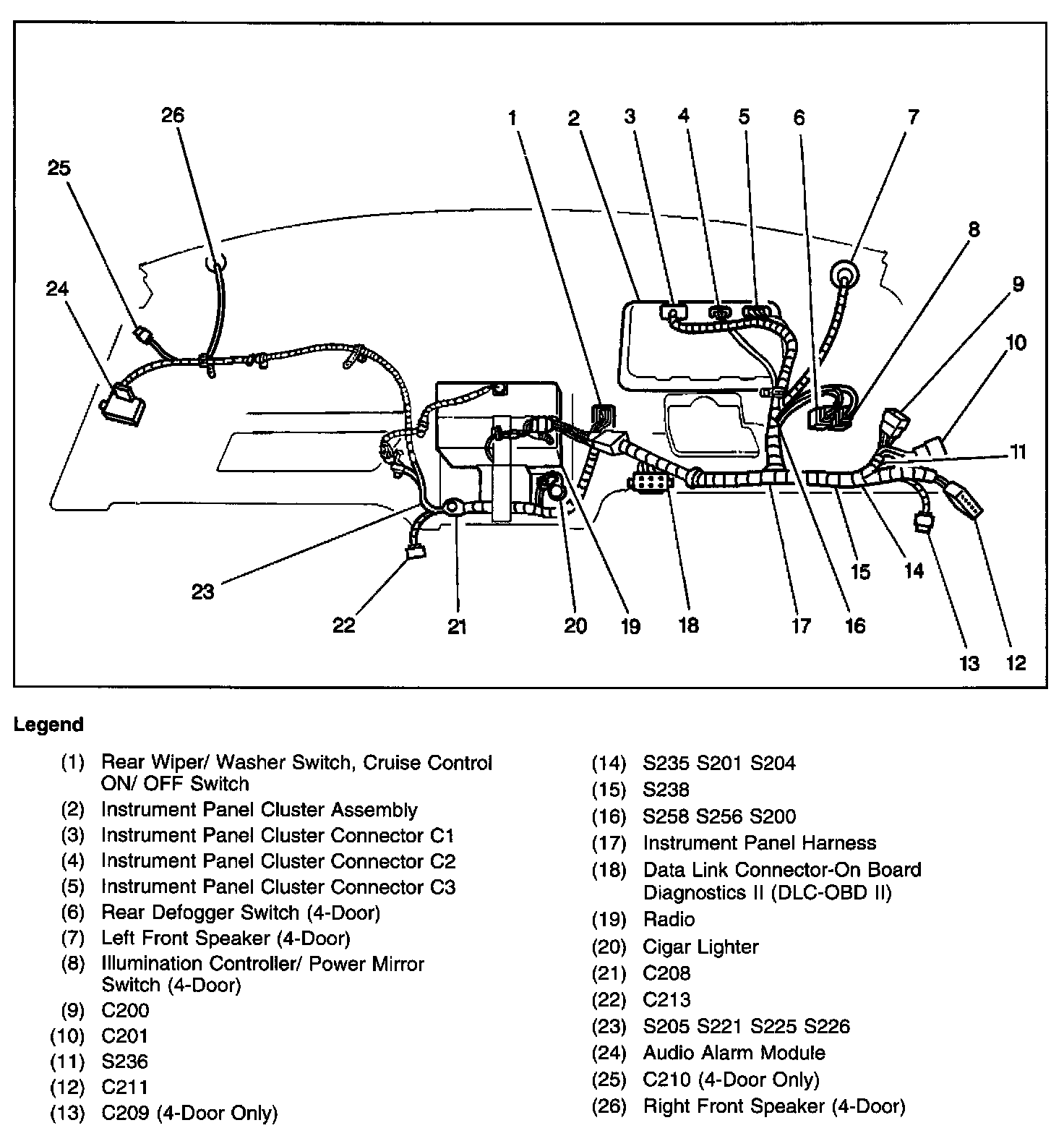

Component Locations

Instrument Panel Wiring:






LH instrument panel to the left of the steering column
