Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pins 1-37

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

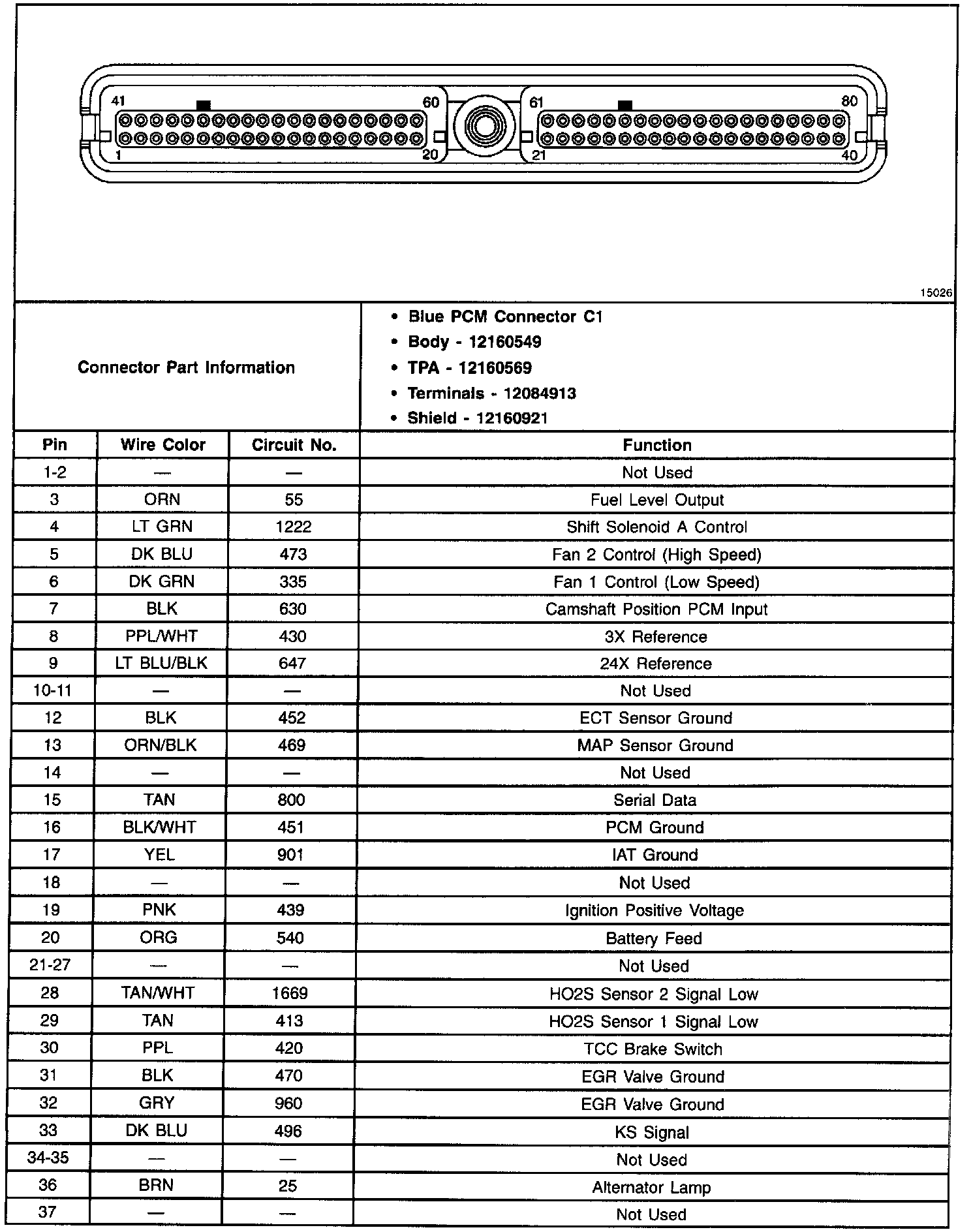

Pins 1-37
