Service Valve Locations

WARNING: This page does not describe the selected car, but rather 110 other vehicles, including the 1999 Saturn SW2, 1999 Saturn SW1, 1999 Saturn SL2, 1999 Saturn SL1, and 1999 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.

For service valve locations, see SERVICE VALVE LOCATIONS (CARS) or SERVICE VALVE LOCATIONS (TRUCKS & VANS) table.

SERVICE VALVE LOCATIONS (CARS)

Vehicle

High

Low

Chrysler Corp.

Avenger & Sebring Coupe

⁽¹⁾

⁽²⁾

300M, Concorde, Intrepid & LHS

2.7L

⁽³⁾

⁽⁴⁾

3.2L & 3.5L

⁽⁵⁾

⁽⁶⁾

Breeze, Cirrus & Stratus

⁽⁷⁾

⁽⁴⁾

Neon

⁽⁷⁾

⁽⁴⁾

Sebring Convertible

⁽⁷⁾

⁽⁴⁾

Ford Motor Co.

Continental

⁽⁹⁾

⁽¹⁰⁾

Contour, Cougar & Mystique

2.0L Engine

⁽⁷⁾

⁽¹¹⁾

2.5L Engine

⁽⁷⁾

⁽¹²⁾

Crown Victoria, Grand Marquis & Town Car

⁽⁷⁾

⁽¹³⁾

Escort & Tracer

⁽¹⁴⁾

⁽¹⁰⁾

Mustang

⁽⁷⁾

⁽¹²⁾

Sable & Taurus

⁽⁸⁾

⁽¹¹⁾

General Motors

"C" Body

⁽³⁾

⁽¹⁵⁾

"E" & "K" Bodies

⁽³⁾

⁽¹⁵⁾

"F" Body

⁽⁹⁾

⁽⁴⁾

"G" Body

⁽³⁾

⁽¹⁵⁾

"H" Body

⁽⁷⁾

⁽¹²⁾

"J" Body

⁽⁷⁾

⁽¹²⁾

"M" Body

⁽⁹⁾

⁽⁴⁾

"N" Body

⁽⁹⁾

⁽⁴⁾

"S" Body

⁽⁹⁾

⁽⁴⁾

"V" Body

⁽⁹⁾

⁽⁴⁾

"W" Body

⁽⁹⁾

⁽⁴⁾

"Y" Body

⁽³⁾

⁽¹²⁾

"Z" Body

⁽⁷⁾

⁽¹⁵⁾

⁽¹⁾	On high-side liquid line, between receiver-drier and evaporator.

⁽²⁾	On low-side hose between evaporator and compressor.

⁽³⁾	On high-side liquid line.

⁽⁴⁾	On low-side suction line.

⁽⁵⁾	On top of compressor manifold.

⁽⁶⁾	On compressor manifold, closest to compressor clutch.

⁽⁷⁾	On high-side line, between compressor and condenser.

⁽⁸⁾	On extension of high-side line, between condenser and evaporator.

⁽⁹⁾	On high-side line (or extension), near condenser.

⁽¹⁰⁾	On low-side line (or extension), near accumulator.

⁽¹¹⁾	On low-side line, between evaporator and accumulator/receiver-drier.

⁽¹²⁾	On low-side line, between acumulator/receiver-dryer and compressor.

⁽¹³⁾	On acumulator/receiver-drier.

⁽¹⁴⁾	On high-side line, near condenser.

⁽¹⁵⁾	On low-side line, between orifice tube and evaporator.

SERVICE VALVE LOCATIONS (TRUCKS & VANS)

Vehicle

High

Low

Chrysler Corp.

Caravan, Town & Country, & Voyager

⁽¹⁾

⁽²⁾

Dakota

⁽³⁾

⁽⁴⁾

Durango

⁽³⁾

⁽⁴⁾

Ram Pickup

⁽³⁾

⁽⁵⁾

Ram Van/Wagon

⁽⁶⁾

⁽⁷⁾

Ford Motor Co.

"E" Series

⁽⁴⁾

⁽⁸⁾

Explorer, Mountaineer & Ranger

⁽⁶⁾

⁽⁹⁾

F150, F250LD, Expedition & Navigator

⁽⁶⁾

⁽⁹⁾

F250HD, F350 & Super Duty

⁽⁶⁾

⁽⁵⁾

Villager

⁽¹⁰⁾

⁽⁵⁾

Windstar

⁽¹¹⁾

⁽⁹⁾

General Motors

"C" & "K" Series

⁽⁴⁾

⁽⁹⁾

"G" Series

⁽¹²⁾

⁽⁹⁾

"J" Series

⁽⁹⁾

⁽¹³⁾

"L" & "M" Series

⁽¹²⁾

⁽⁵⁾

"P" Series

⁽¹⁴⁾

⁽¹⁵⁾

"S" & "T" Series

⁽¹⁶⁾

⁽⁹⁾

"U" Series

⁽¹⁾

⁽⁵⁾

Jeep

Cherokee

⁽⁶⁾

⁽¹⁷⁾

Grand Cherokee

⁽¹⁸⁾

⁽¹⁴⁾

Wrangler

⁽⁴⁾

⁽¹⁴⁾

⁽¹⁾	On high-side line, near right frame rail. See Fig 1.

⁽²⁾	On low-side line, near compressor. See Fig 1.

⁽³⁾	On high-side line, between condenser and evaporator, near front of engine compartment.

⁽⁴⁾	On compressor manifold.

⁽⁵⁾	On low-side line, near accumulator.

⁽⁶⁾	On high-side line, between compressor and condenser, near front of engine compartment.

⁽⁷⁾	On low-side line extension, near receiver-drier, at front of engine compartment.

⁽⁸⁾	On low-side line from accumulator, near windshield washer reservoir.

⁽⁹⁾	On accumulator/receiver-drier.

⁽¹⁰⁾	On high-side line extension from compressor.

⁽¹¹⁾	On high-side line, between compressor and condenser, near accumulator. See Fig 2.

⁽¹²⁾	On high-side line between evaporator and condenser, near evaporator.

⁽¹³⁾	On low-side (suction) line, near compressor.

⁽¹⁴⁾	On high-side inlet line, at evaporator.

⁽¹⁵⁾	On low-side outlet line, at evaporator.

⁽¹⁶⁾	On high-side line.

⁽¹⁷⁾	On low-side (suction) line, between accumulator outlet and compressor.

⁽¹⁸⁾	On high-side (liquid) line, near evaporator inlet, at rear of engine compartment.

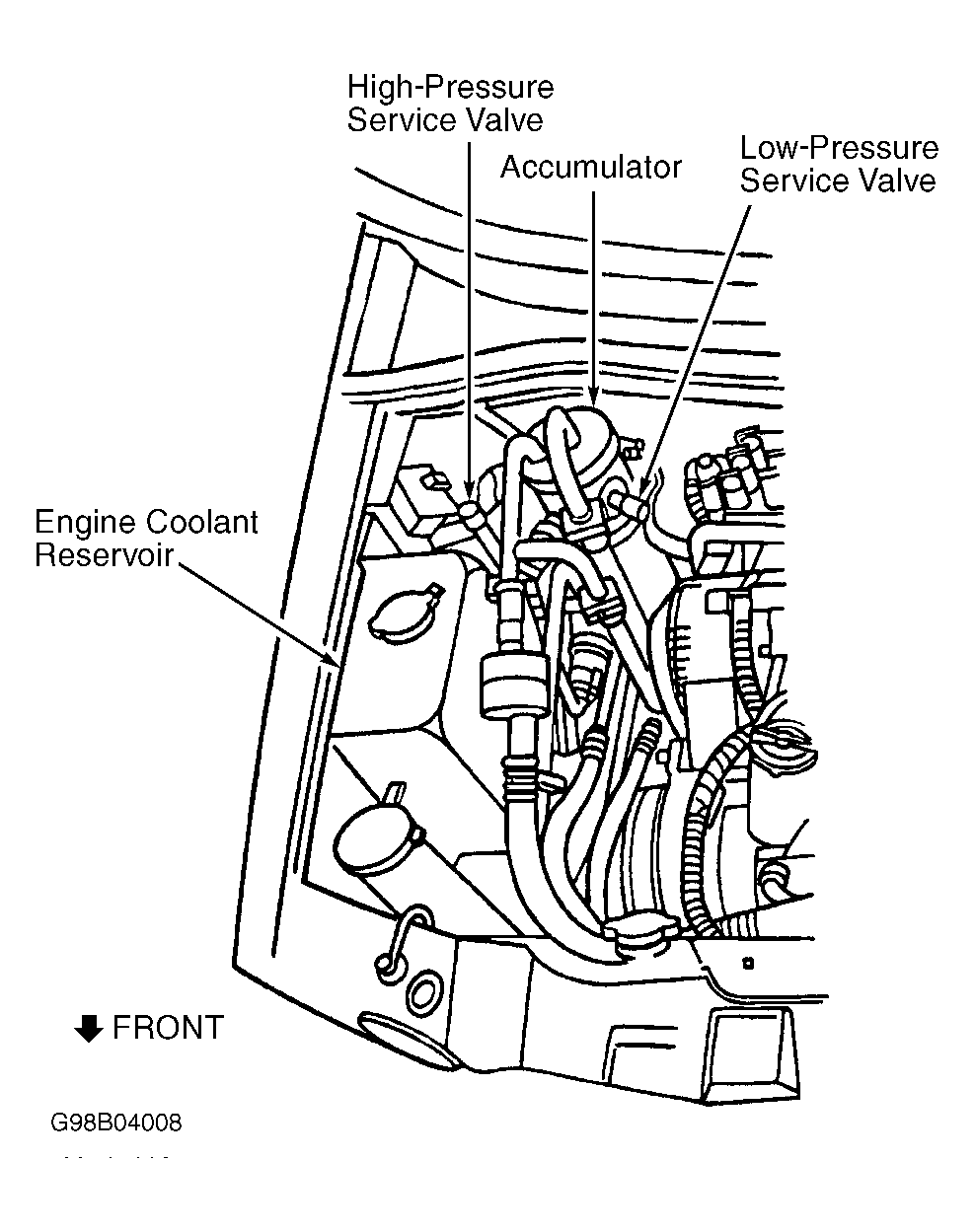

Fig 1: Locating Service Valves (Caravan, Town & Country, & Voyager)

Courtesy of CHRYSLER CORP.

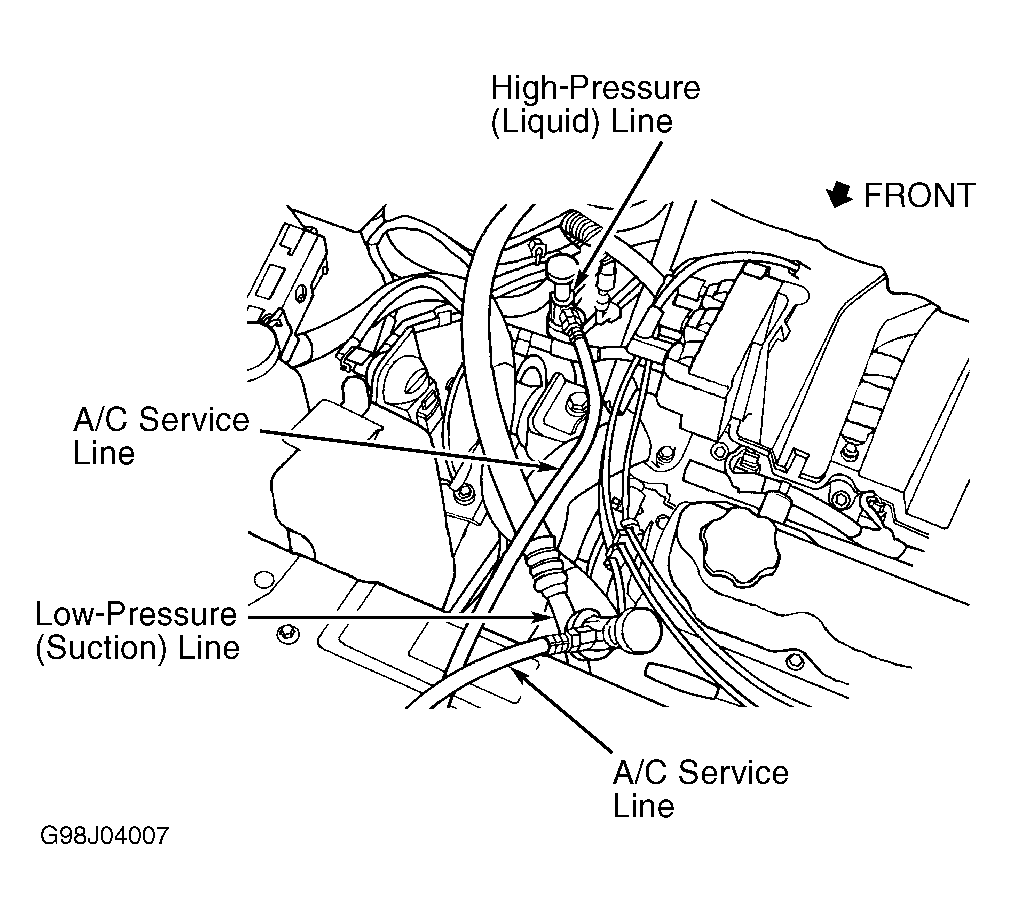

Fig 2: Locating Service Valves (Windstar)

Courtesy of FORD MOTOR CO.
