Immobilizer Connector End Views
Immobilizer Connector End Views

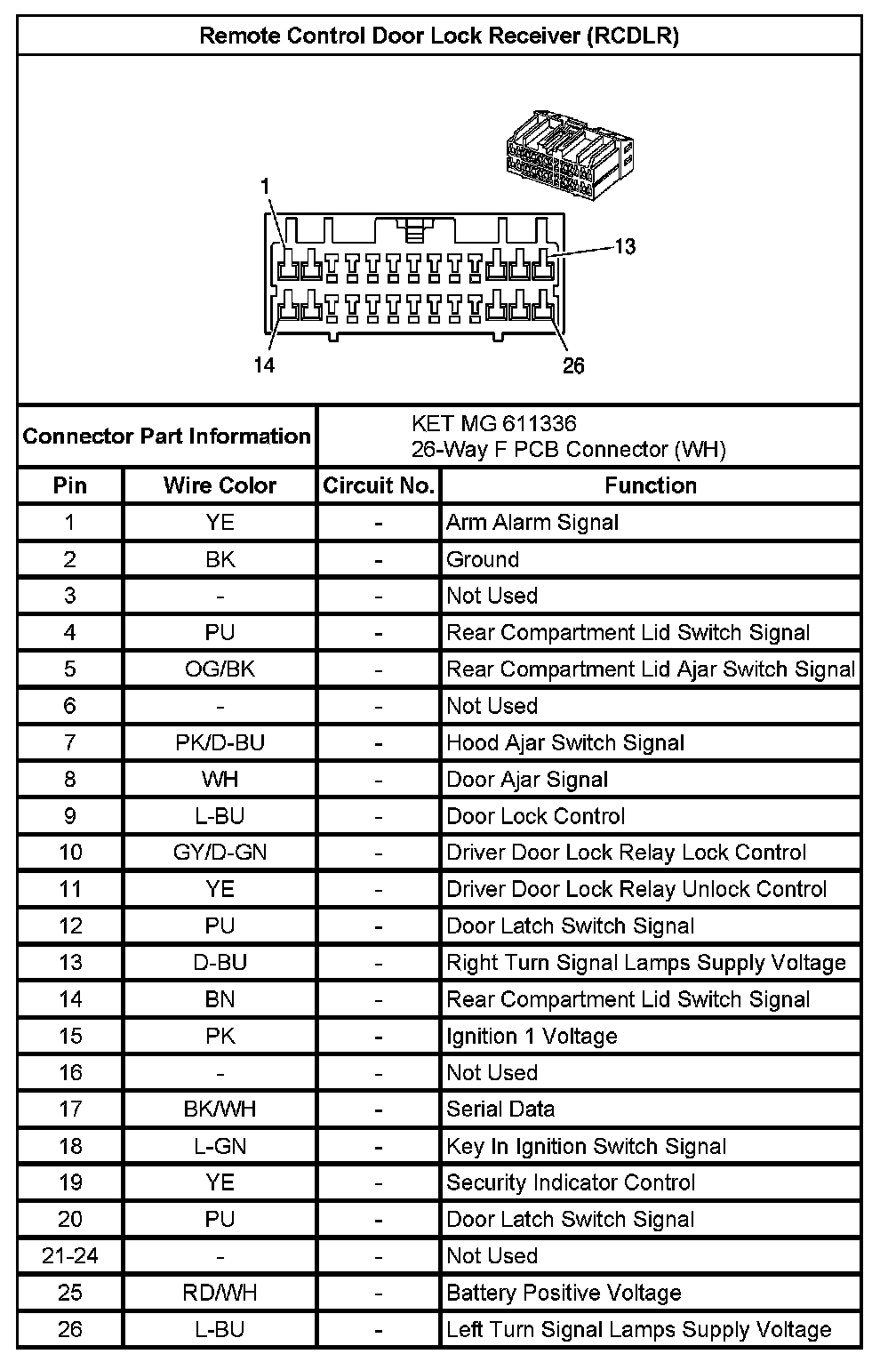

Remote Control Door Lock Receiver (RCDLR)
