Disc Brake System: Service and Repair

Front Brake Shield Replacement

Removal Procedure




1. Remove the rotor.

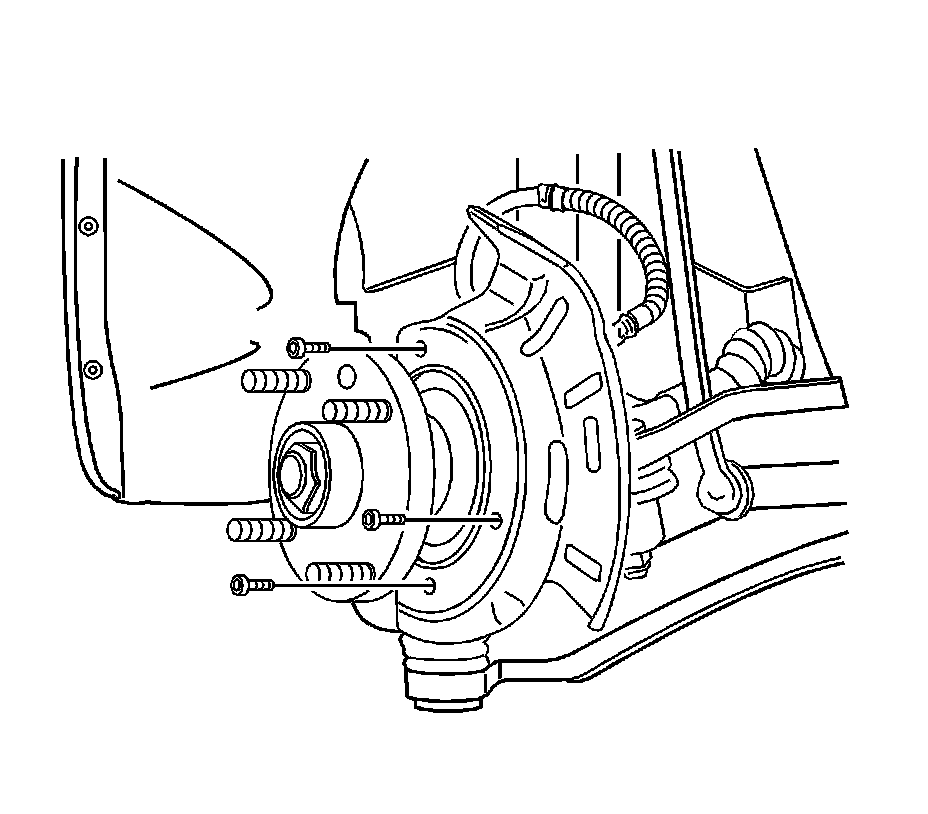

2. Remove the screws for the splash shield from the steering knuckle.
3. Remove the splash shield.

Installation Procedure




1. Install the splash shield.

Notice: Refer to Fastener Notice.

2. Secure the splash shield to the steering knuckle with the screws.

Tighten the splash shield-to-steering knuckle screws to 4 N.m (35 lb in).

3. Install the rotor.
