SIR Connector End Views (Hatchback)



SIR Connector End Views (Hatchback)

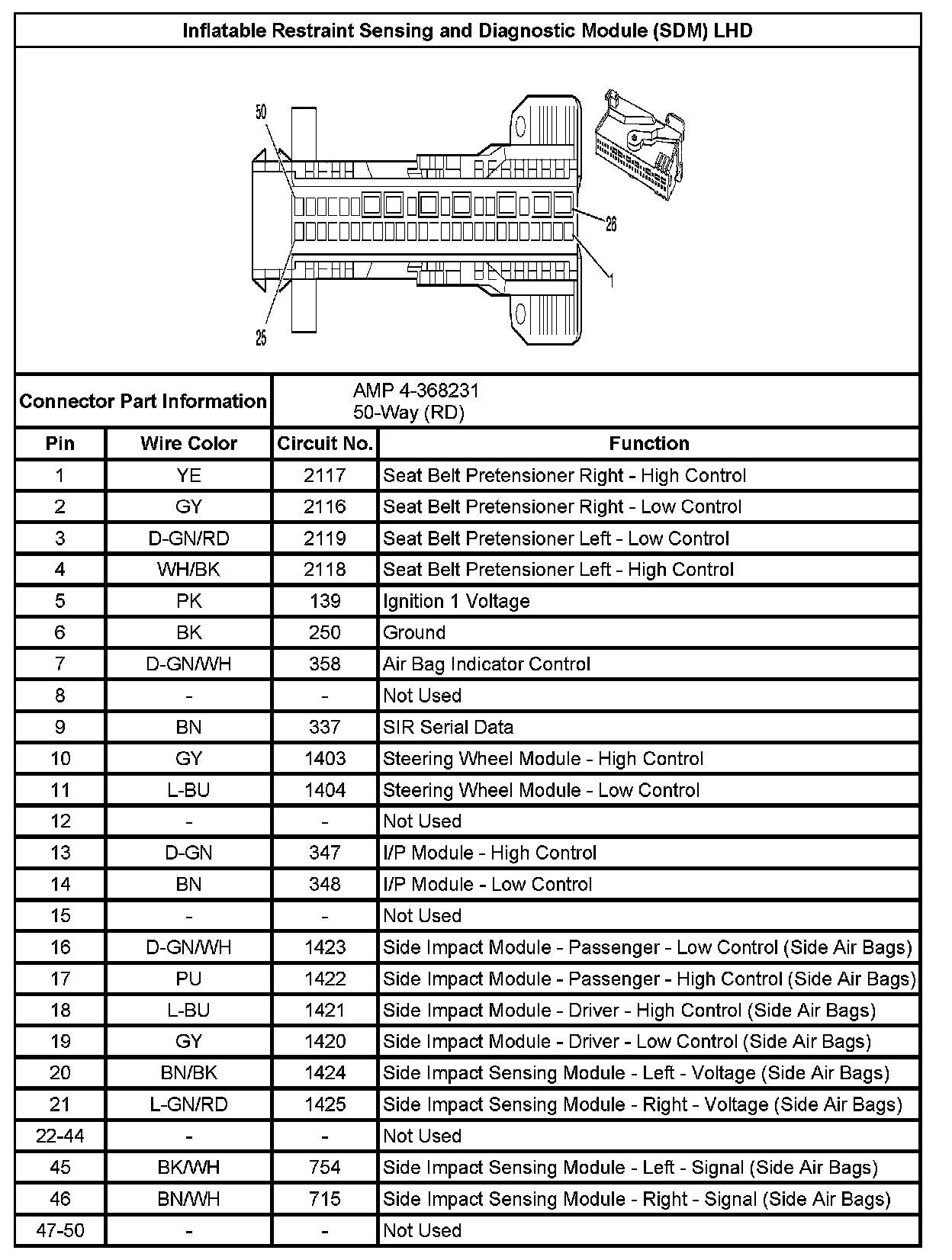

Inflatable Restraint Sensing and Diagnostic Module (SDM) LHD

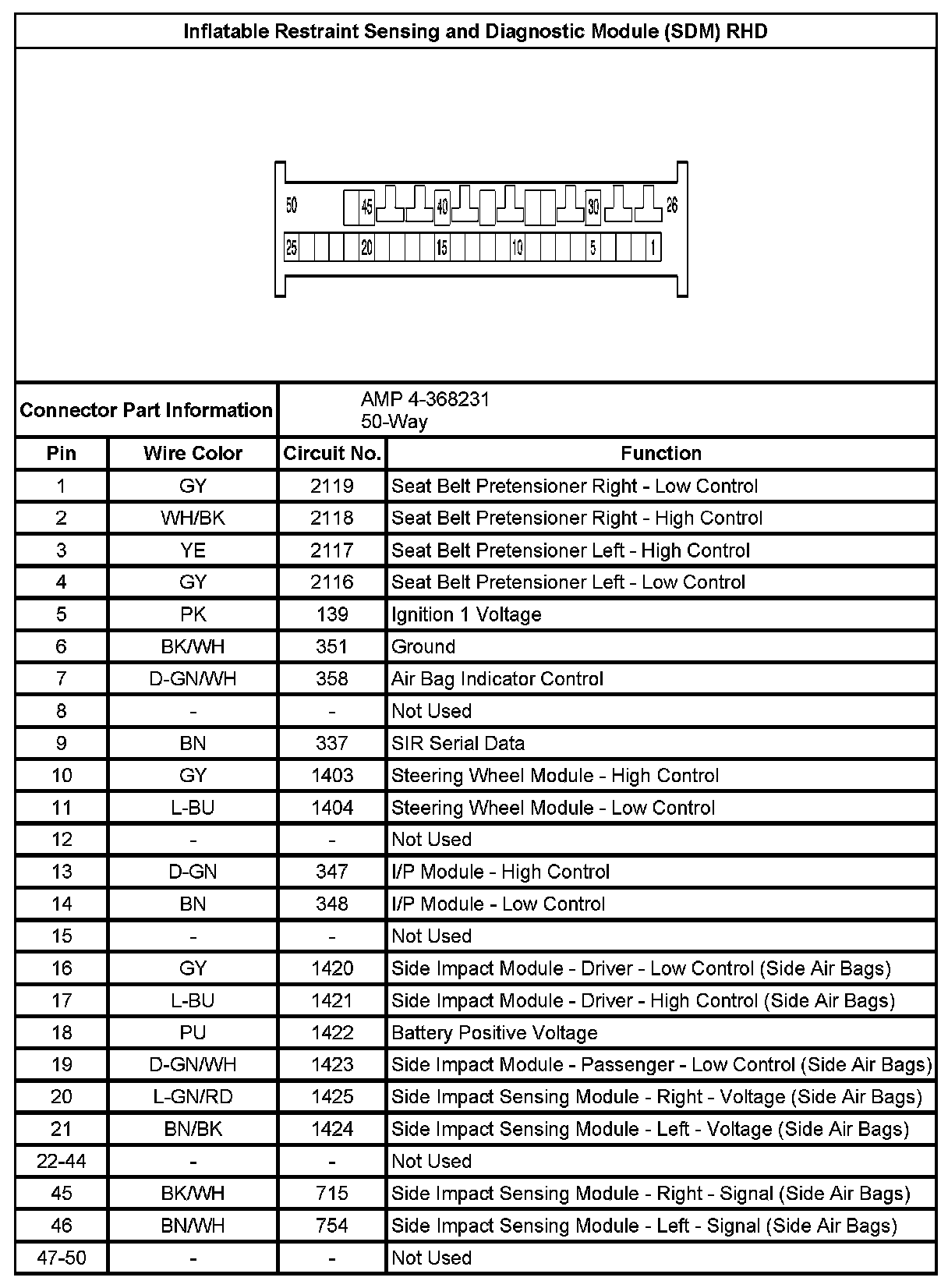

Inflatable Restraint Sensing and Diagnostic Module (SDM) RHD

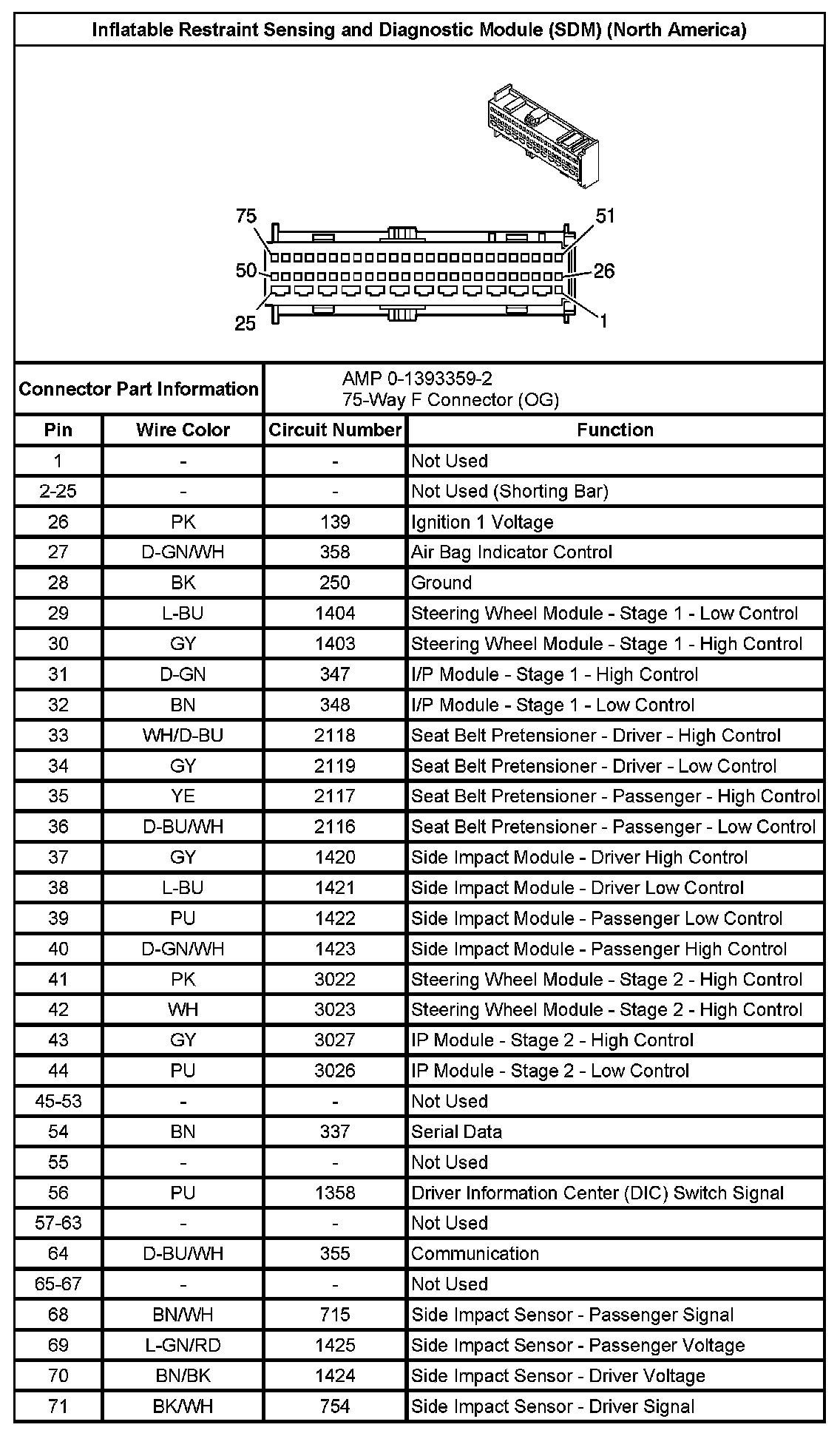

Inflatable Restraint Sensing and Diagnostic Module (SDM) (North America)
