SIR Connector End Views (Notchback)



SIR Connector End Views (Notchback)

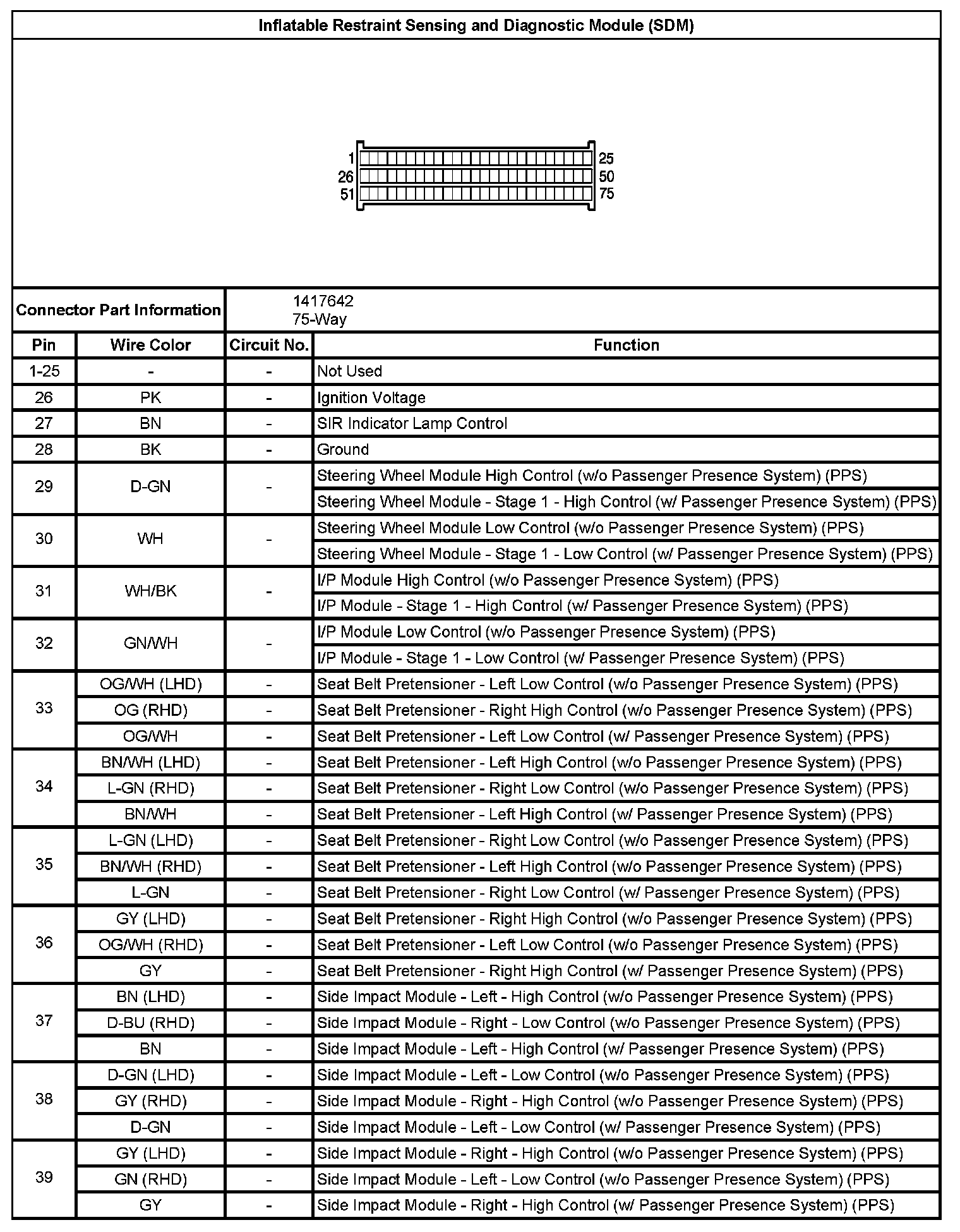

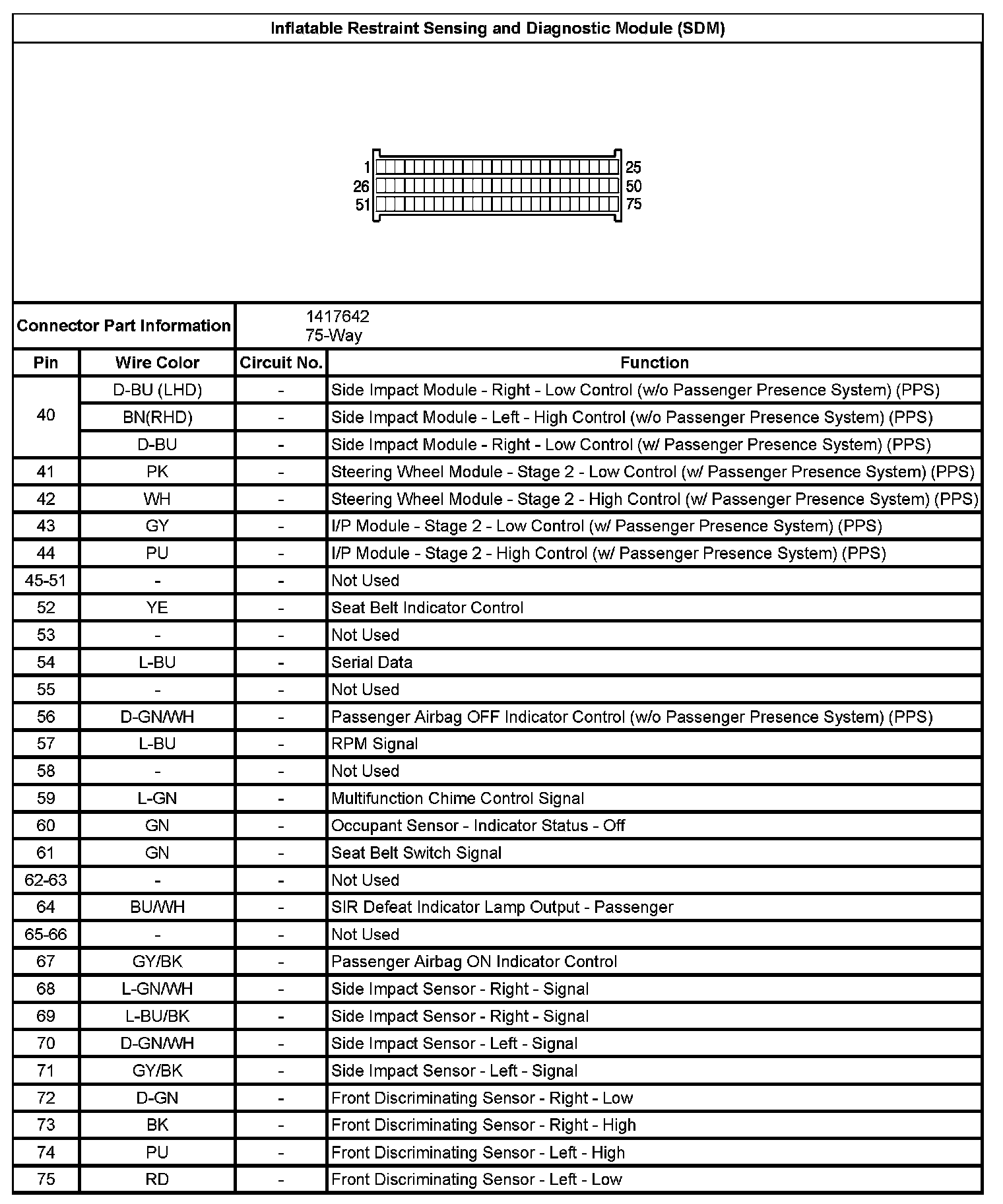

Inflatable Restraint Sensing and Diagnostic Module (SDM)
