Theft Deterrent System Connector End Views (Notchback)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Theft Deterrent System Connector End Views (Notchback)
Theft Deterrent System Connector End Views (Notchback)

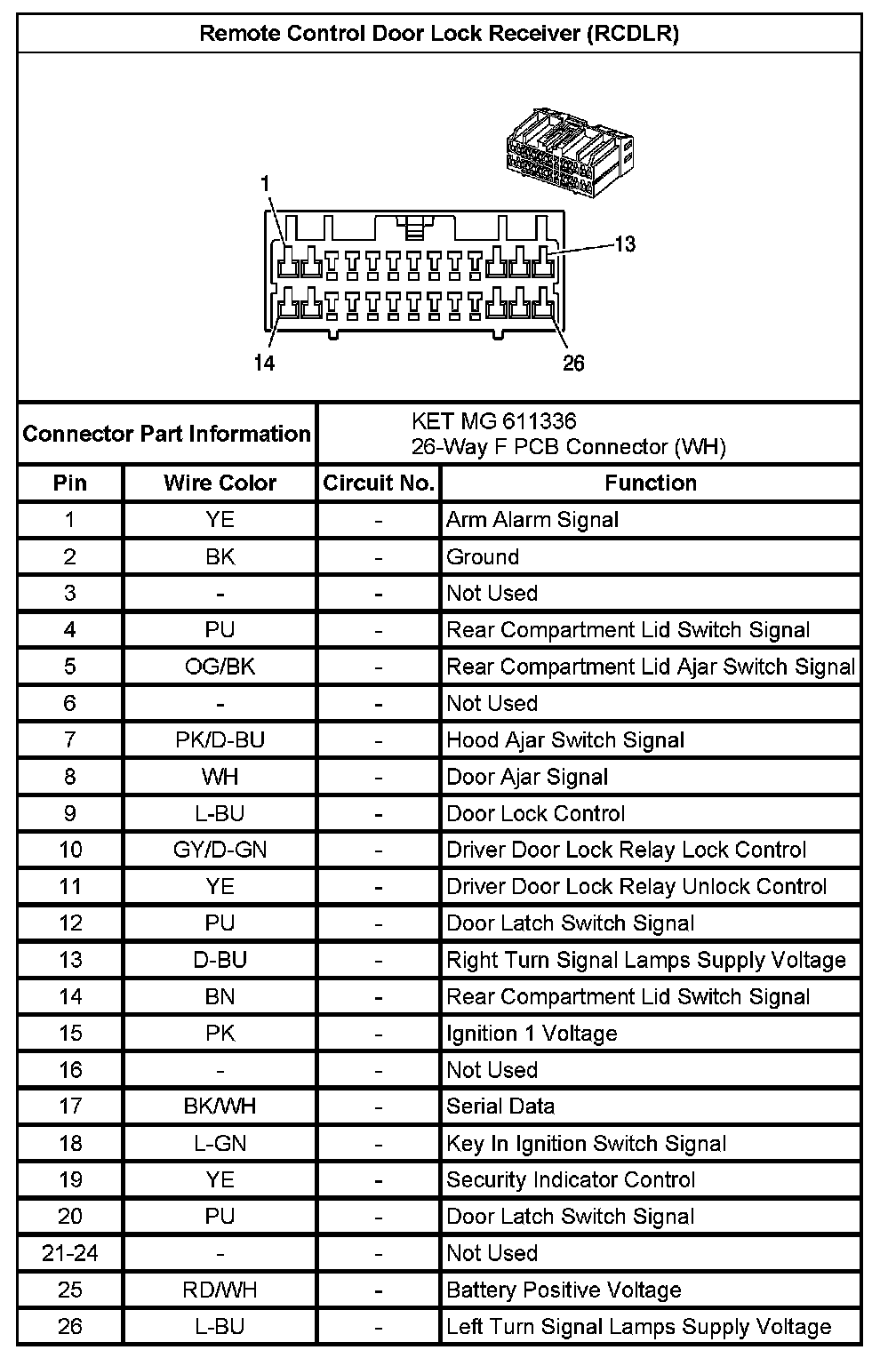

Remote Control Door Lock Receiver (RCDLR)
