Front Drive Axle Disassembled Views (Automatic)

Front Drive Axle Disassembled Views (Automatic)

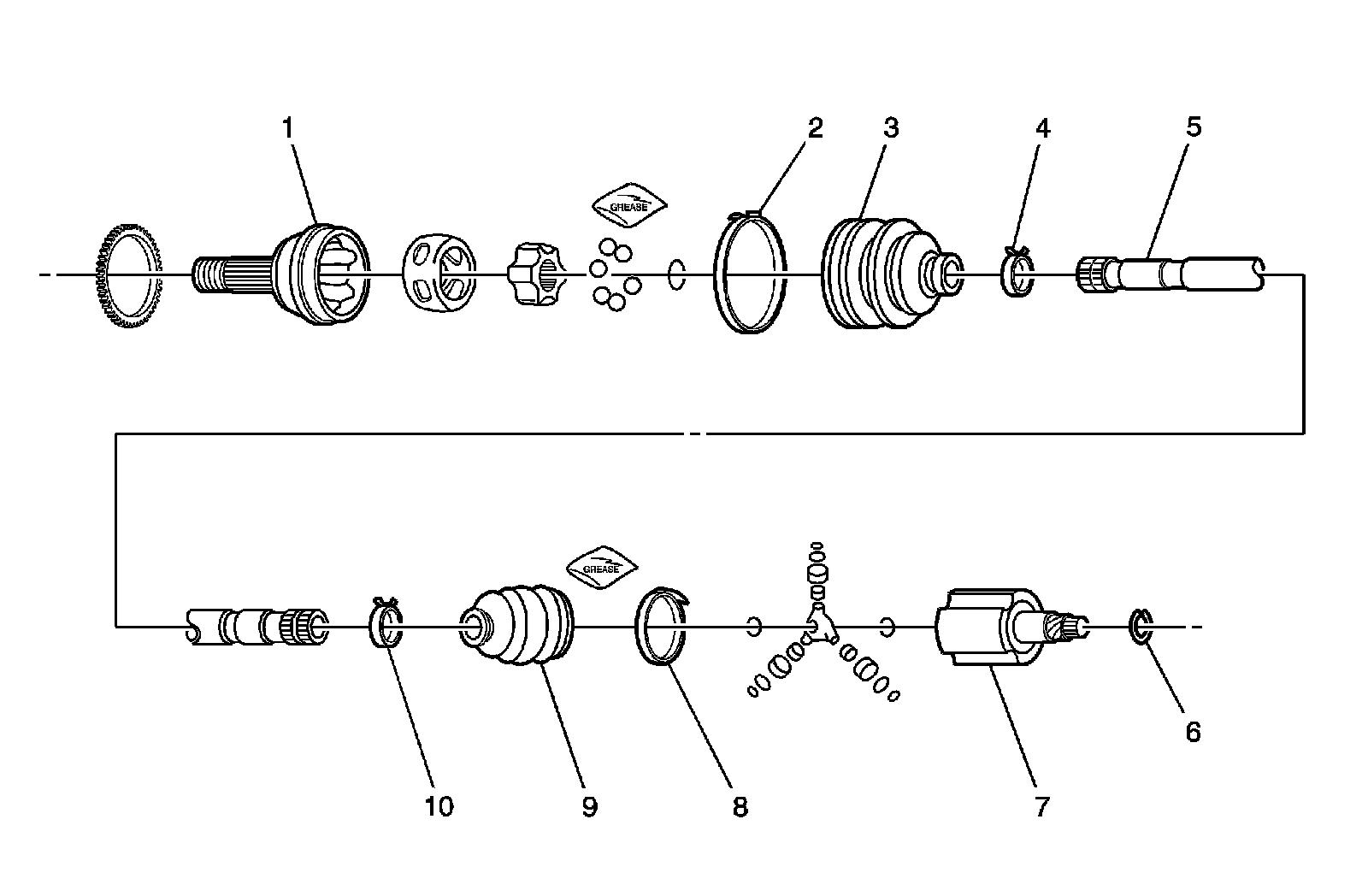

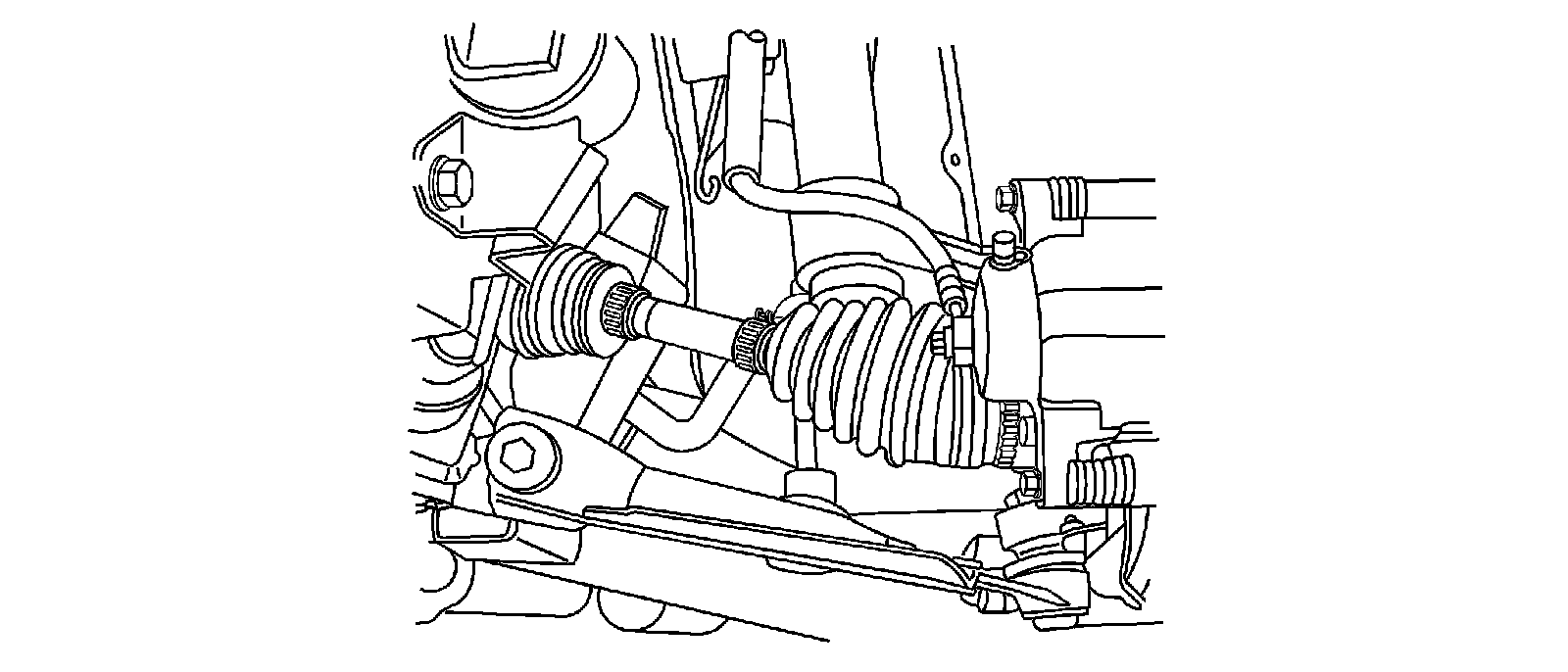

Front Drive Axle:

(Automatic):

1 - C/V Joint
2 - Seal Retaining Clamp
3 - Drive Axle Outboard Seal
4 - Seal Retaining Clamp
5 - Axle Shaft
6 - Snap Ring
7 - Tripot Housing
8 - Seal Retaining Clamp
9 - Drive Axle Inboard Seal
10 - Seal Retaining Clamp
