Timing Component Alignment Marks: Locations

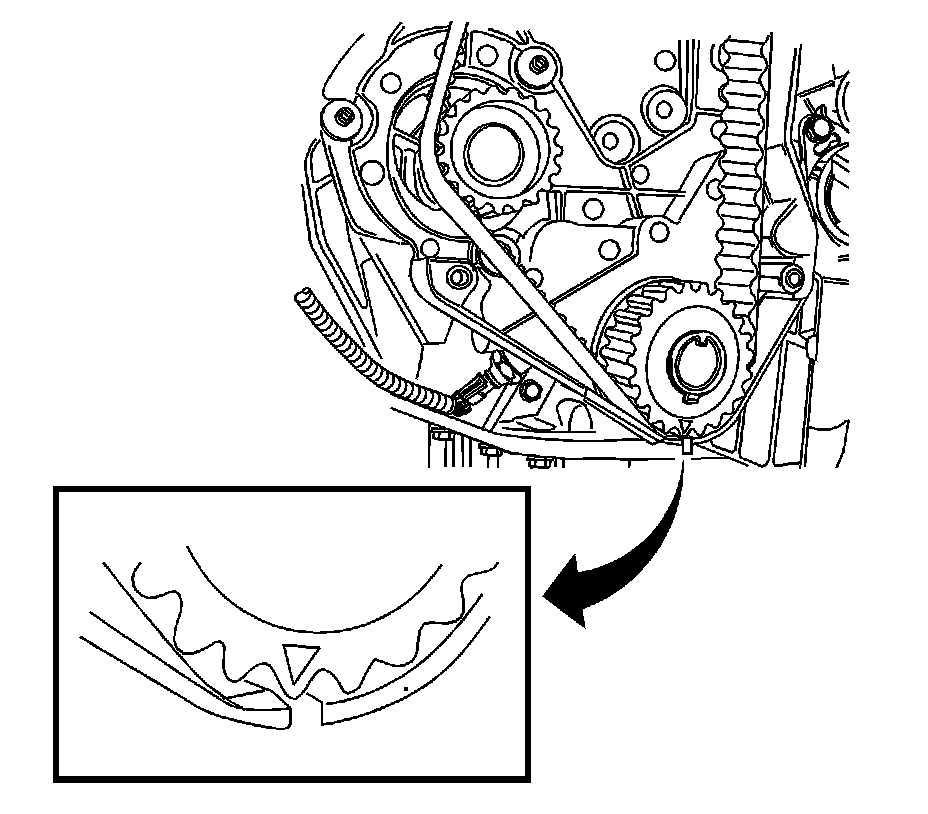

^ Align the timing mark on the crankshaft gear to the timing mark on the bottom of the rear timing belt cover.





Important: Ensure that the exhaust camshaft gear dowel pin is approximately in the 11 o'clock position.

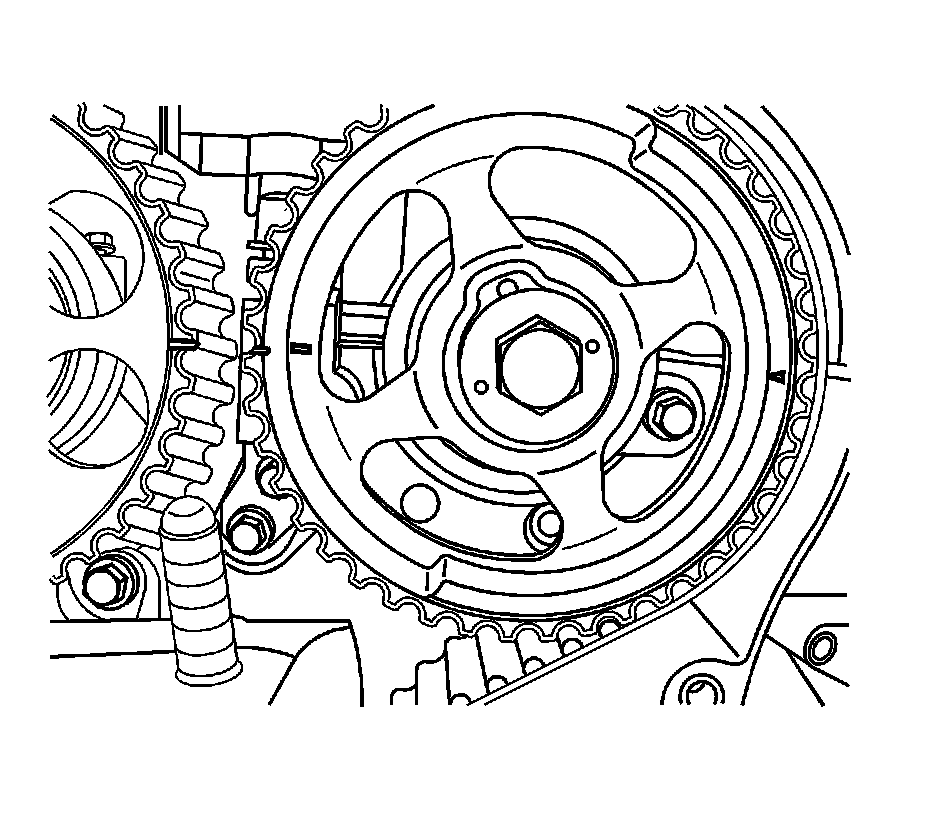

^ Align the timing marks on the camshaft gears.
