Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the engine cover bolts and the nuts.
3. Remove the engine cover.

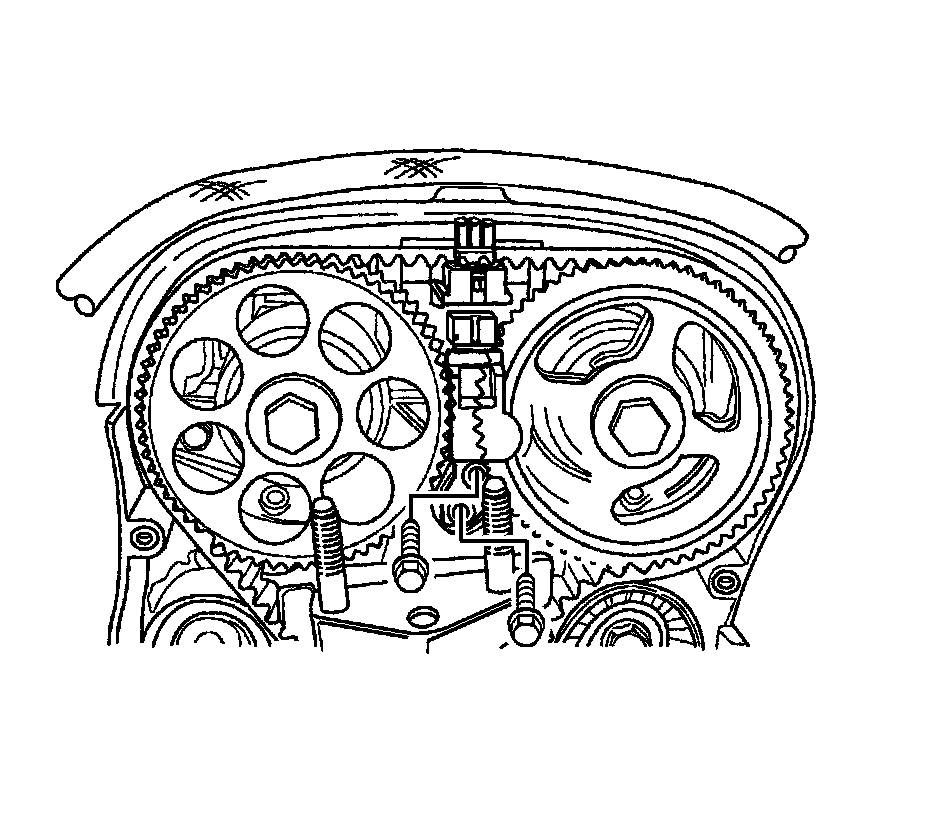

4. Disconnect the camshaft position (CMP) sensor electrical connector.
5. Remove the timing belt front cover.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the CMP sensor and bolt.

Tighten the CMP sensor bolts to 7 N.m (62 lb in).




2. Install the timing bolt front cover.
3. Connect the CMP sensor electrical connector.
4. Install the engine cover.
5. Connect the negative battery cable.
