EGR Valve: Service and Repair

Exhaust Gas Recirculation Valve Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.

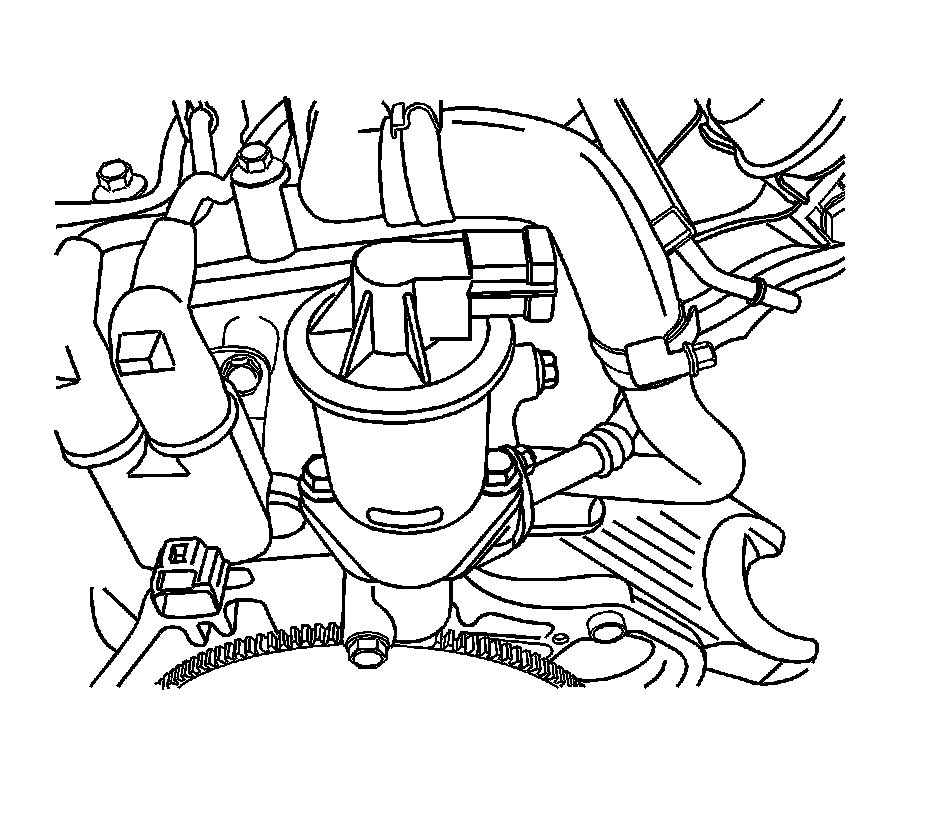

2. Disconnect the electrical exhaust gas recirculation (EGR) valve electrical connector.
3. Remove the EGR valve retaining bolts.
4. Remove the EGR valve.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the EGR valve with the bolts.

Tighten the electrical EGR valve retaining bolts to 30 N.m (22 lb ft).

2. Connect the EGR valve electrical connector.
3. Connect the negative battery cable.
