Audible Warning Device Control Module: Service and Repair

Audio Alarm Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.

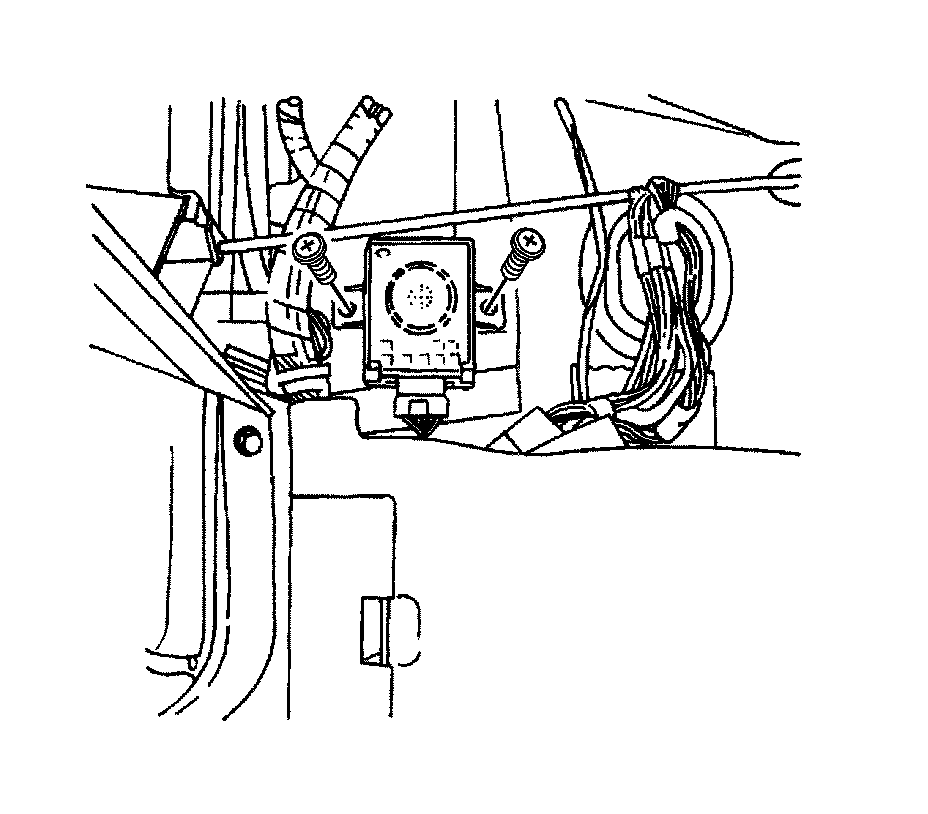

2. Remove the screws and the chime module.
3. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Notice: Refer to Fastener Notice.

2. Install the chime module with the screws.

Tighten the chime module screws to 3.5 N.m (31 lb in).

3. Connect the negative battery cable.
