SIR Component Views (Hatchback)



SIR Component Views (Hatchback)

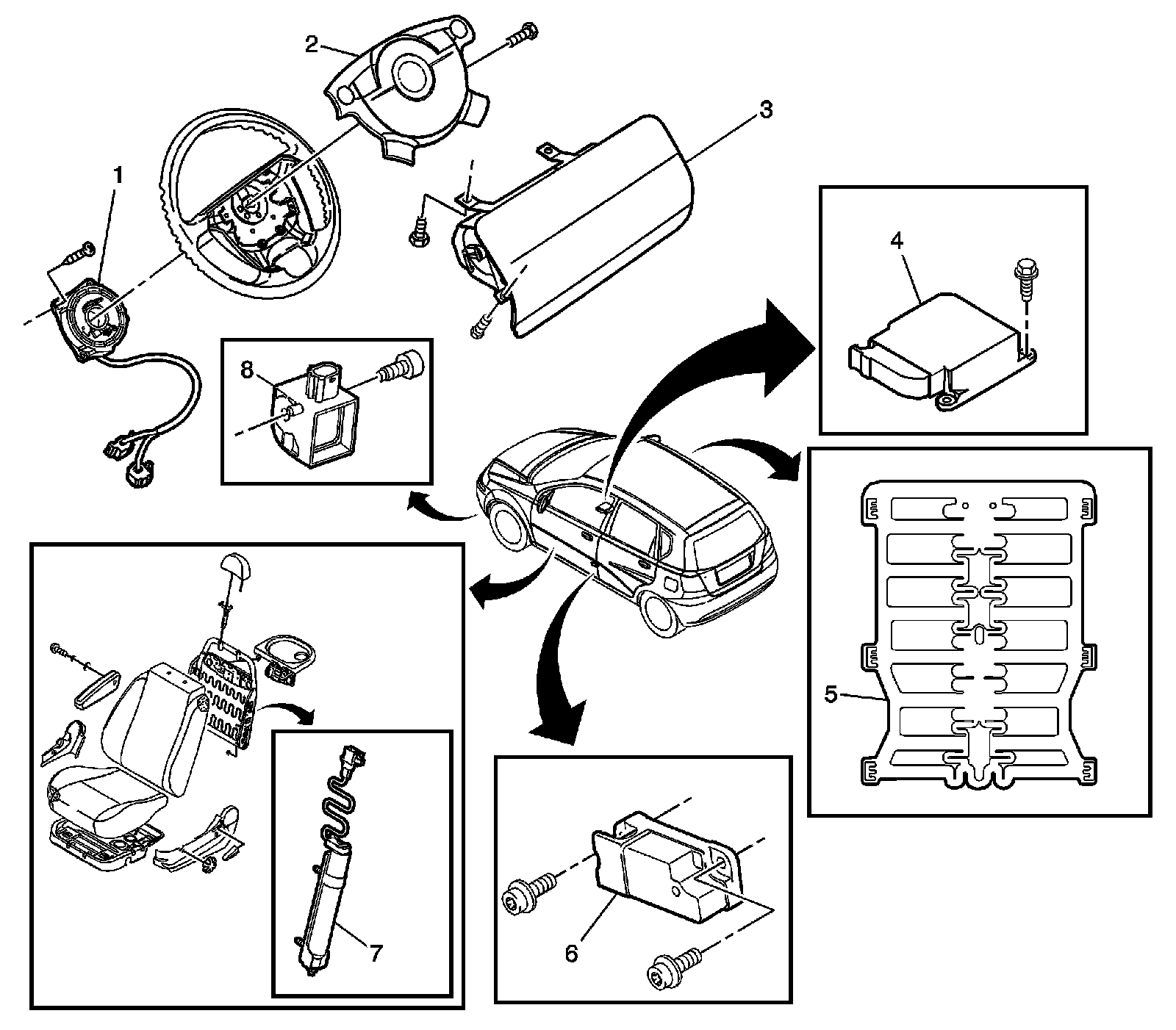

North America Vehicles




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint I/P Module
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Occupant Classification (OC) Sensor
6 - Inflatable Restraint Side Impact Sensor (Left Hand Shown, Right Side Similar)
7 - Inflatable Restraint Side Impact Module (Left Side Shown, Right Side Similar)
8 - Inflatable Restraint Front End Sensor (Left Hand Shown, Right Side Similar)

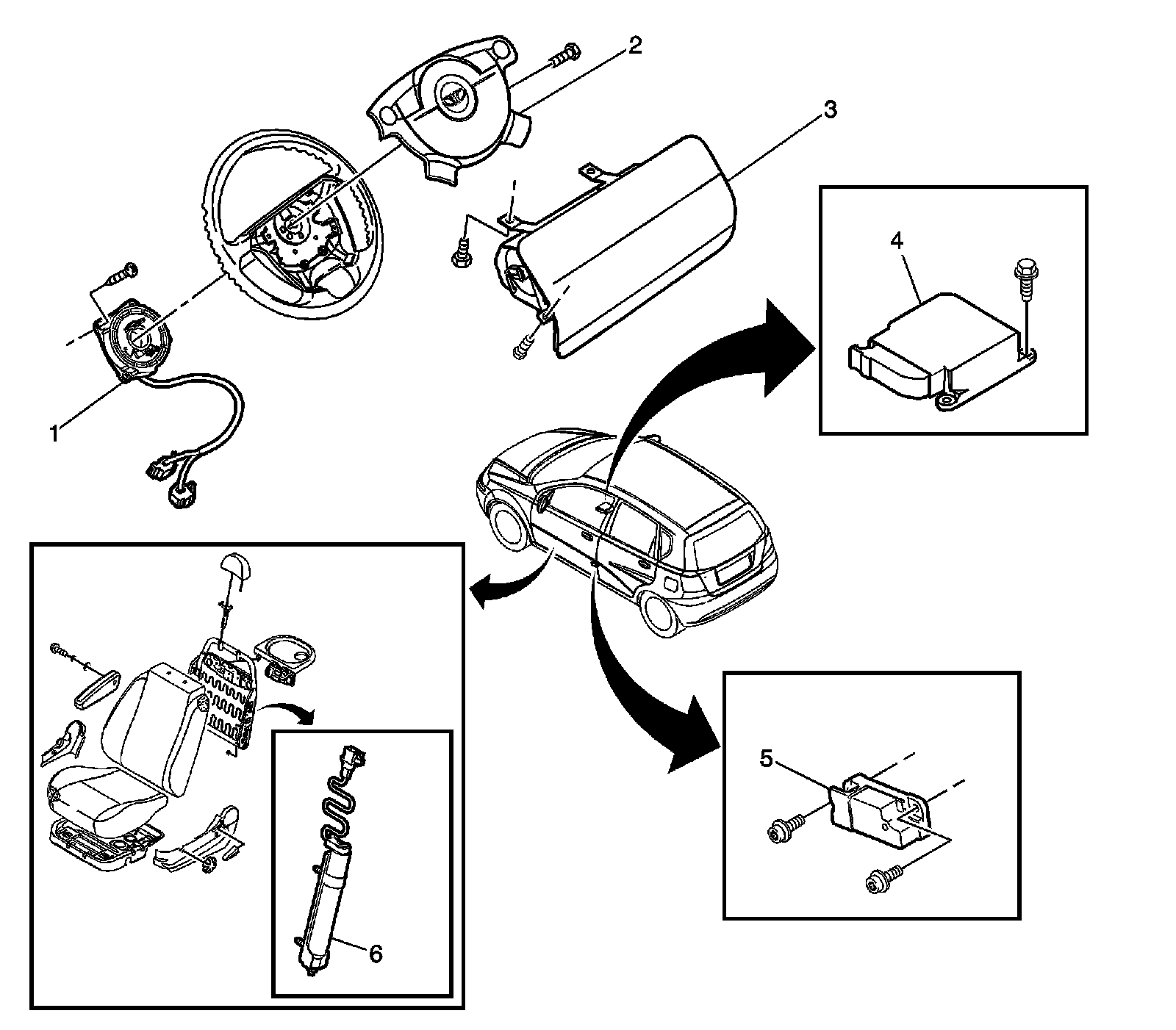

Except North America Vehicles




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint I/P Module
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Inflatable Restraint Side Impact Sensor - Except North America Models (Left Hand Shown, Right Side Similar)
6 - Inflatable Restraint Side Impact Module - Except North America Models (Left Side Shown, Right Side Similar)
