SIR Component Views (Notchback)

SIR Component Views (Notchback)

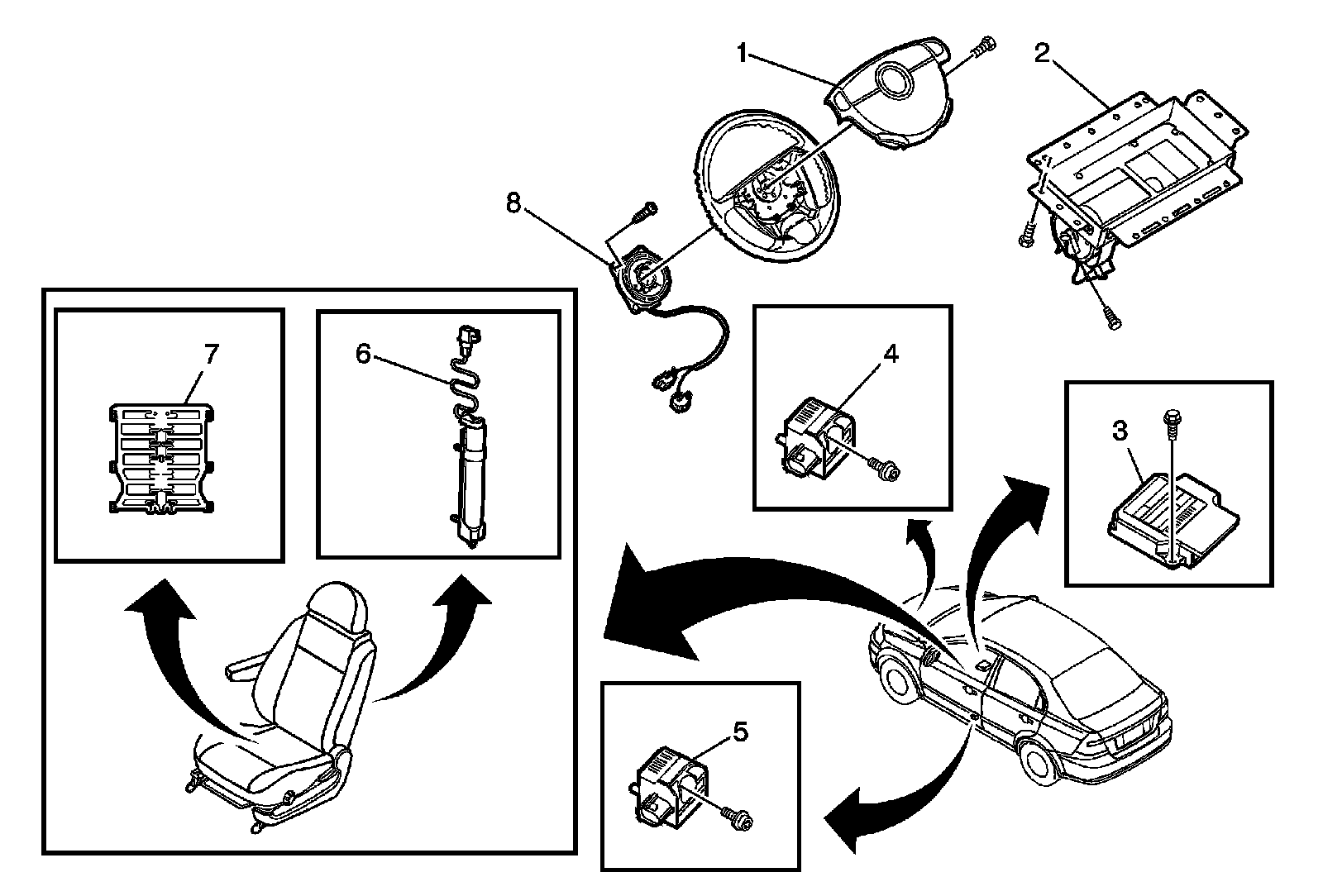

North America Vehicles




1 - Inflatable Restraint Steering Wheel Module
2 - Inflatable Restraint I/P Module
3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
4 - Inflatable Restraint Front End Sensor (Left Hand Shown, Right Side Similar)
5 - Inflatable Restraint Side Impact Sensor (Left Hand Shown, Right Side Similar)
6 - Inflatable Restraint Side Impact Module (Left Side Shown, Right Side Similar)
7 - Occupant Classification (OC) Sensor
8 - Inflatable Restraint Steering Wheel Module Coil

Except North America Vehicles




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint I/P Module
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Passenger Air Bag Disable Switch
6 - Inflatable Restraint Side Impact Sensor - Except North America Models (Left Hand Shown, Right Side Similar)
7 - Inflatable Restraint Side Impact Module - Except North America Models (Left Side Shown, Right Side Similar)
