Engine Control Module: Locations



Engine Controls Component Views

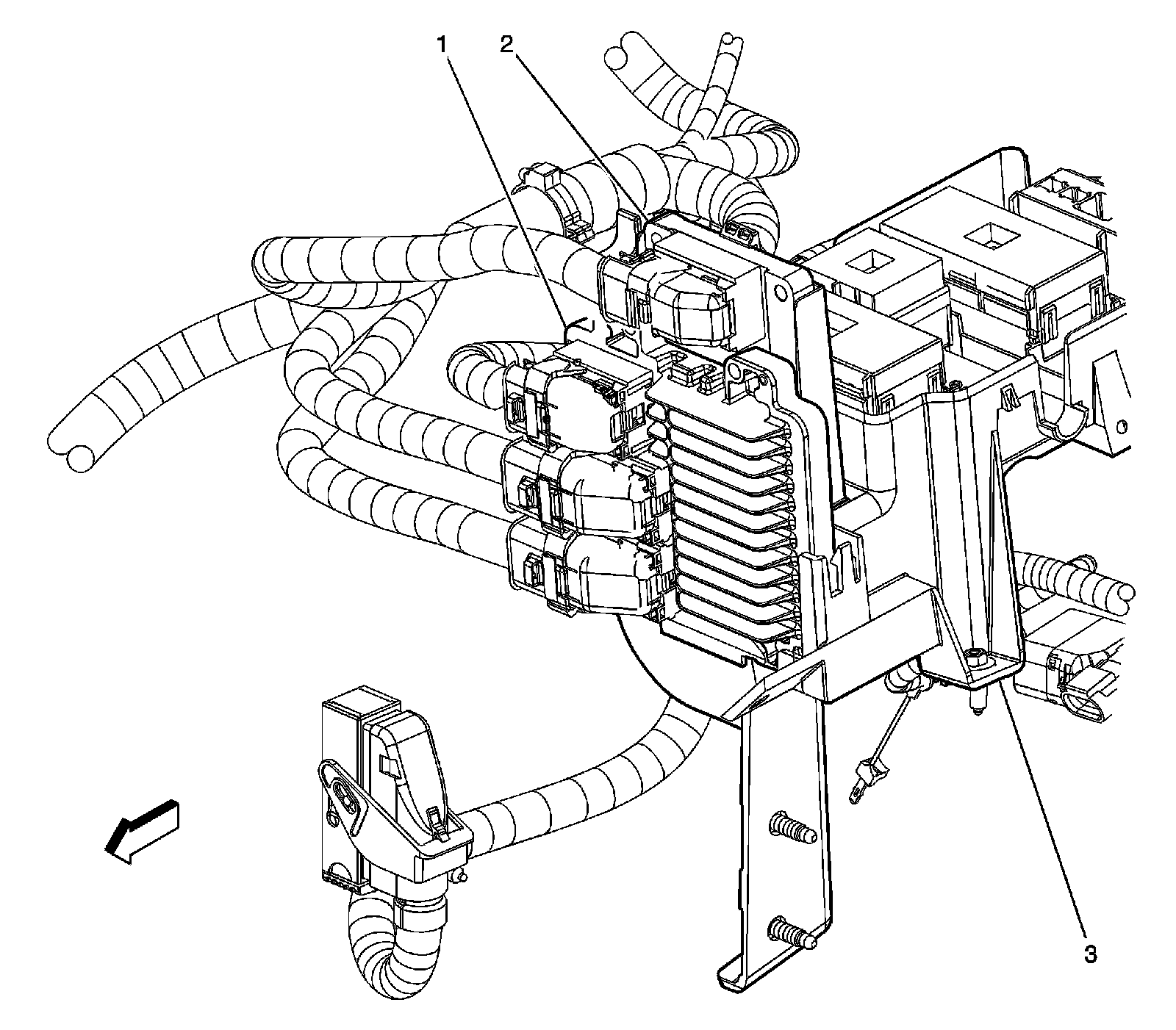

Engine and Transmission Modules (LSJ)




1 - Powertrain Control Module (PCM)
2 - Transmission Control Module (TCM)
3 - Fuse Block - Underhood Bracket
