Transmission Fluid Checking Procedure



Transmission Fluid Checking

Transmission Fluid Check:





The oil level control plug (65) is located on the torque converter side of the transmission.

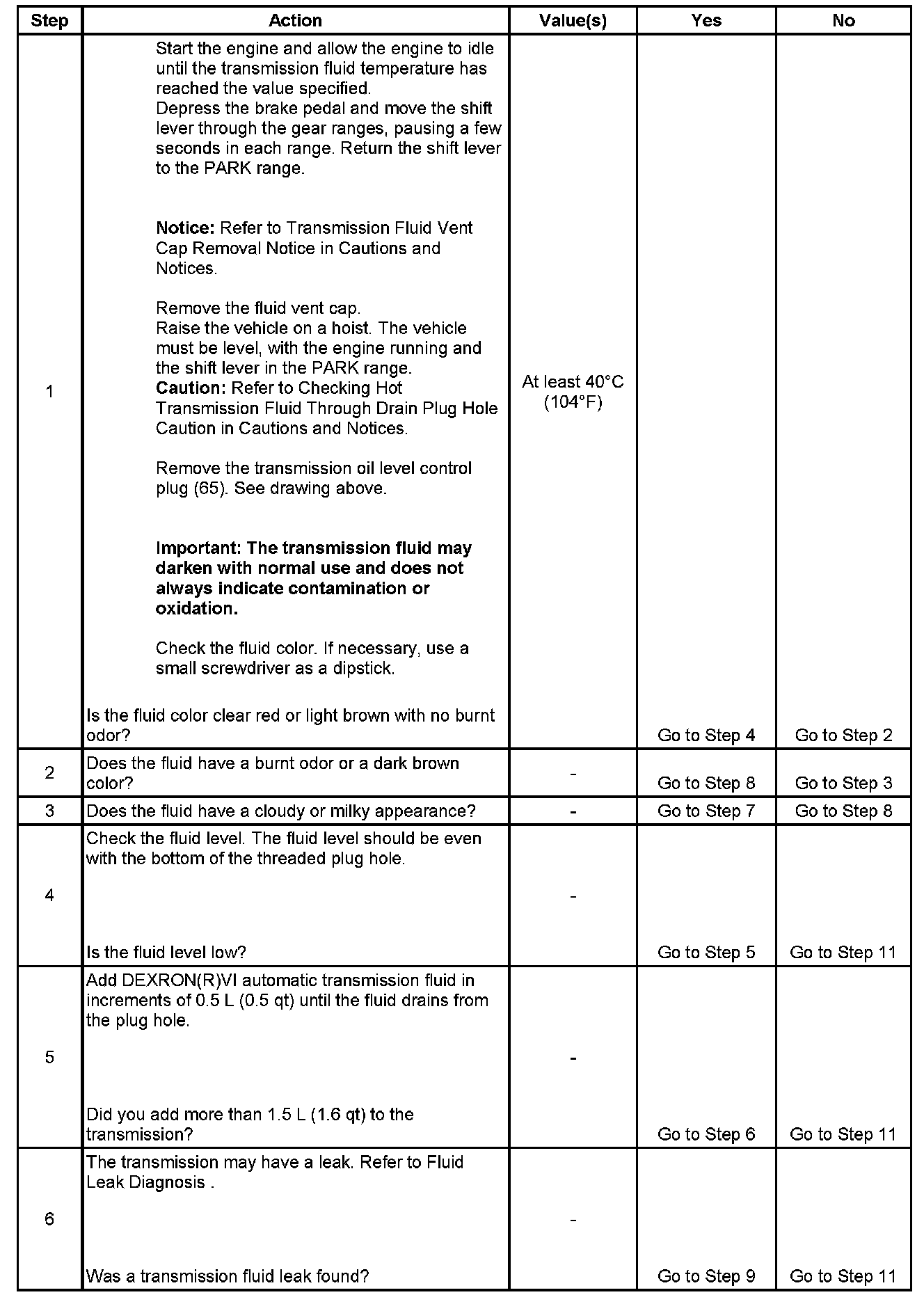

Step 1 - Step 6:




Step 7 - Step 8:
