Power Seat Motor

Lumbar Pump Motor - Driver (With RPO Code AR9):



Lumbar Pump Motor - Passenger (With RPO Code AR9):



Recliner Motor - Driver Seat:

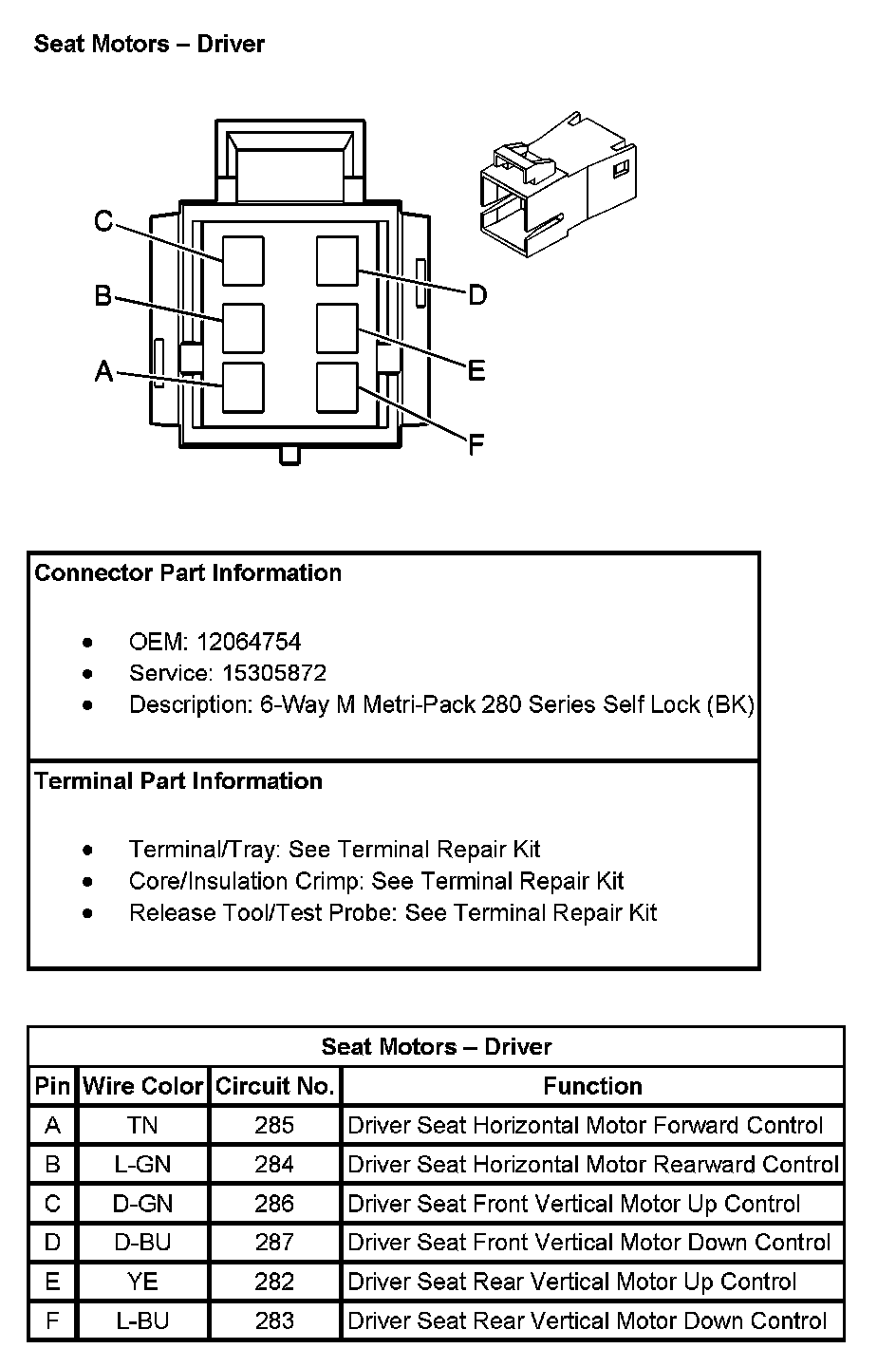

Seat Motors - Driver:

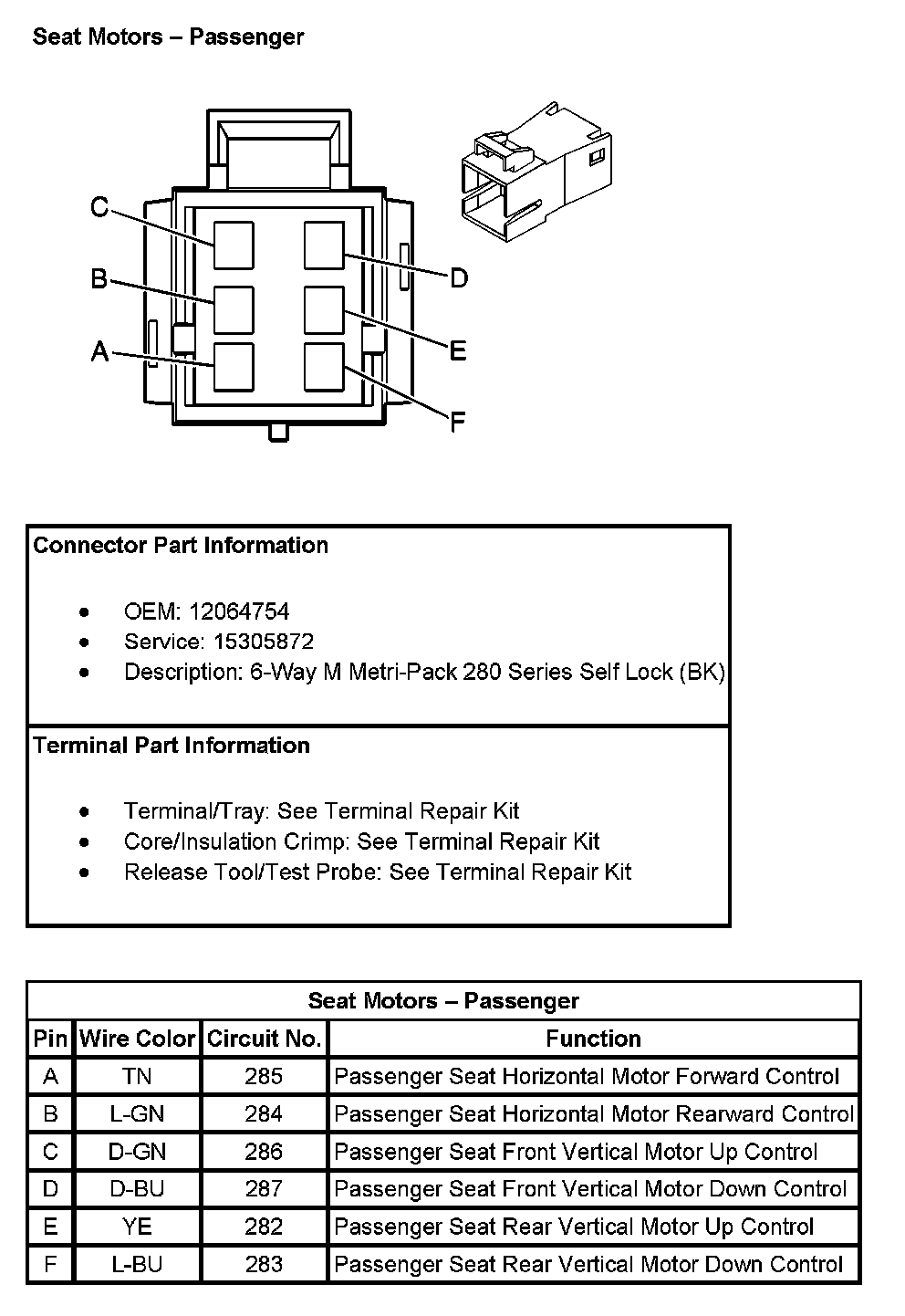

Seat Motors - Passenger:
