Clutch Backing Plate Retaining Ring Specifications (6L80)



Clutch Backing Plate Retaining Ring Specifications (6L80)

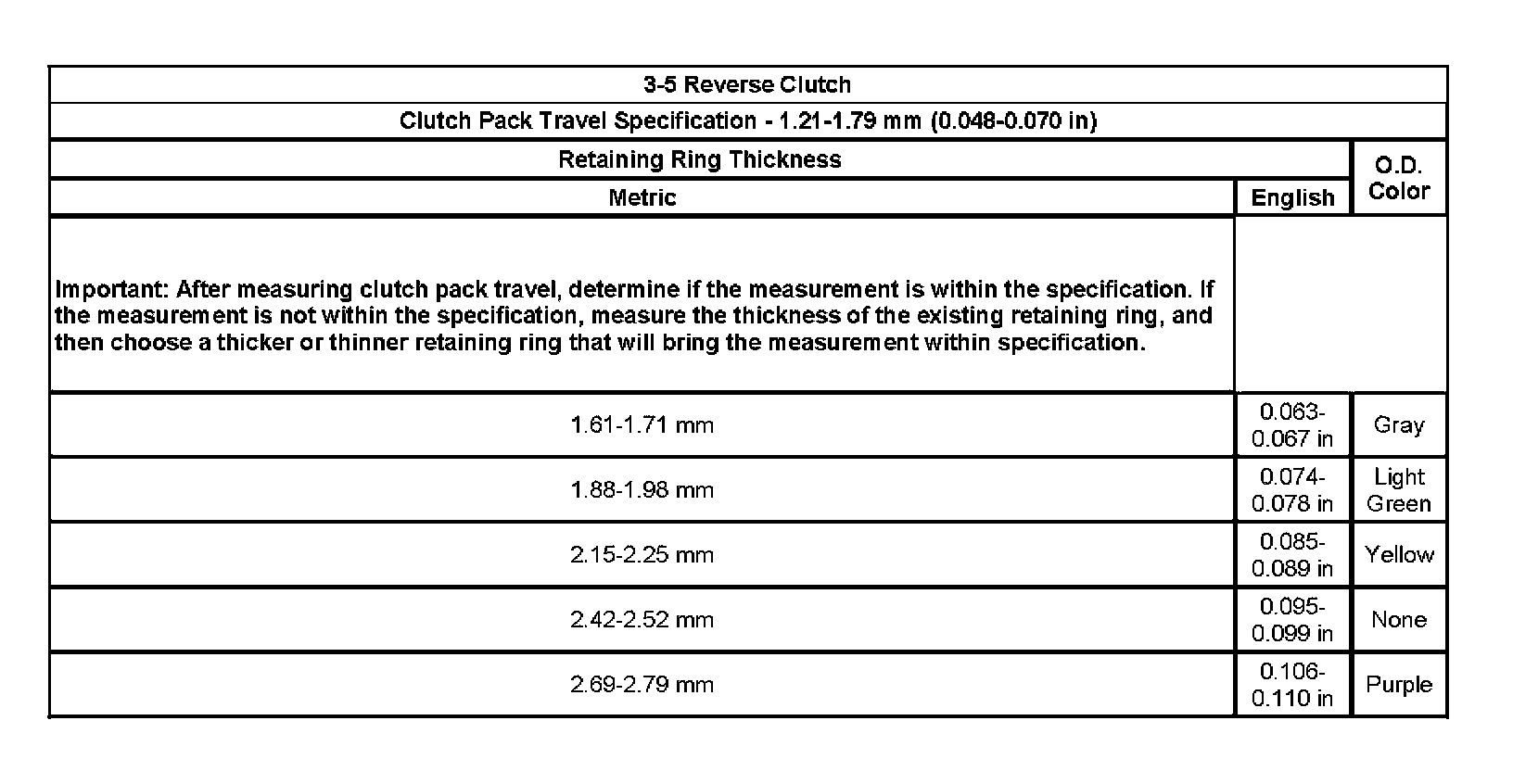

Clutch Backing Plate Retaining Ring Specifications (6L80) (Part 1):

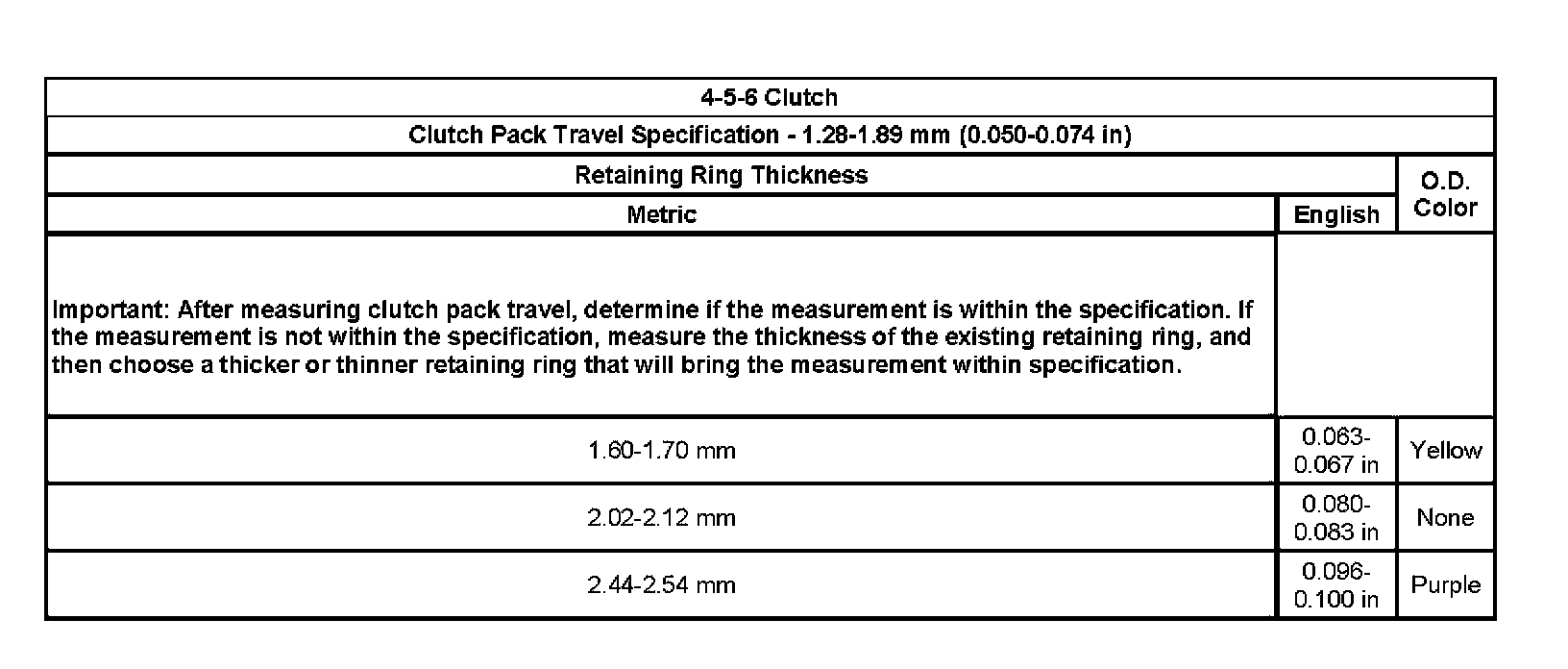

Clutch Backing Plate Retaining Ring Specifications (6L80) (Part 2):

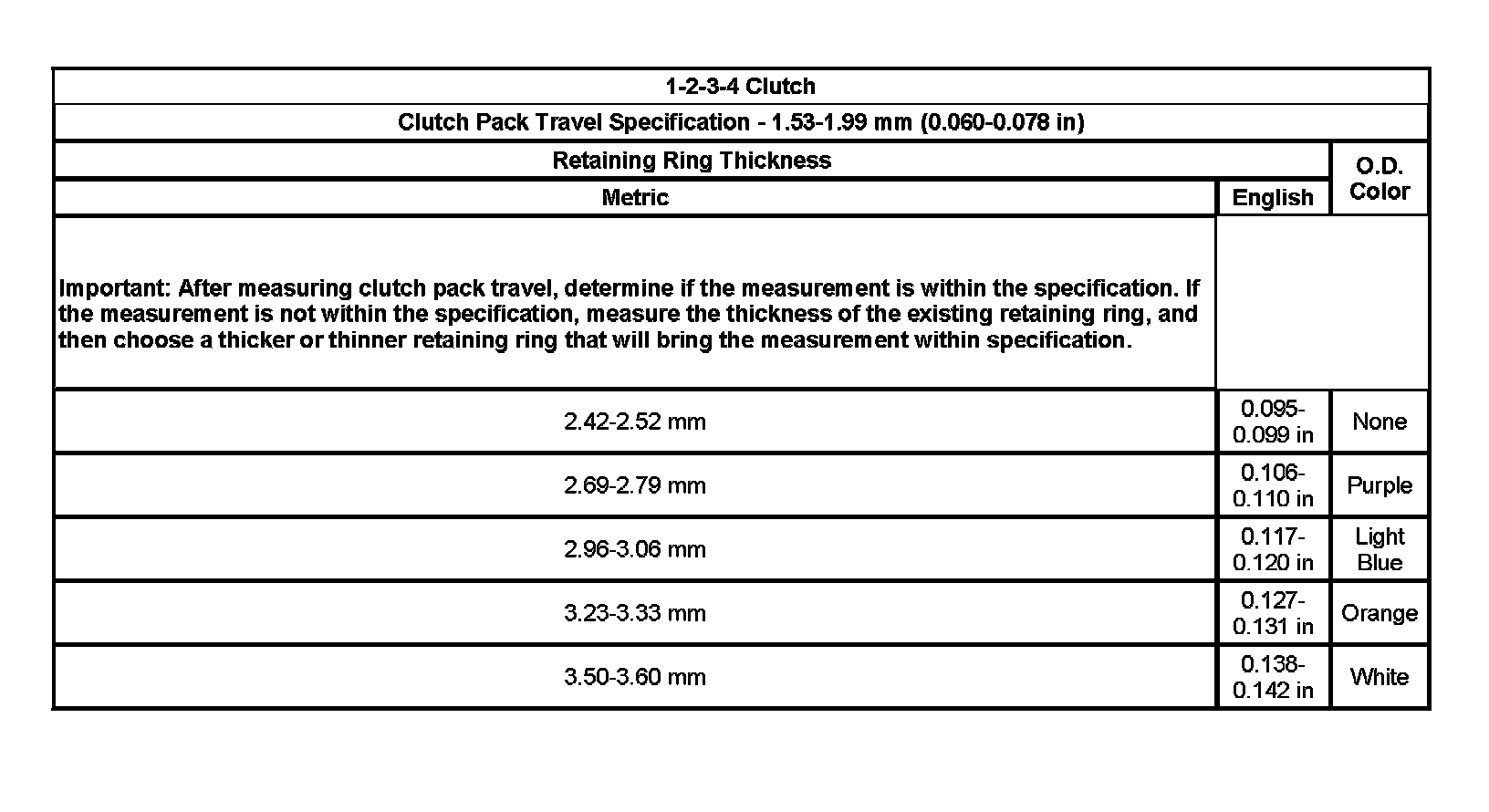

Clutch Backing Plate Retaining Ring Specifications (6L80) (Part 3):
