Battery Replacement

Battery Replacement (6.0L)

Removal Procedure

Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Disconnect the positive battery cable.

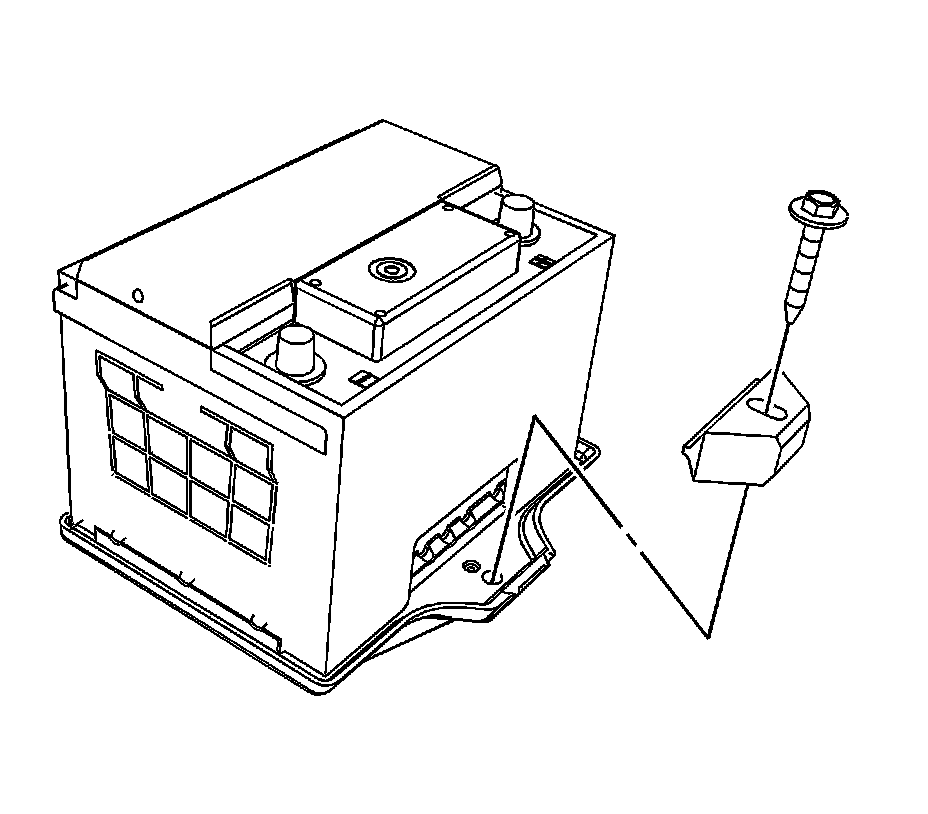

3. Remove the battery hold down retainer bolt and retainer.
4. Remove the battery.

Installation Procedure




1. Install the battery.

Notice: Refer to Fastener Notice.

2. Install the battery hold down retainer and bolt.

Tighten the battery hold down retainer bolt to 18 N.m (13 lb ft).

3. Connect the positive battery cable.

Tighten the positive battery cable bolt to 15 N.m (11 lb ft).

4. Connect the negative battery cable.
