Body Control Systems

Body Control System Schematics

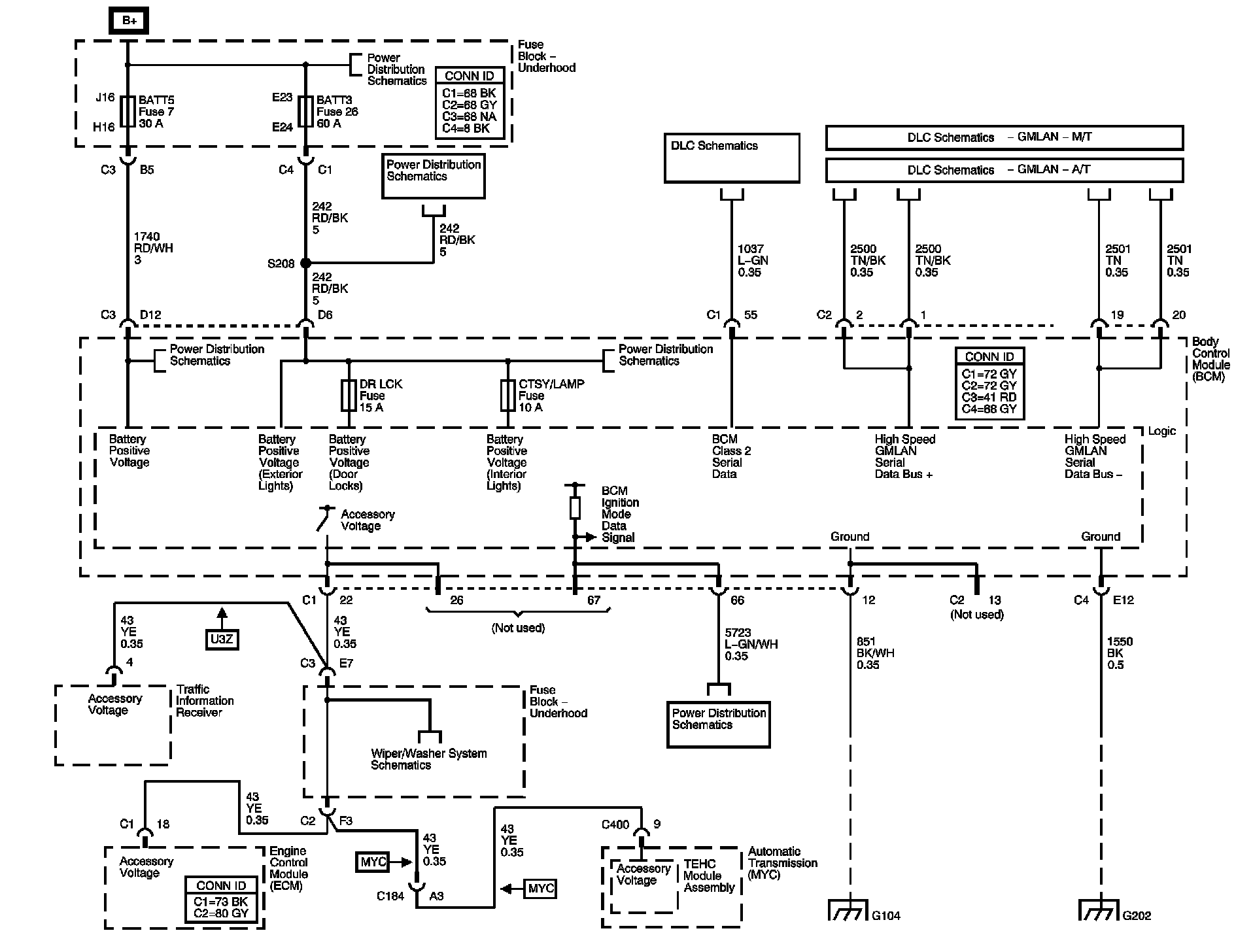

DLC, Ground and Power

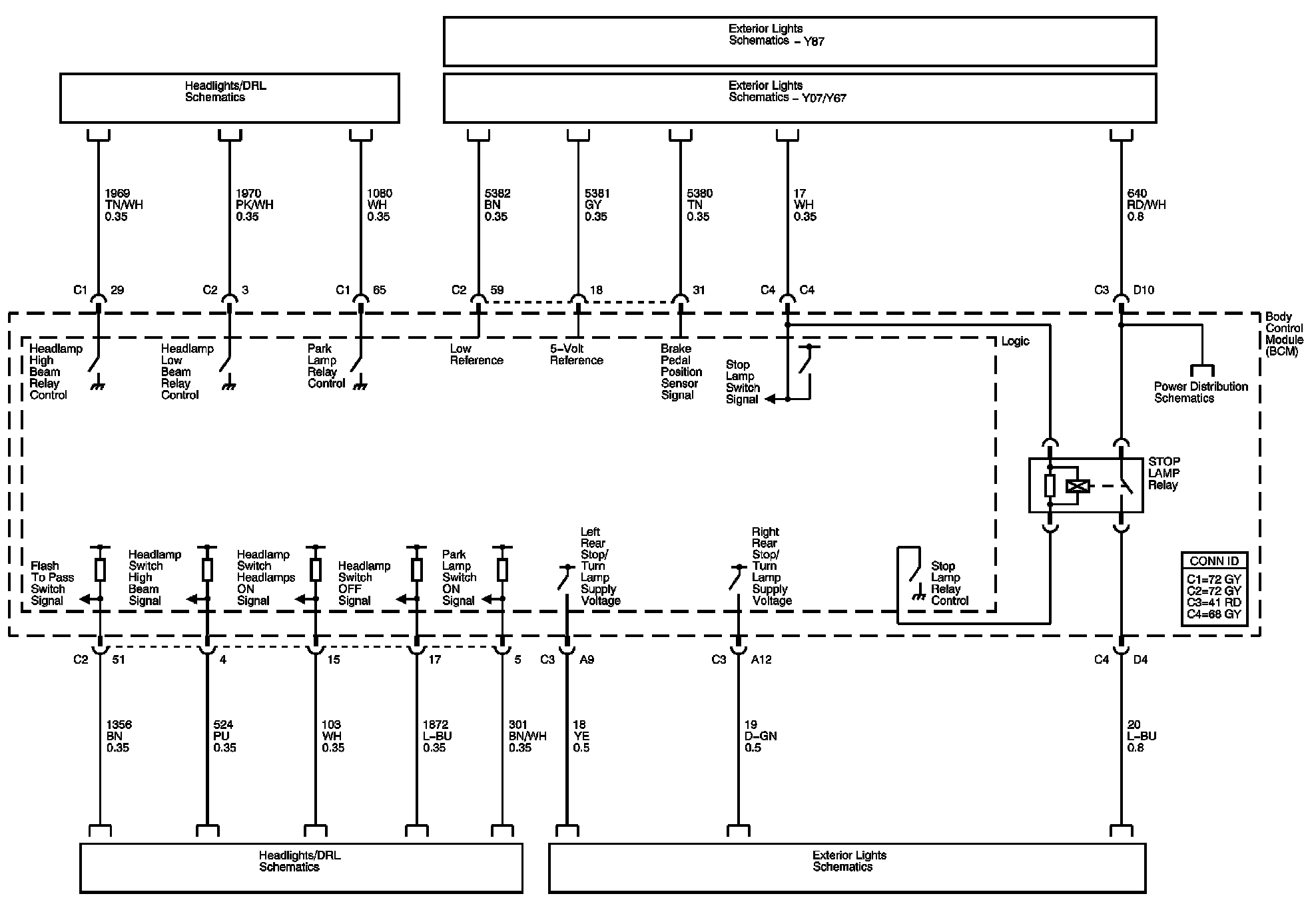

Lighting References 1 of 2

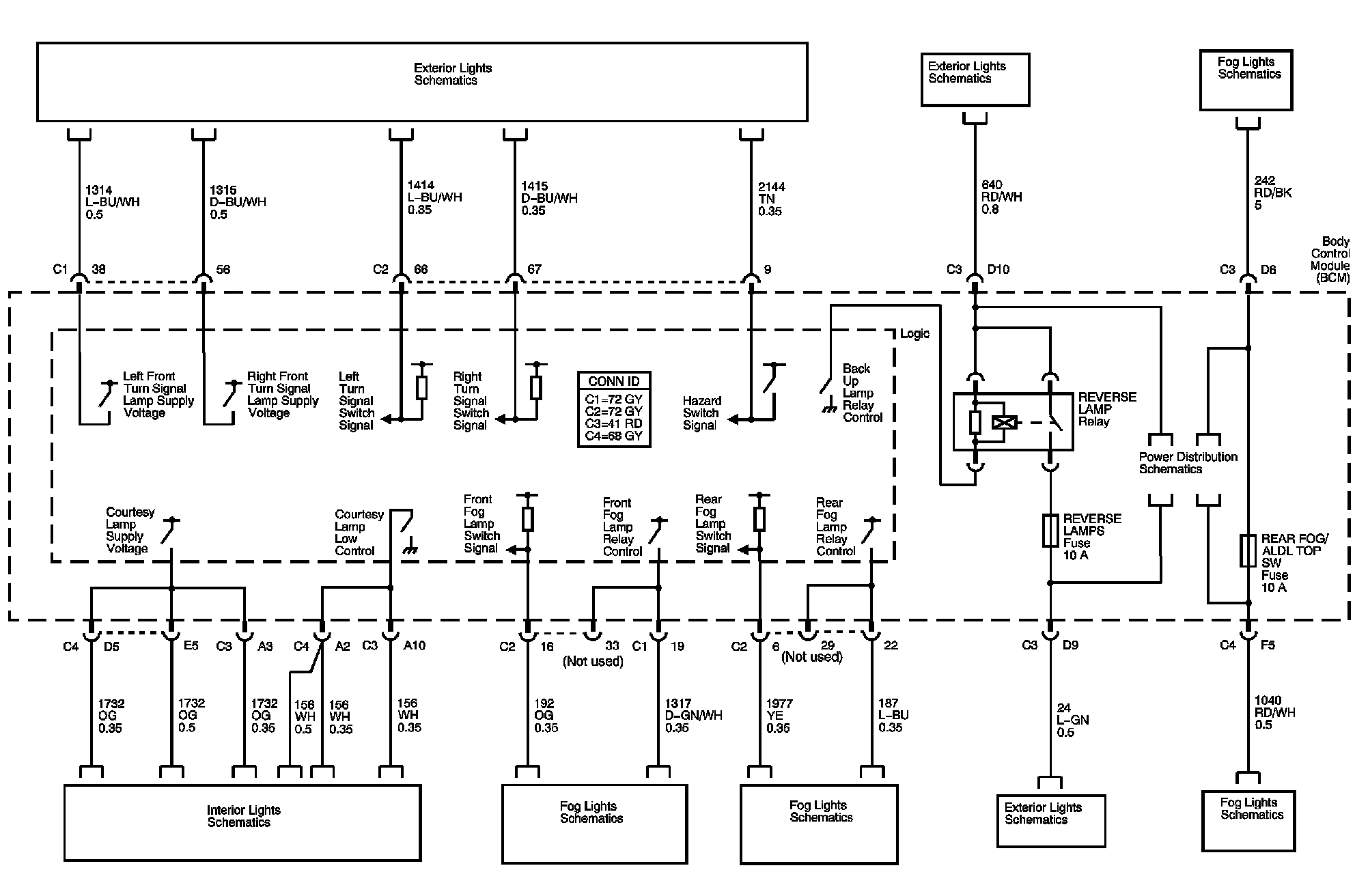

Lighting References 2 of 2

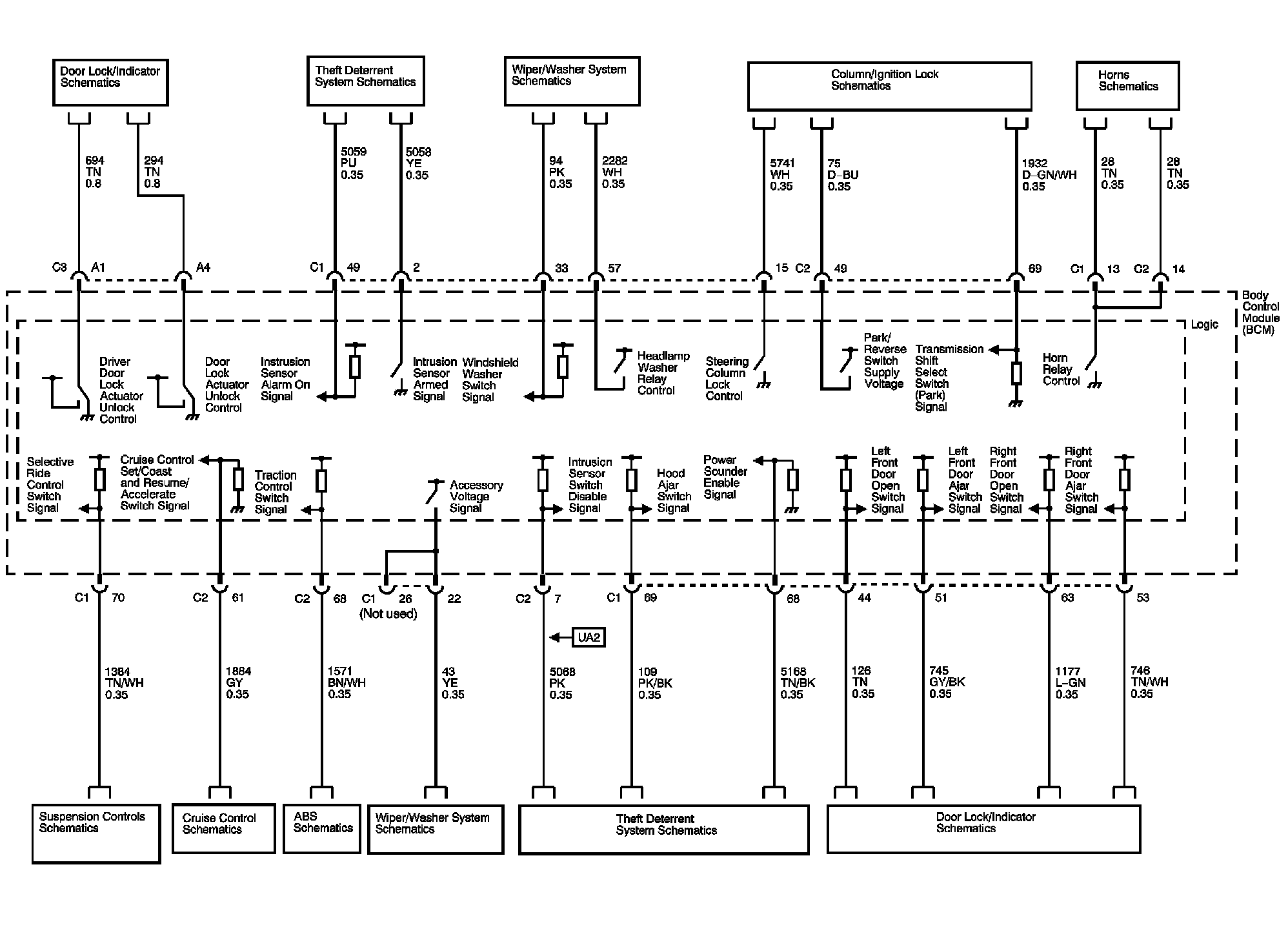

Subsystem References 1 of 2

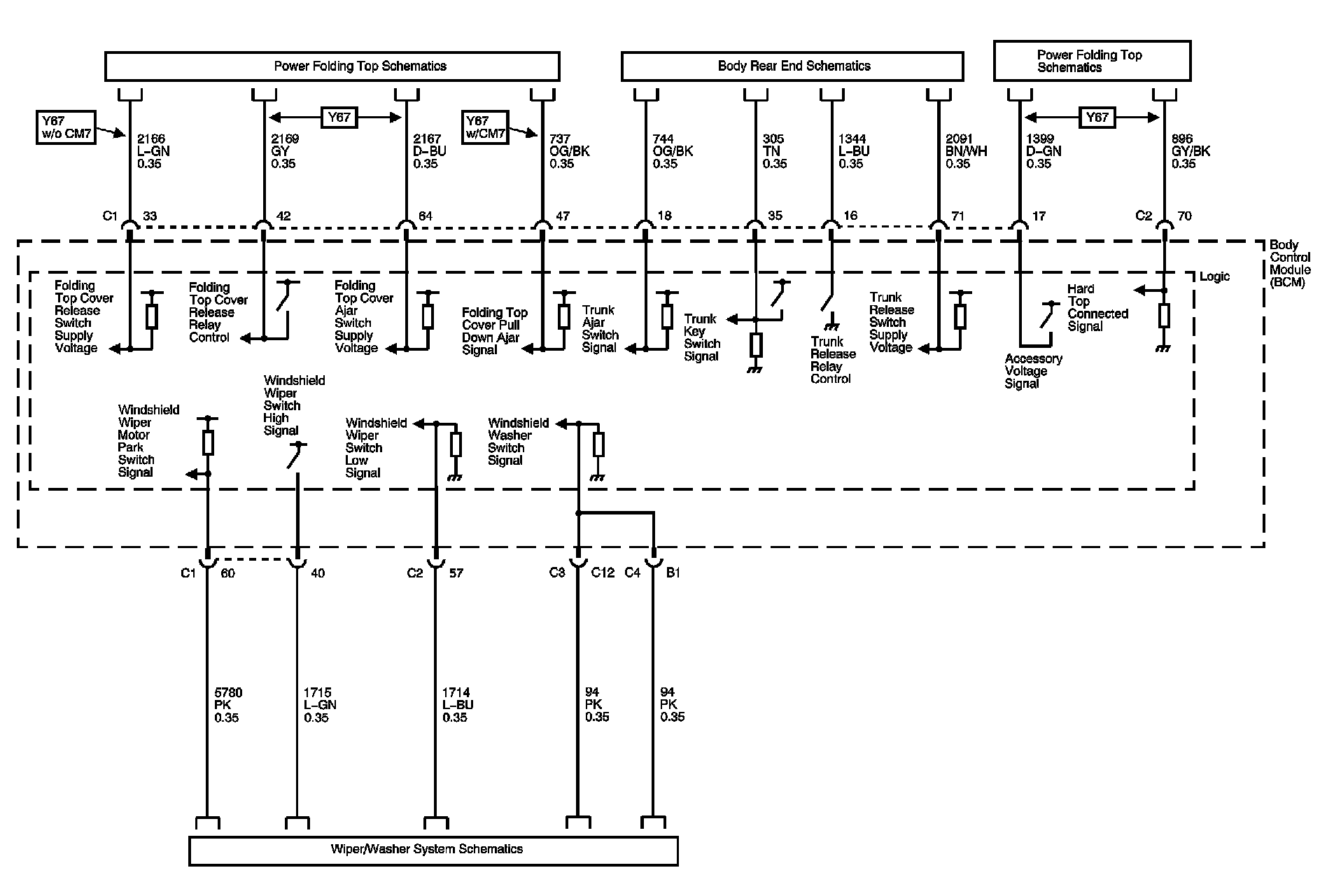

Subsystem References 2 of 2






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
