Grounds Views



Power and Grounding Component Views

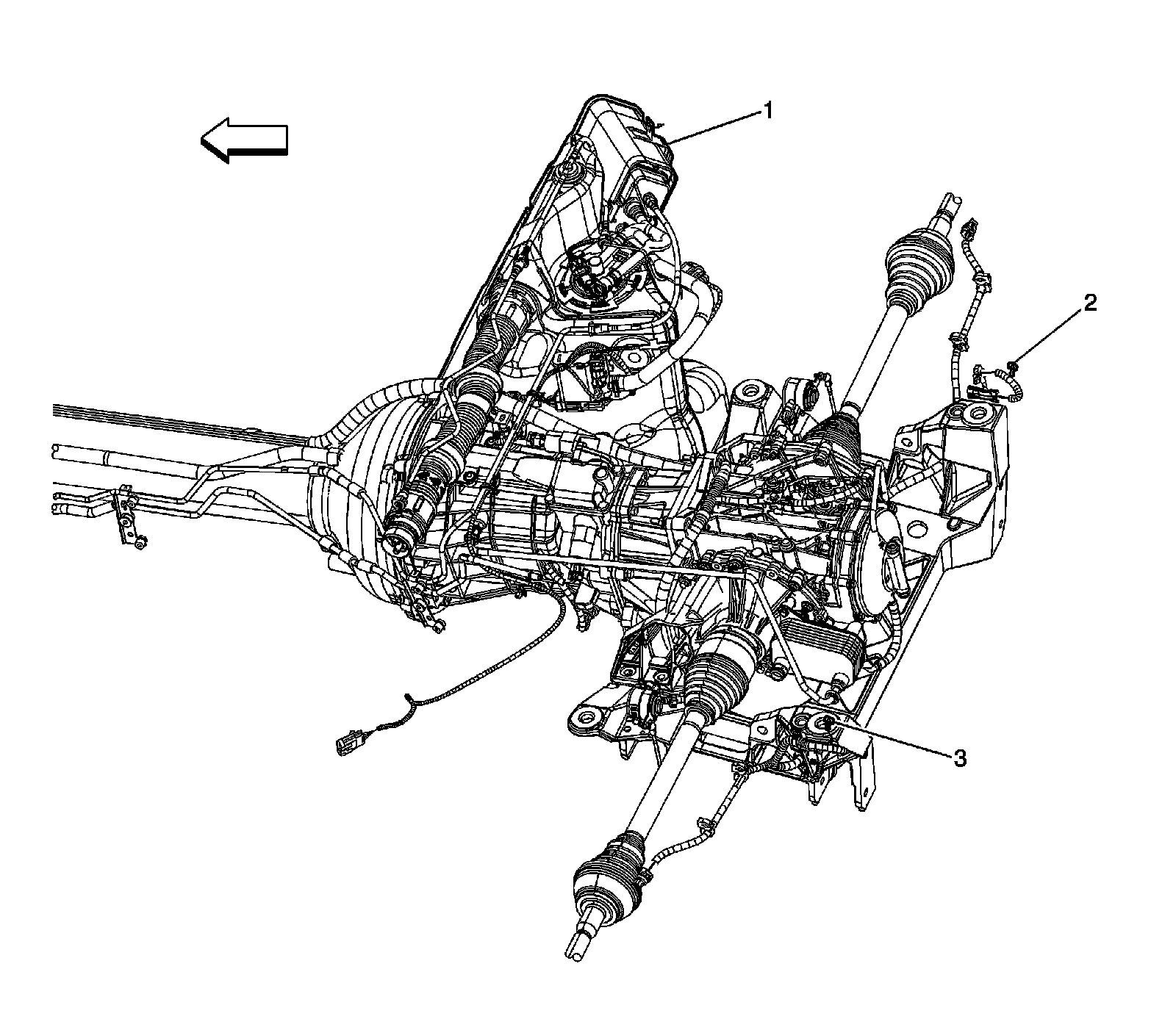

G401 and G402




1 - Fuel Tank-Right
2 - G402
3 - G401
