Engine General Specifications & Service Limits



Engine Mechanical Specifications

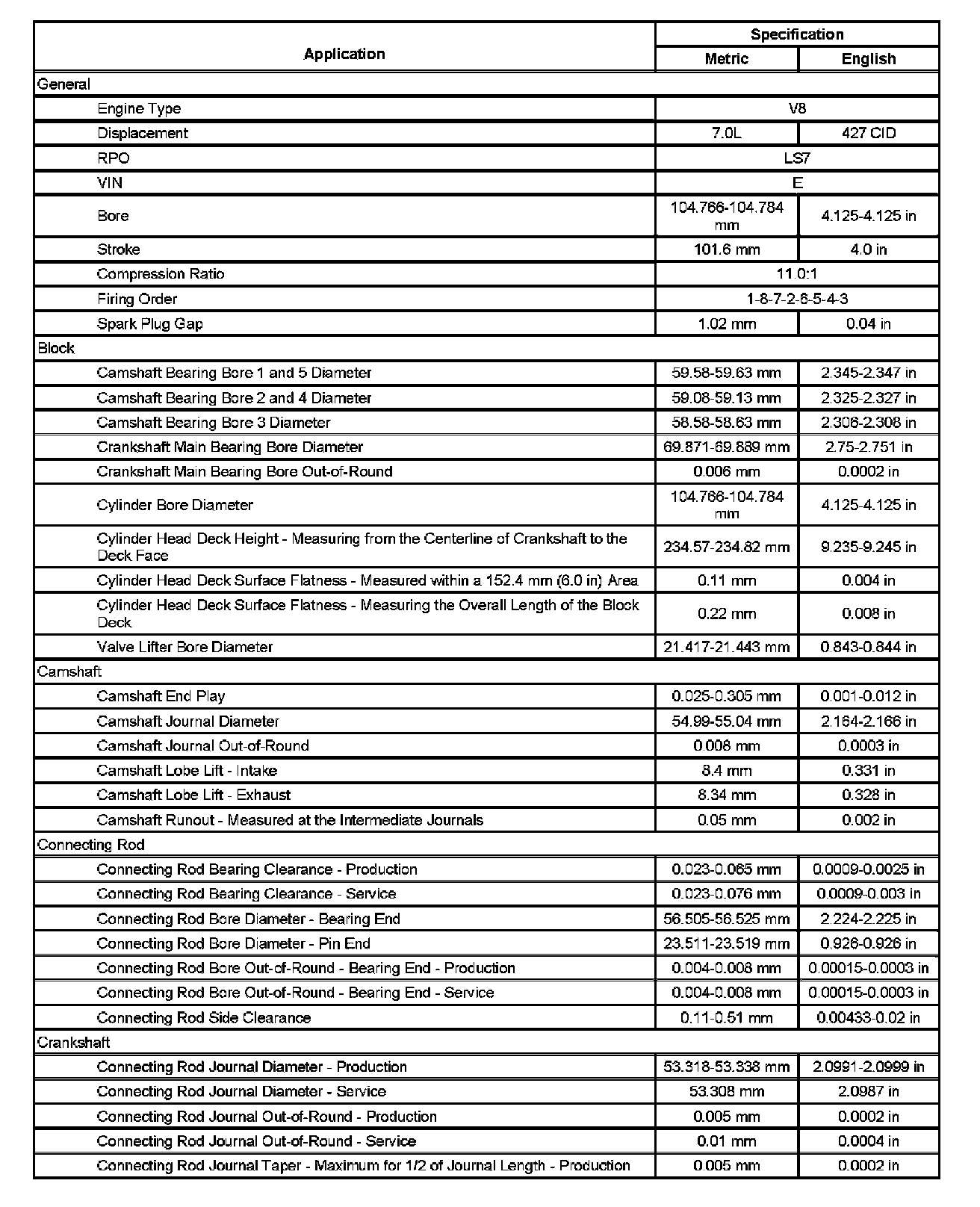

Engine Mechanical Specifications (Part 1):

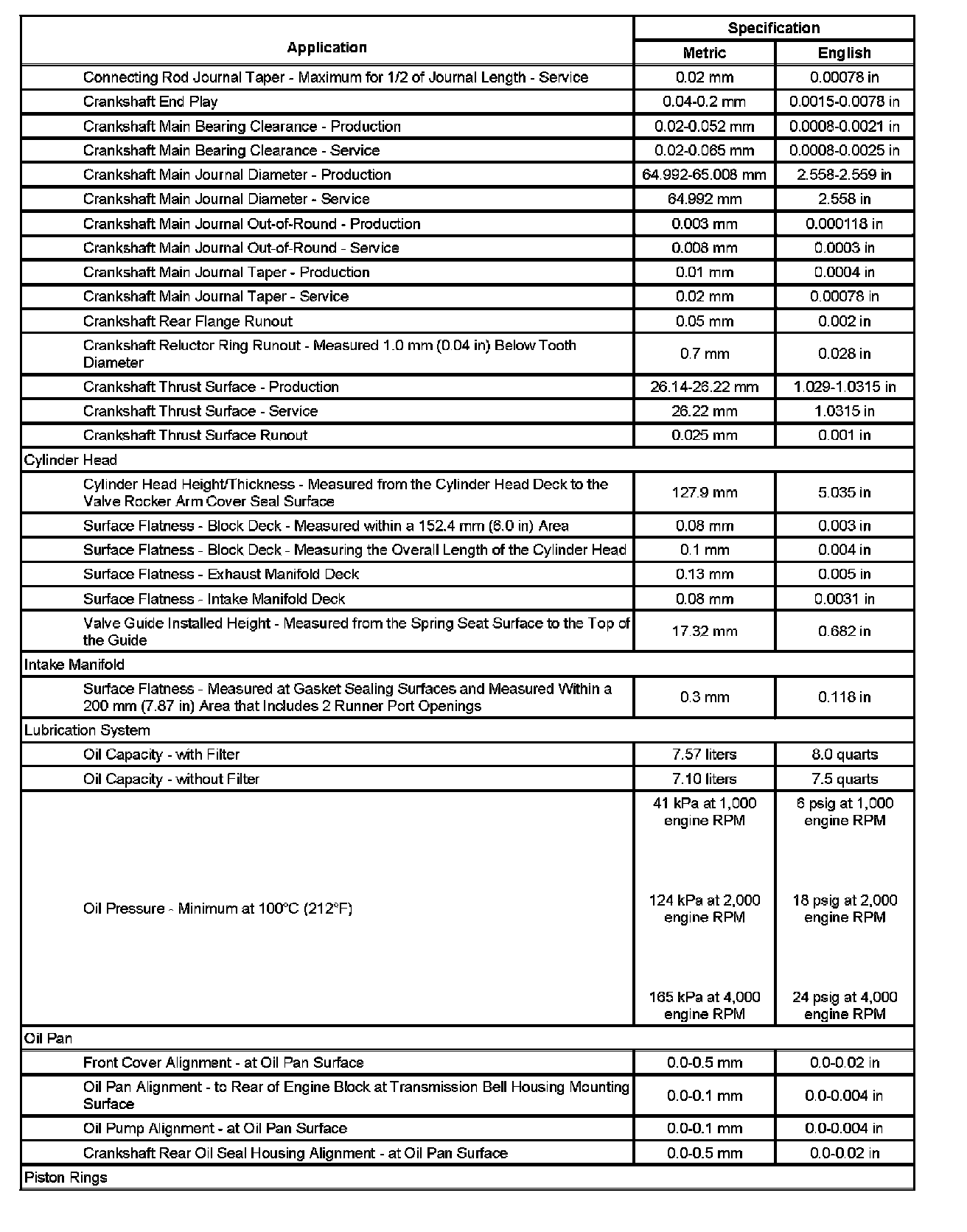

Engine Mechanical Specifications (Part 2):

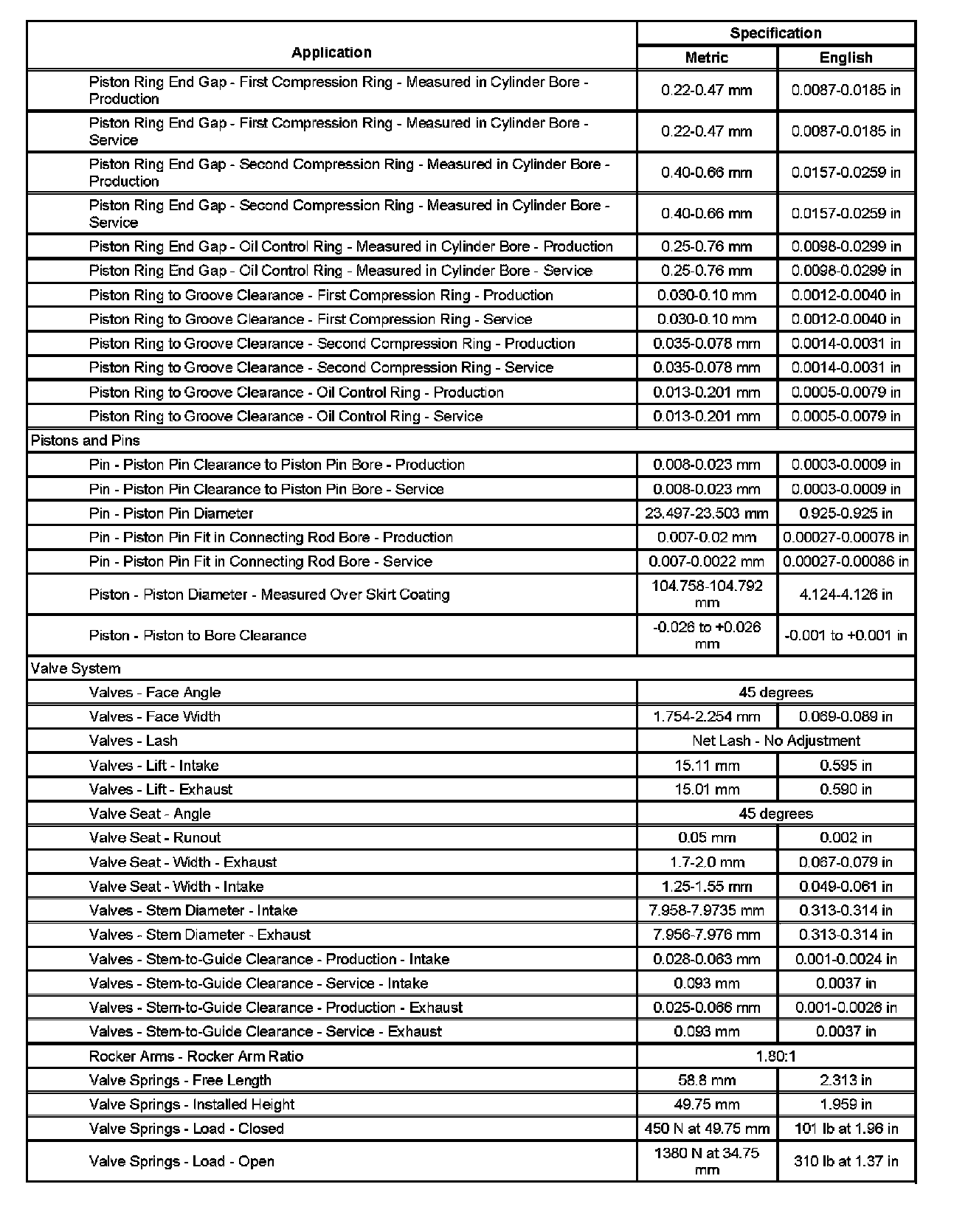

Engine Mechanical Specifications (Part 3):
