Access/Pro Harness and Components (With RPO Code PRP)

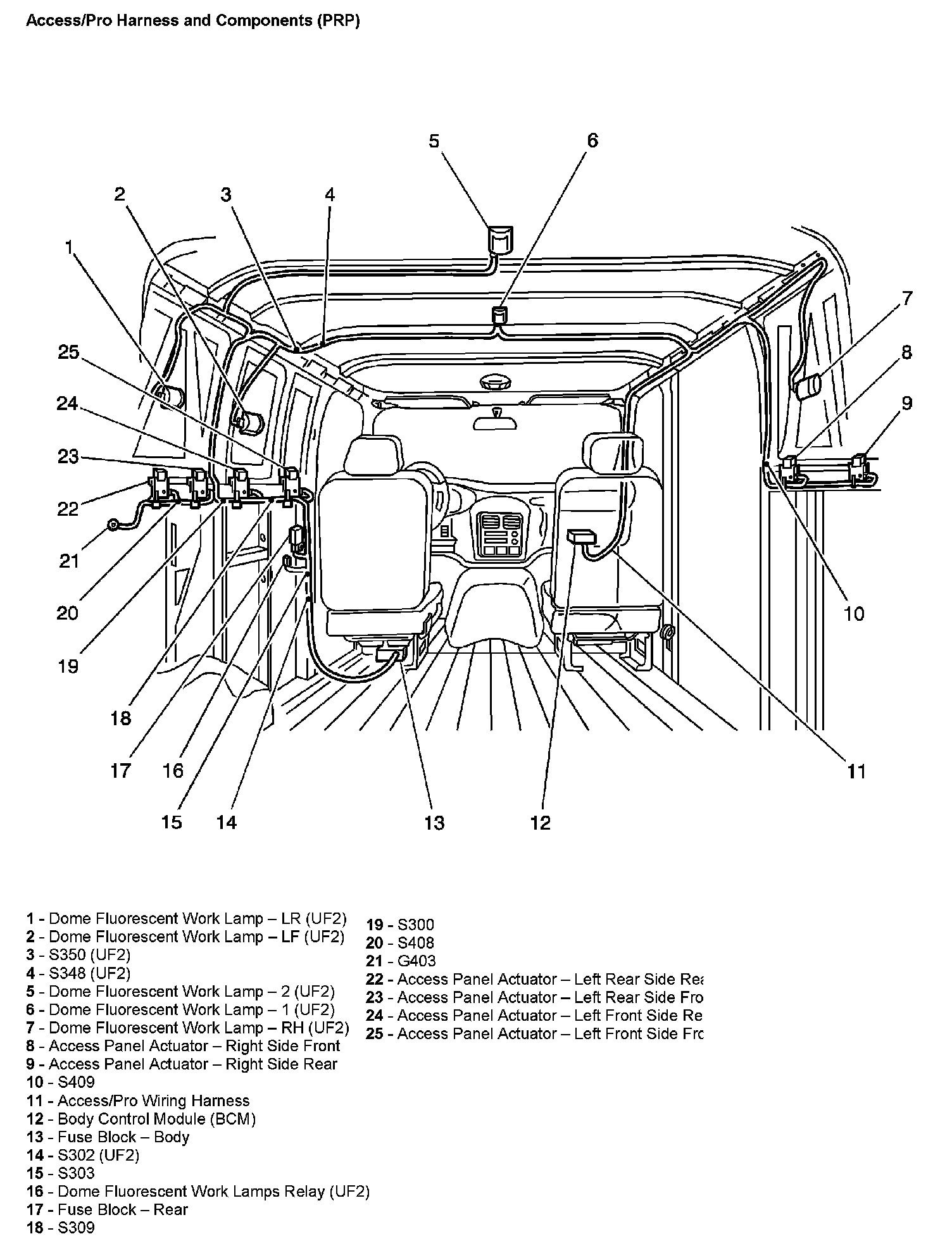

Access/Pro Harness And Components (PRP):

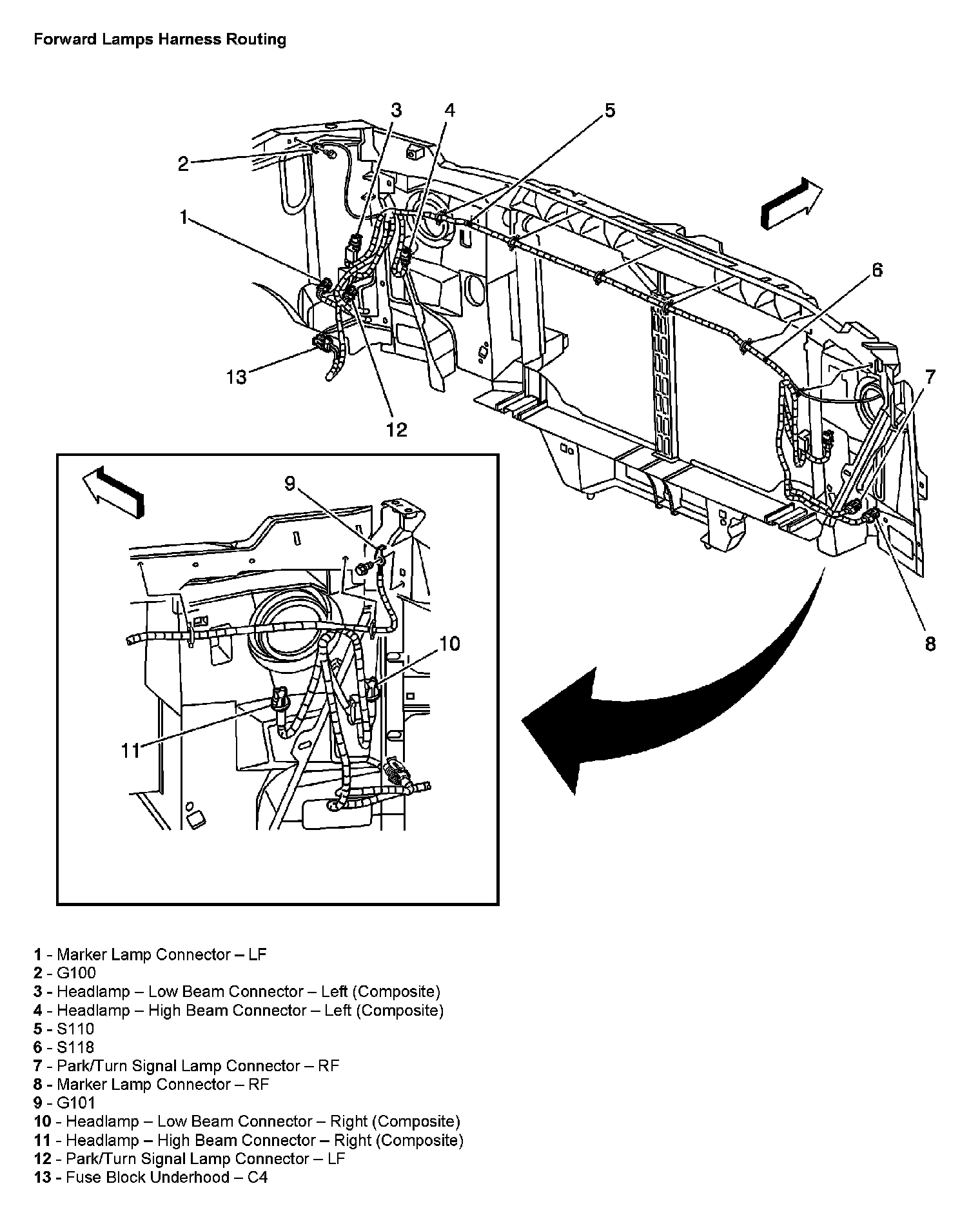

Forward Lamps Harness Routing:
