Air Flow Meter/Sensor: Locations

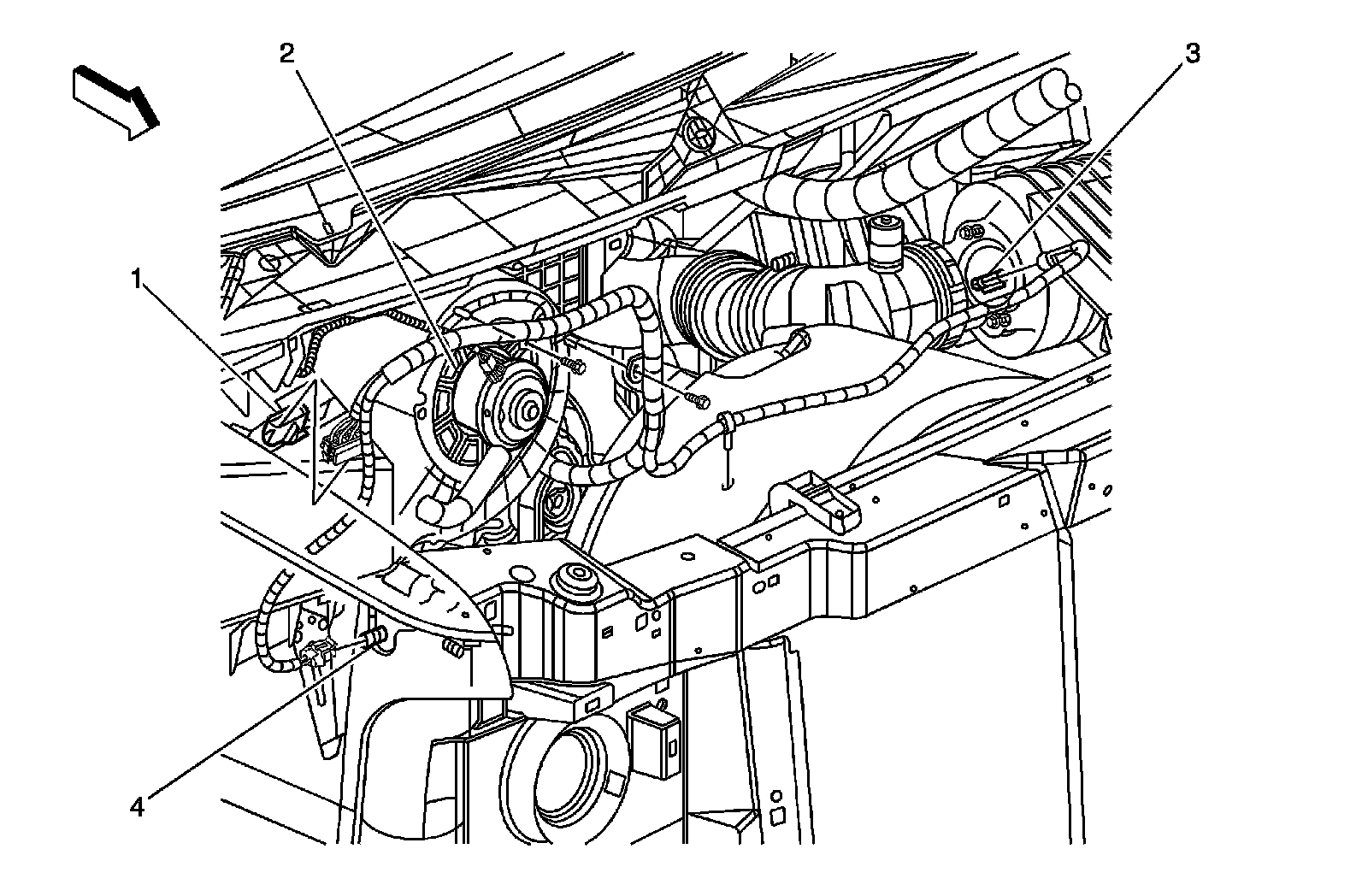

Engine Controls Component Views

Rear of the Engine Compartment

1 - Blower Motor Resistor Assembly
2 - Blower Motor
3 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4 - A/C Low Pressure Switch (C60)
