Shift Interlock: Locations



Shift Lock Control Component Views

Steering Column Harness Routing

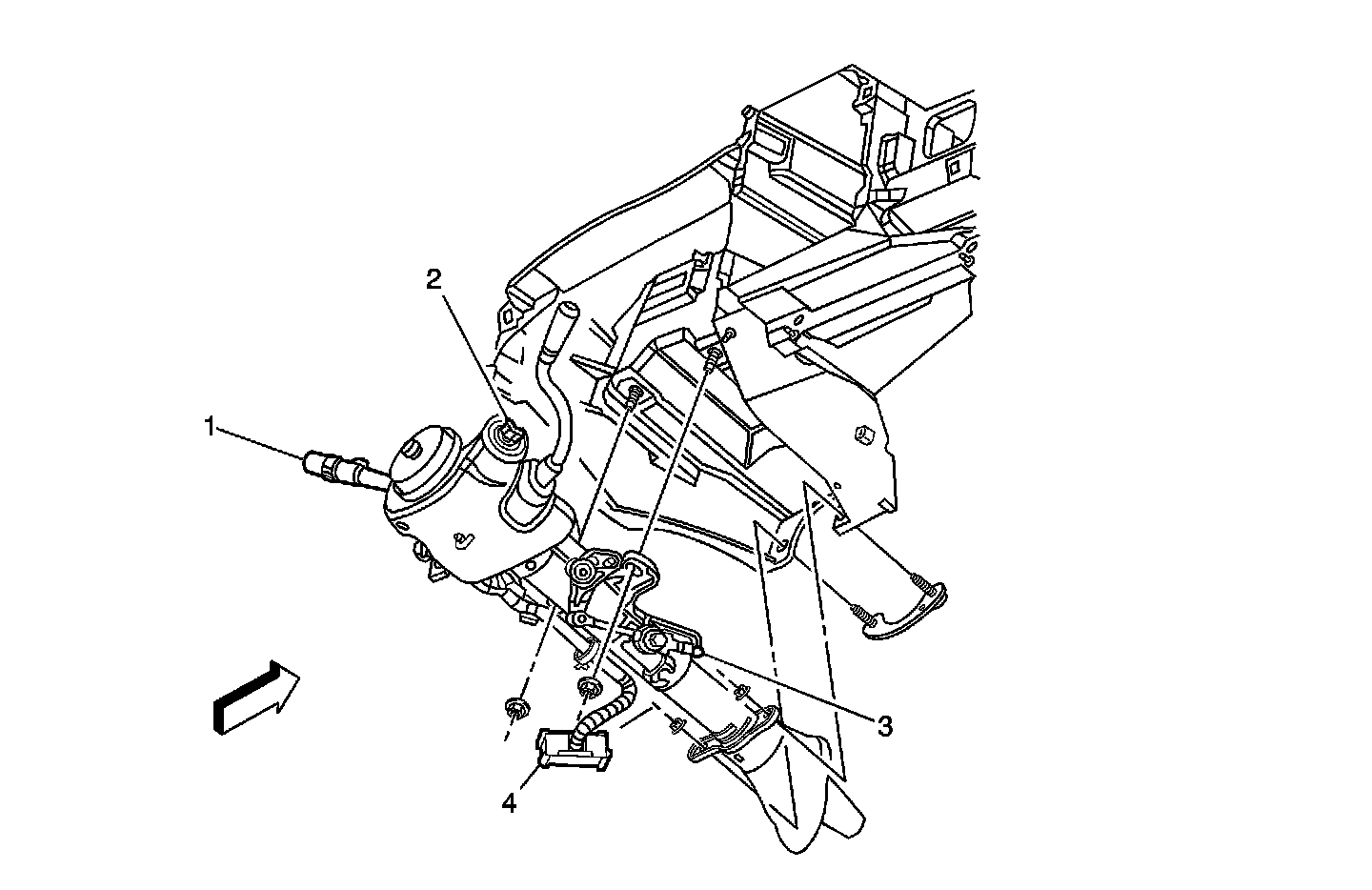

Steering Column Harness Routing:




1 - Turn Signal/Multifunction Switch Lever
2 - Ignition Key Cylinder
3 - A/T Shift Lock Control Solenoid Connector
4 - C200
