LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2007
>>
Express 2500 V8-6.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Body Fuse Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Body Fuse Block

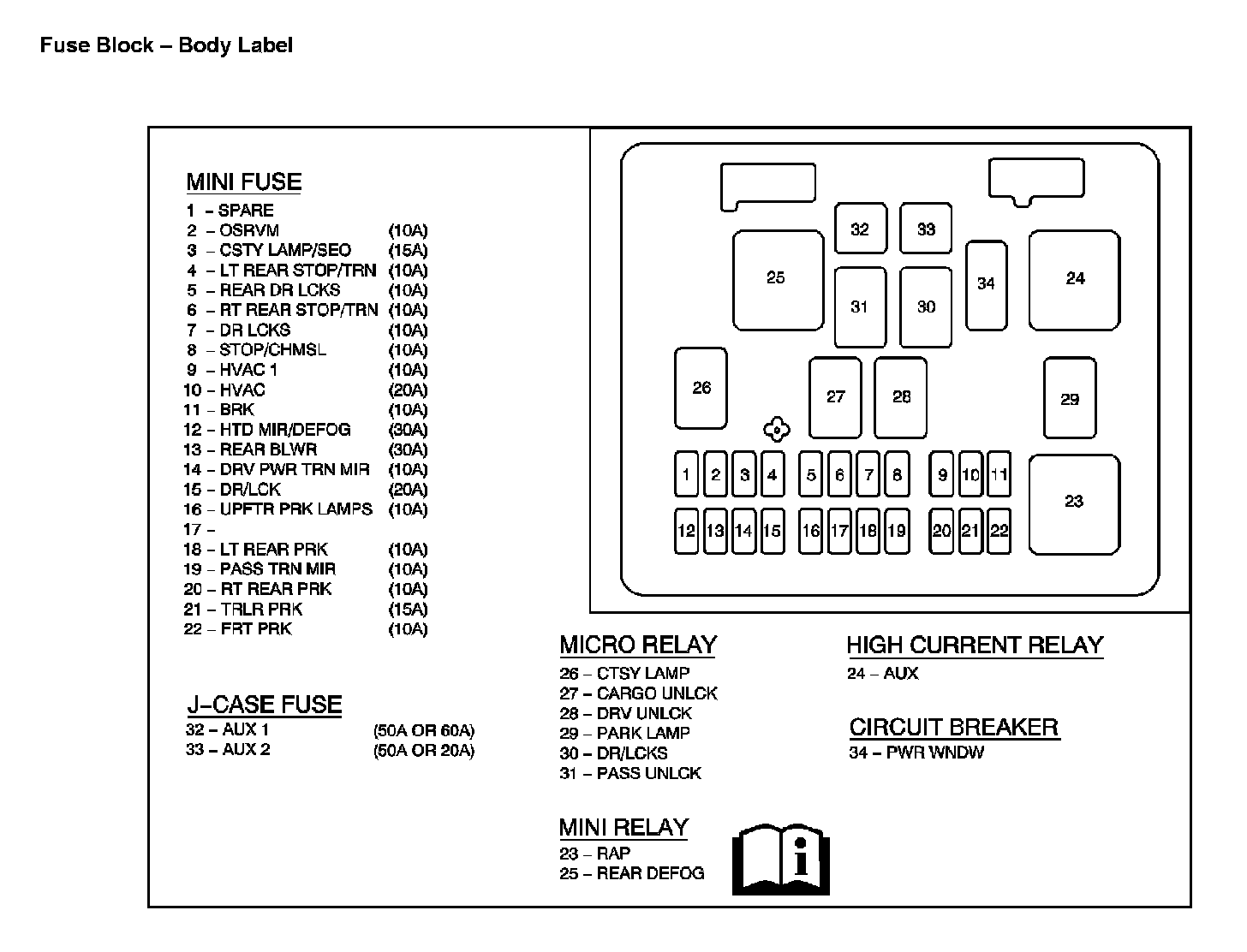

Fuse Block - Body Label:

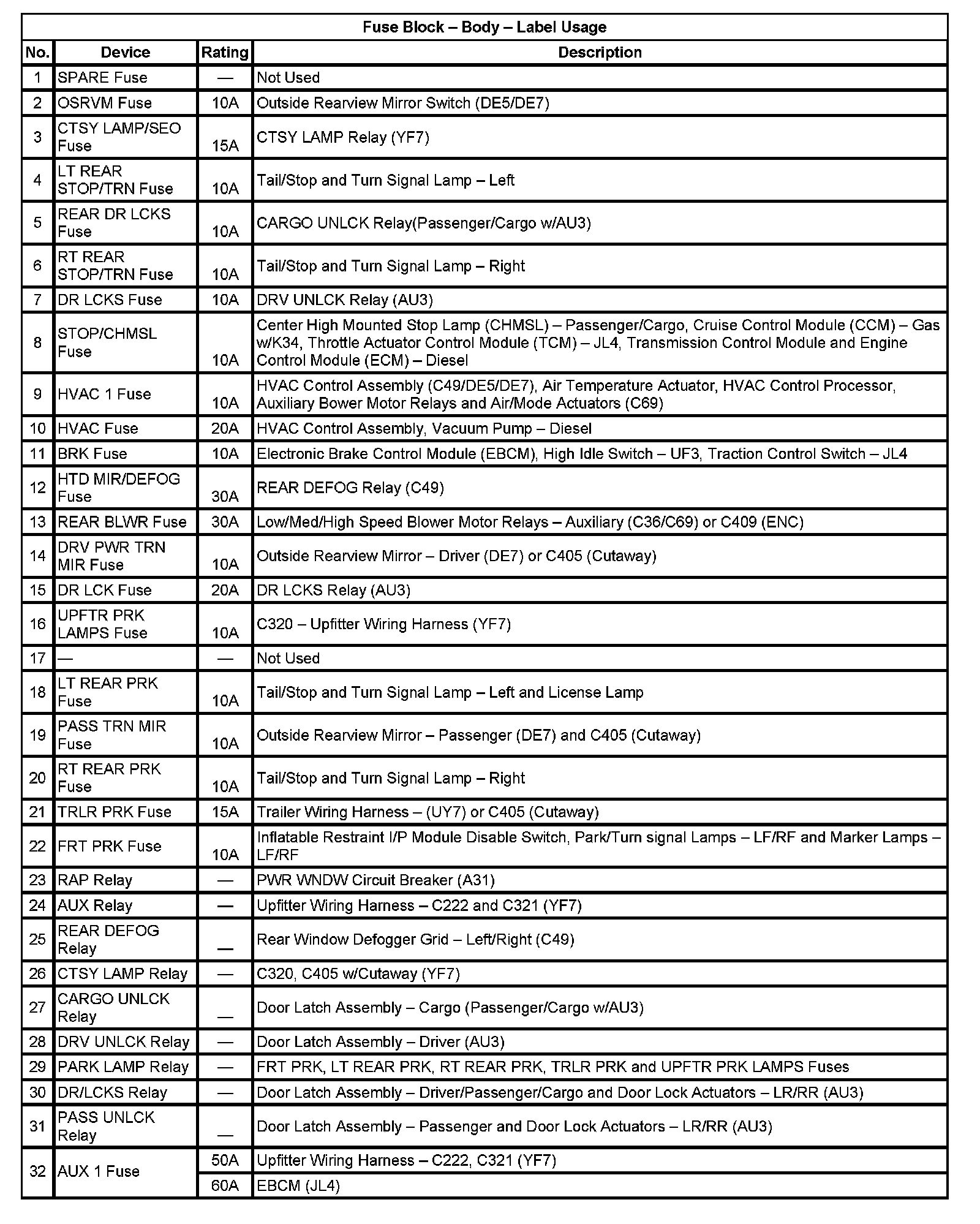

Fuse Block - Body - Label Usage (Part 1):
Fuse Block - Body - Label Usage (Part 2):
