Auxiliary Generator Replacement

Auxiliary Generator Replacement

Removal Procedure

Caution: Refer to Battery Disconnect Caution.

1. Remove the upper fan shroud.
2. Remove the drive belt.
3. Disconnect the auxiliary generator electrical connector.
4. Remove the positive cable from the auxiliary generator, perform the following:

1. Slide the boot down to access the terminal stud.
2. Remove the positive cable nut.
3. Remove the positive cable.

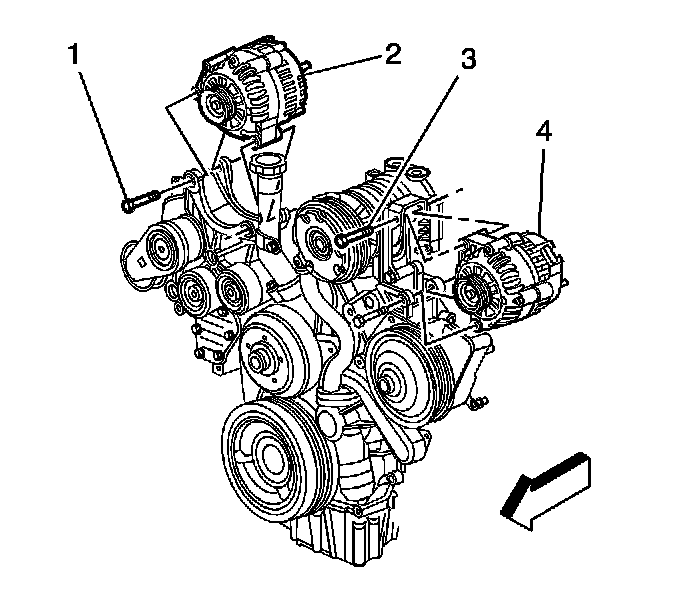

5. Remove the auxiliary generator bolts (3).
6. Remove the auxiliary generator (4).

Installation Procedure





1. Position the auxiliary generator (4).

Notice: Refer to Fastener Notice.

2. Install the auxiliary generator bolts (3).

Tighten the generator bolts to 50 N.m (37 lb ft).

3. Install the positive cable to the auxiliary generator, perform the following:

1. Position the positive cable.
2. Install the positive cable nut.

Tighten the nut to 9 N.m (80 lb in).

3. Slide the boot to cover the terminal stud.

4. Connect the generator electrical connector.
5. Install the drive belt.
6. Install the upper shroud.
