Starter Relay: Locations

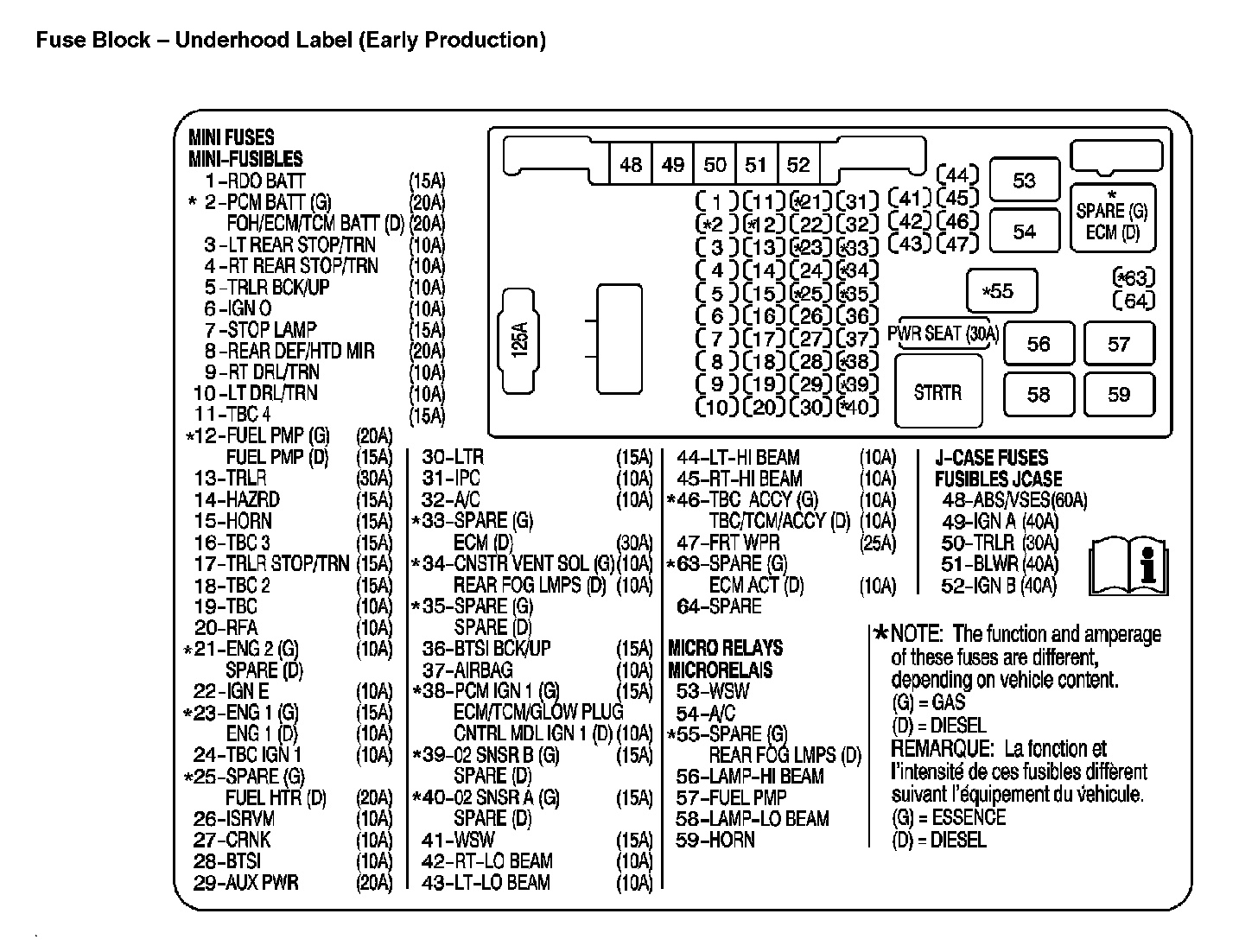

Fuse Block - Underhood Label (Early Production):

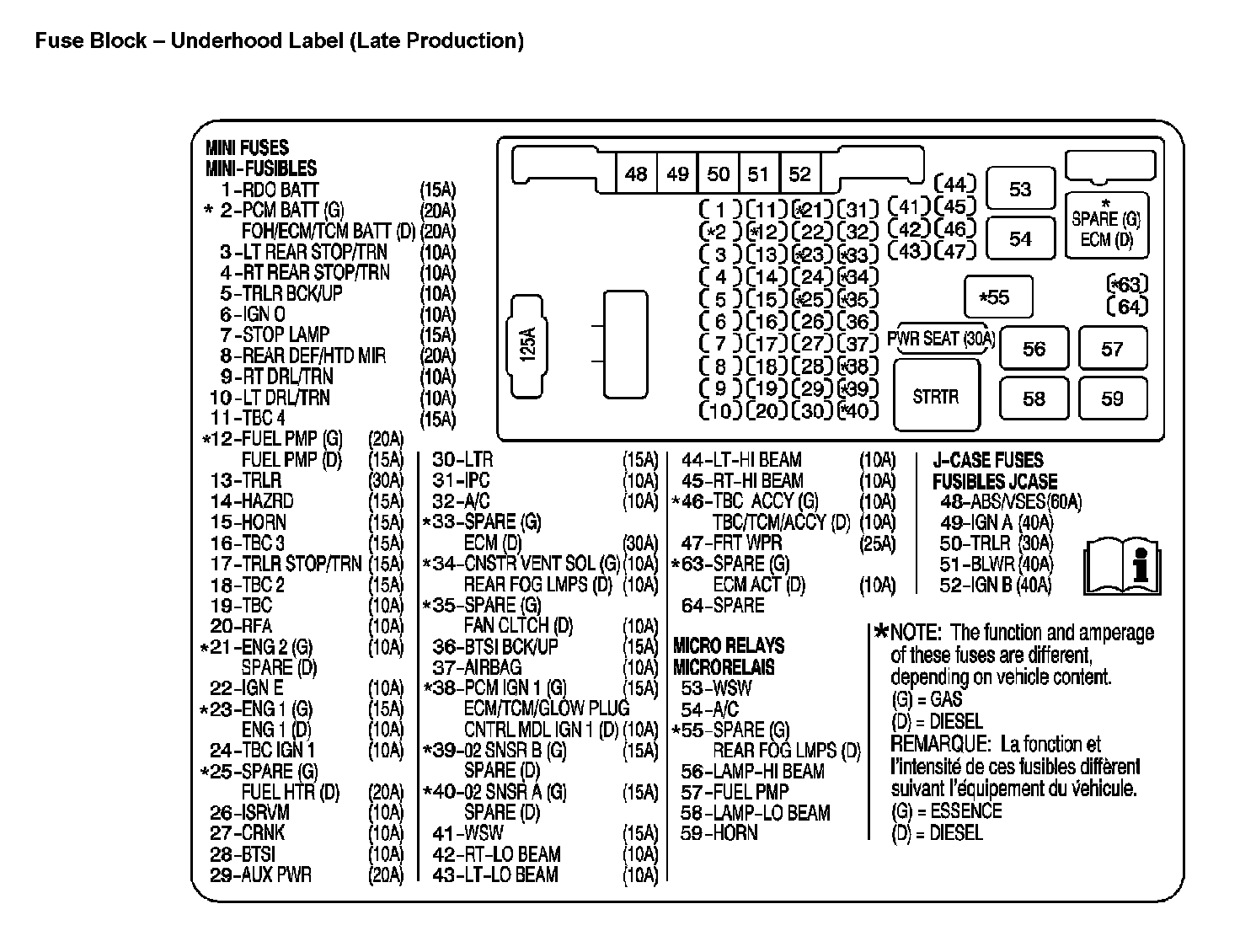

Fuse Block - Underhood Label (Late Production):
