Glow Plug Control Module



Engine Controls Connector End Views

Glow Plug Control Module (GPCM) - C1

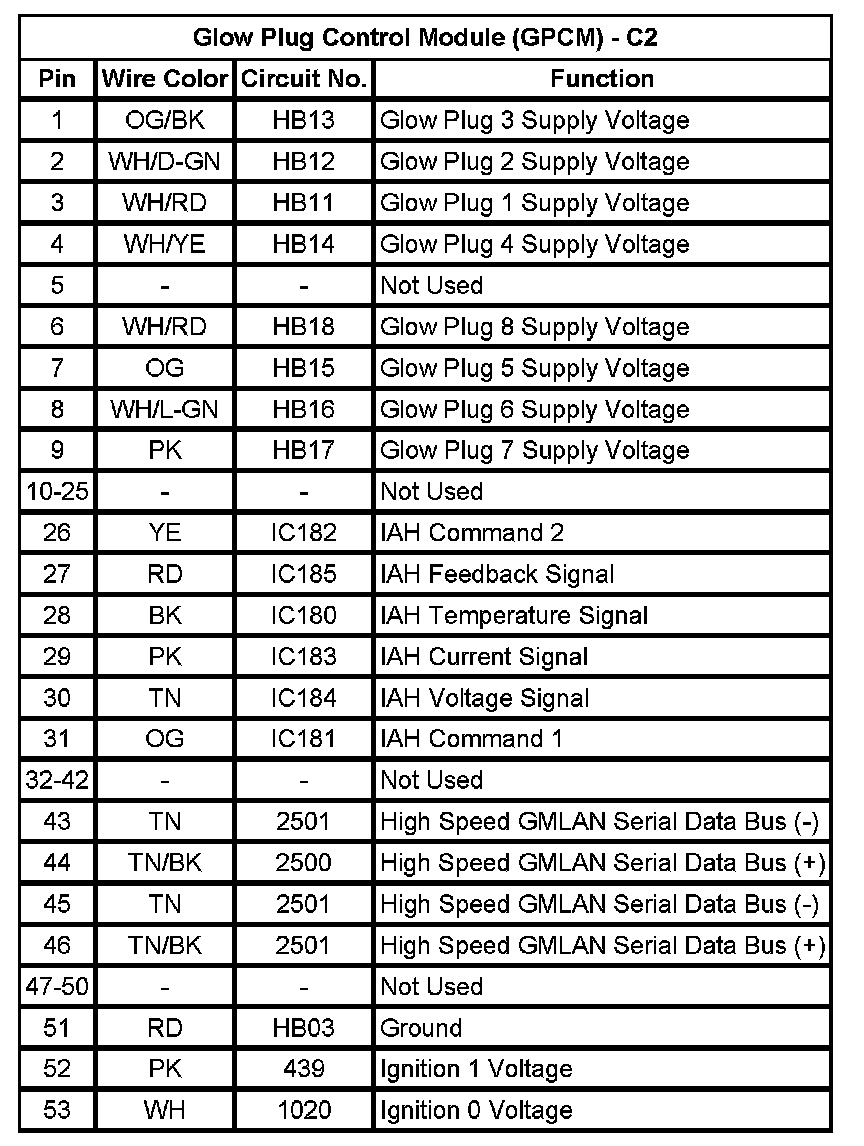

Glow Plug Control Module (GPCM) - C2
