Transmission Control Module (TCM), Engine Side

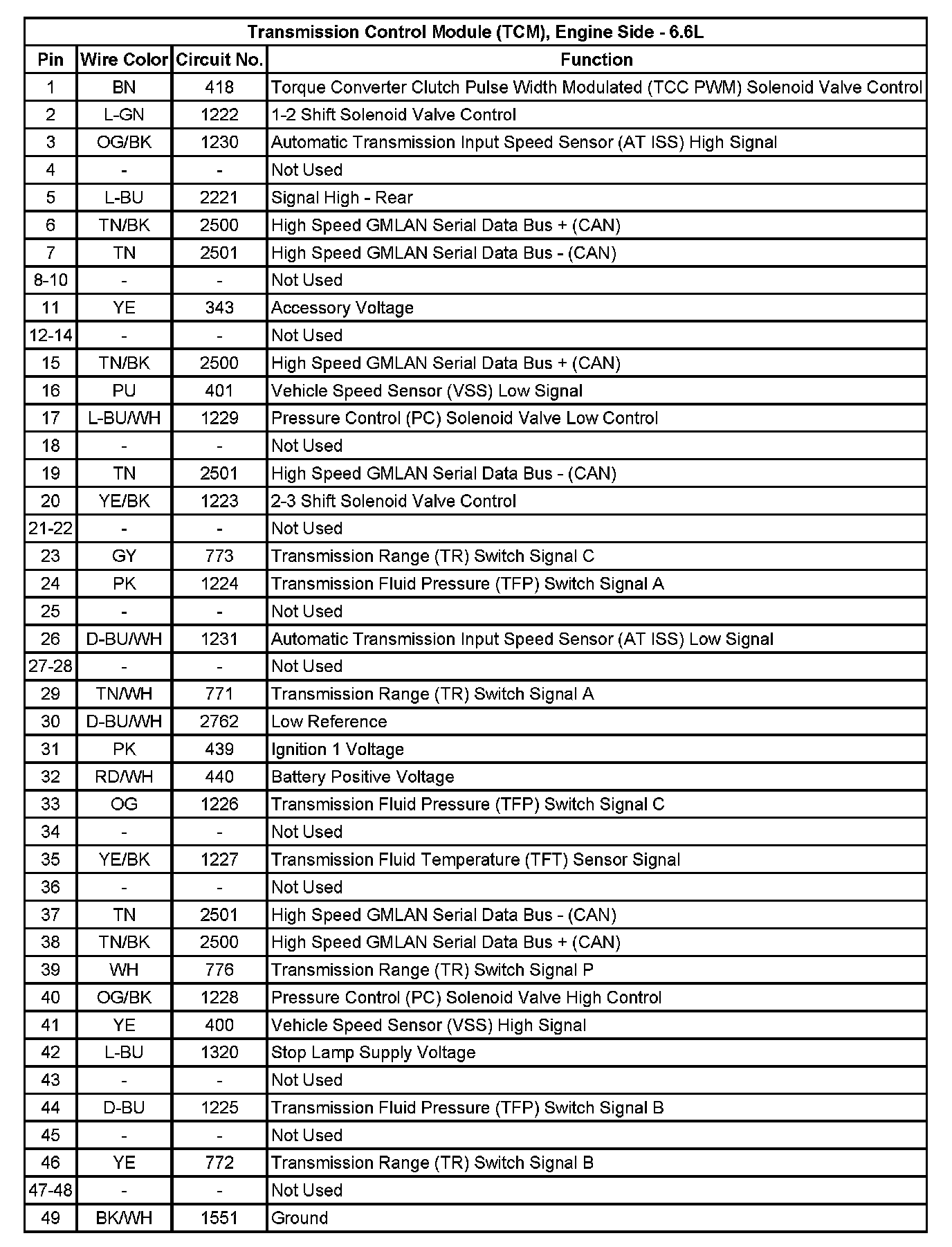

Transmission Control Module (TCM), Engine Side - 6.6L







Transmission Control Module (TCM), Engine Side - 6.6L:
