Underhood Electrical Center or Junction Block Replacement

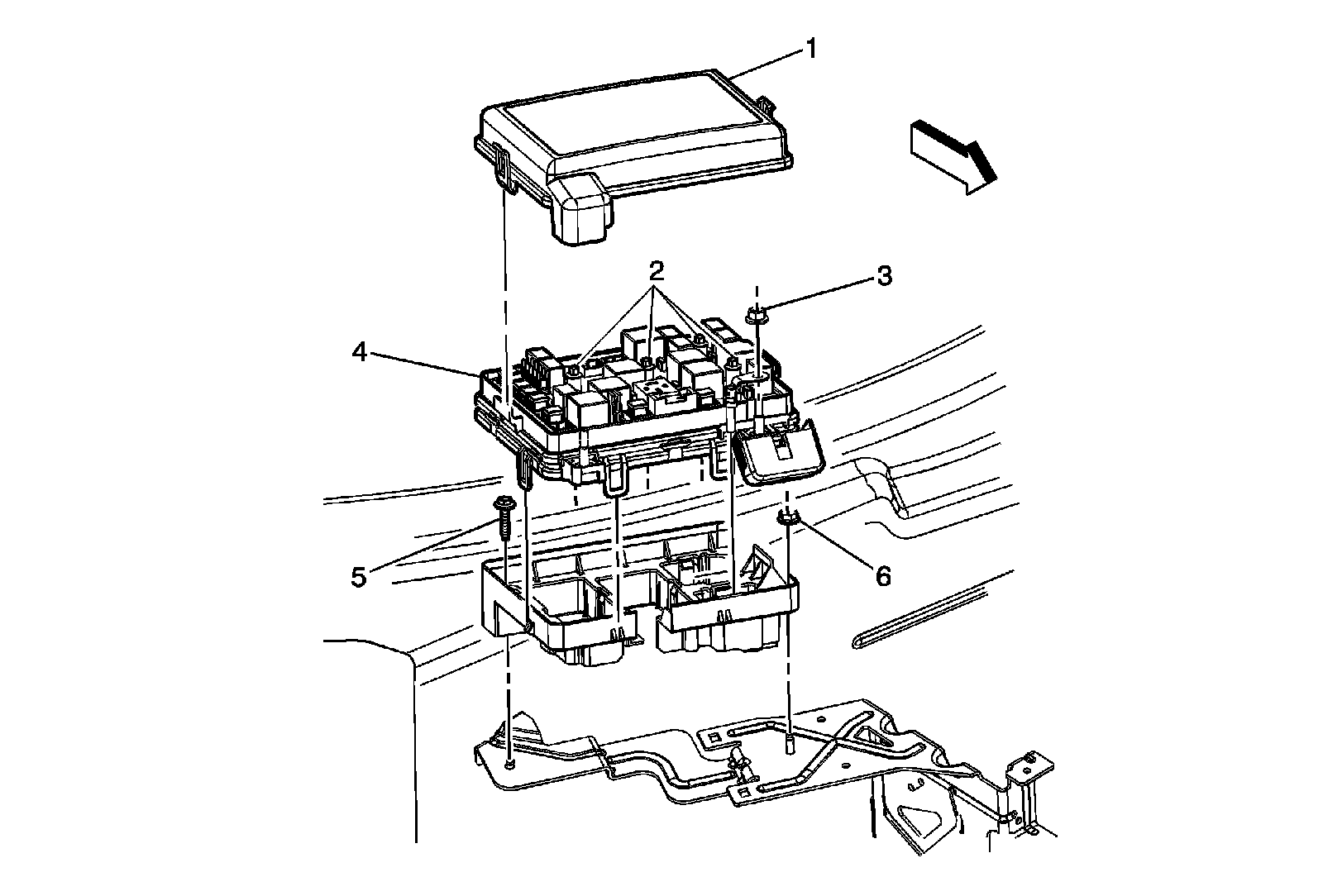

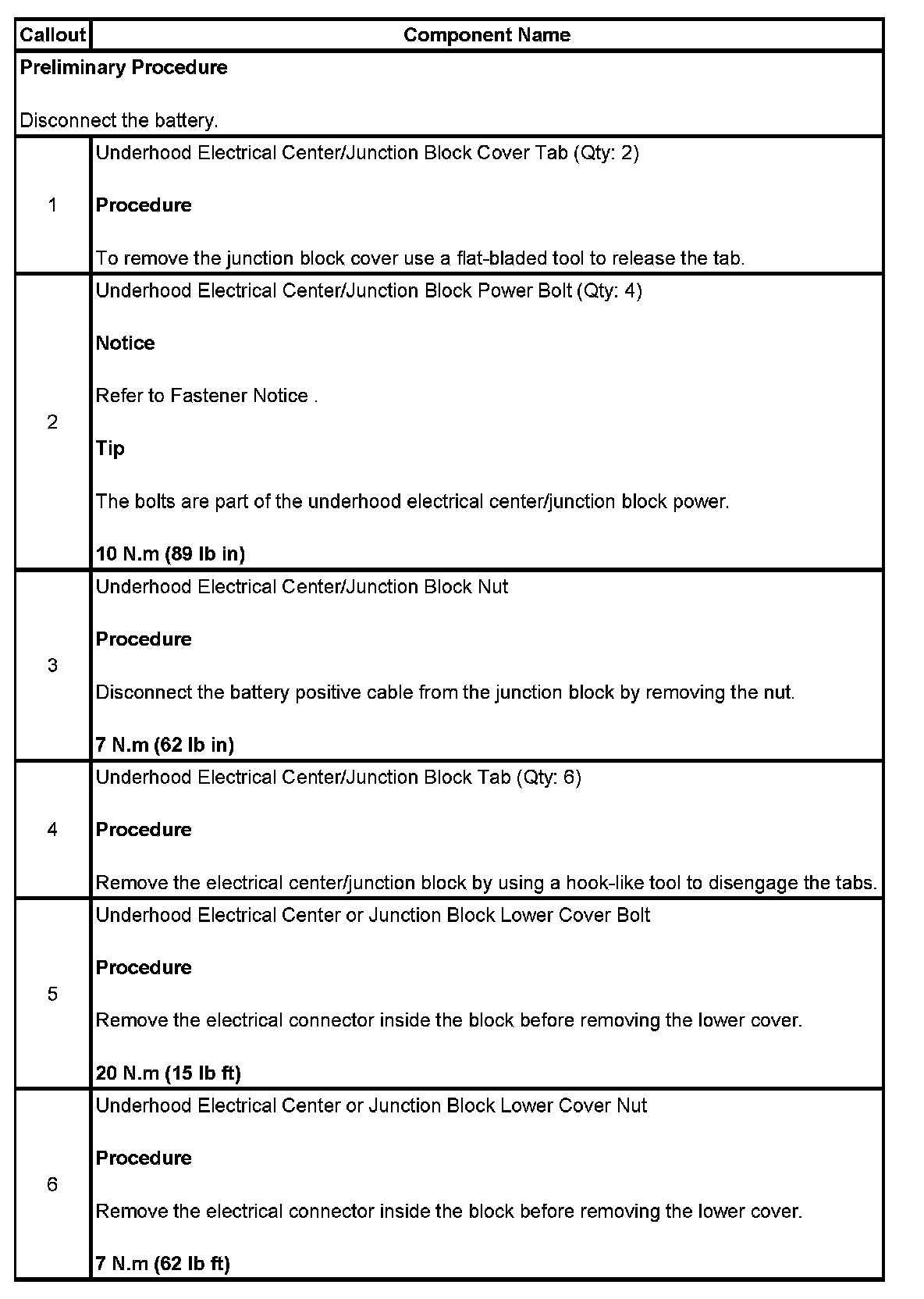

UNDERHOOD ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT
