Battery Negative Cable Replacement

Battery Negative Cable Replacement

Removal Procedure




1. Disconnect the negative battery cable.

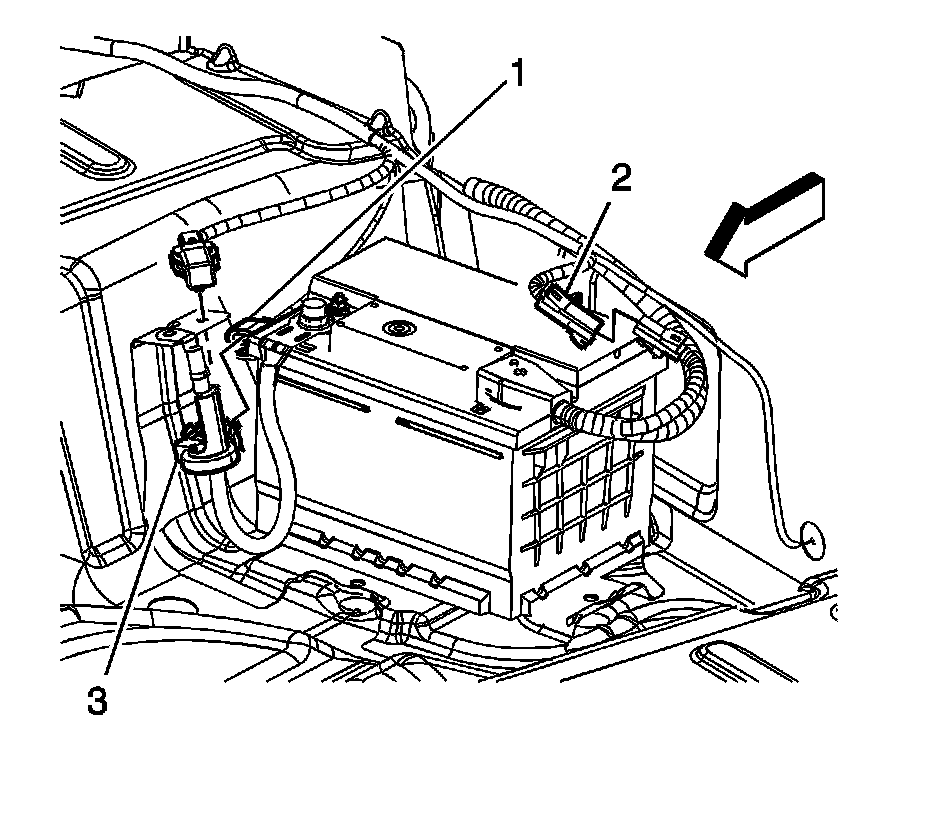

2. Disconnect the body harness electrical connector (1) from the battery current sensor (3).




3. Remove the negative battery cable bolt (3) at the support.
4. Remove the negative battery cable (2).

Installation Procedure




1. Install the negative battery cable (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the negative battery cable bolt (3) at the support.

Tighten the bolt to 20 N.m (15 lb ft).




3. Connect the body harness electrical connector (1) to the battery current sensor (3).
4. Connect the negative battery cable.
