Brake Pressure Modulator Valve Bracket Replacement
Courtesy of GENERAL MOTORS CORP. Brake Pressure Modulator Valve Bracket Replacement

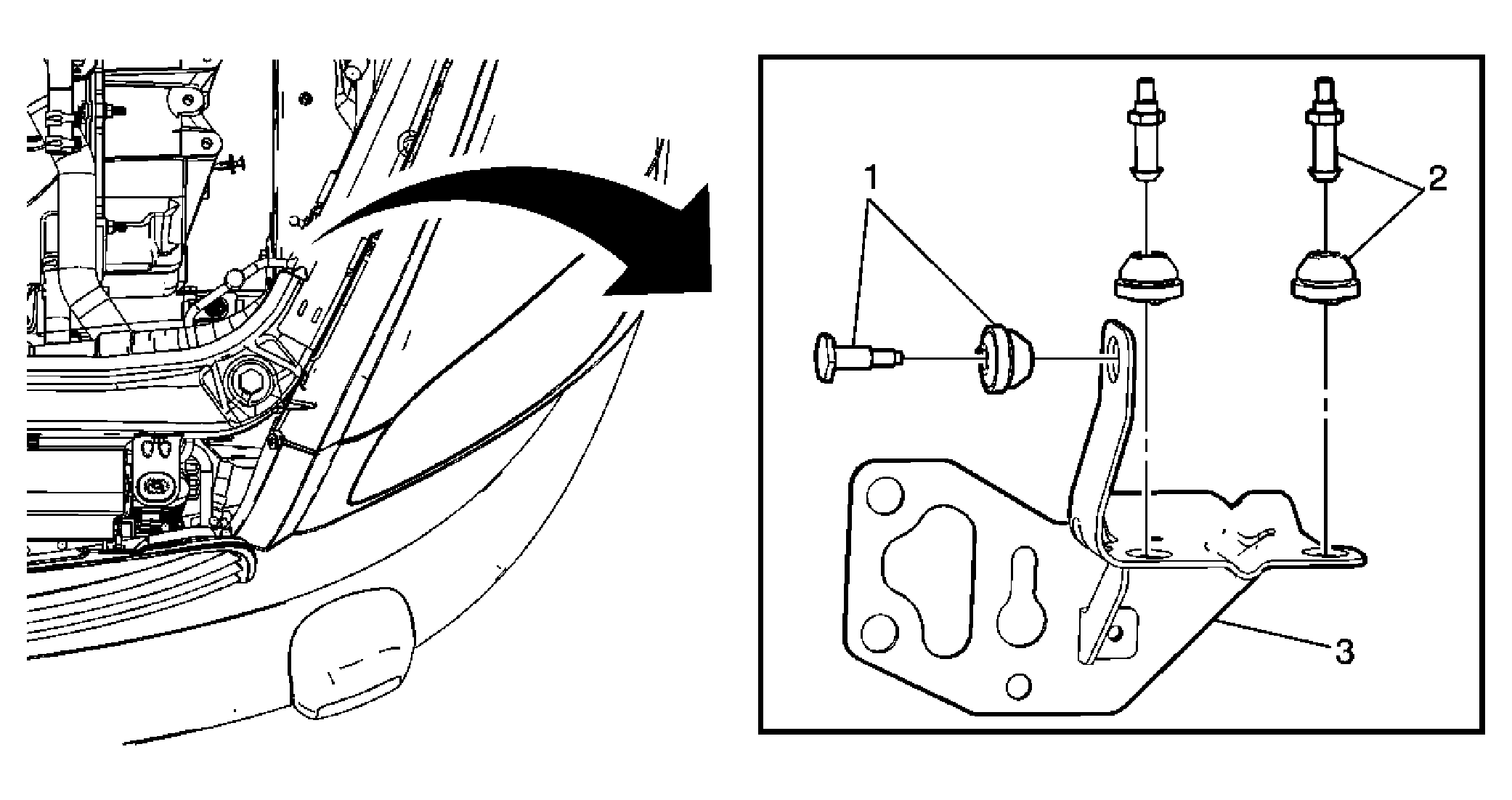

| Callout |
Component Name |
|
Preliminary Procedures
- Turn the ignition switch to the OFF position.
- Remove the cover from the engine control module (ECM) and the transmission control module (TCM).
|
| 1 |
Bolt, Brake Pressure Modulator Valve (BPMV) to Mounting Bracket
Tighten:
11 N.m (97 lb in)
|
| 2 |
Pins, BPMV Mounting
Tip:
- Do not pry against the accumulator covers on the underside of the brake modulator assembly to release the mounting pins from the bracket insulators.
- Do not remove the mounting pins unless it is necessary to aid in releasing the modulator assembly from the bracket.
- Position and support the modulator assembly to aid in bracket removal.
Tighten:
10 N.m (89 lb in)
|
| 3 |
Bracket, BPMV
Tip:
- Loosen the BPMV bracket forward upper mounting bolt and remove the remaining bolts.
- Inspect the insulators and replace if necessary.
|
