Installation Procedure

    Fig 1: CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Inspect the CMP sensor for damage, replace as necessary.
  1. Lubricate the CMP sensor O-ring seal with clean engine oil.
  2. Install the CMP sensor.
    NOTE: Refer to Fastener Notice .
  3. Install the CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

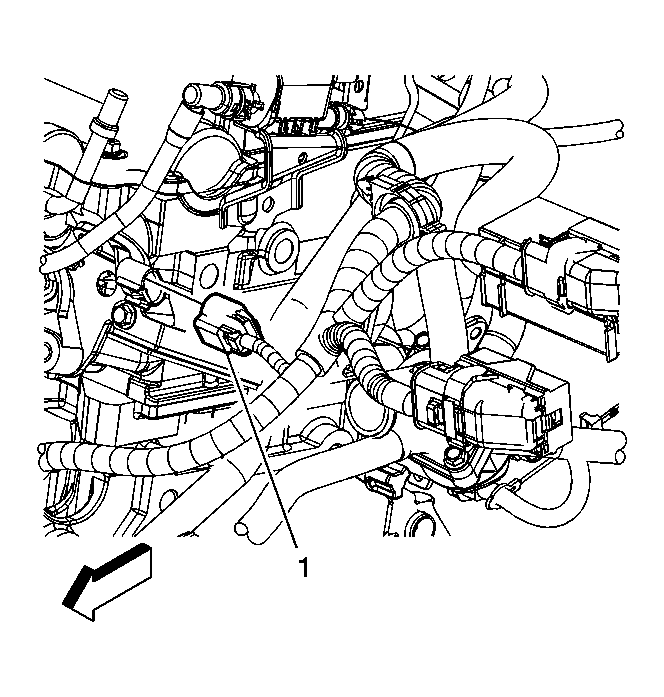

    4. Fig 2: View of intake manifold cover
    GM1751025Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the intake CMP sensor.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
