Power Mirror Switch Replacement

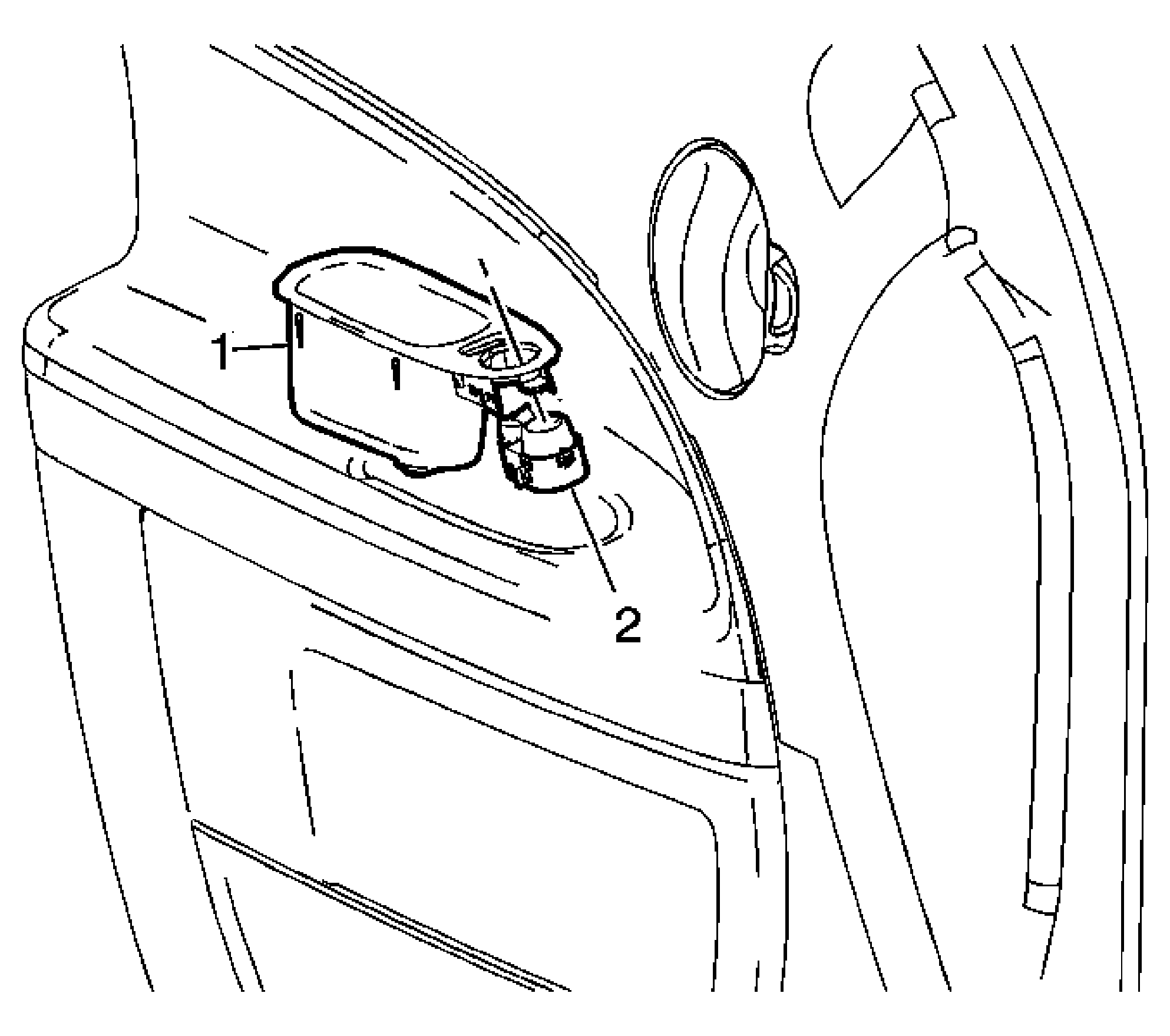

Fig 1: Power Mirror Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cup, Front Side Door Armrest Pull Refer to Armrest Pull Cup Replacement .
2	Switch, Outside Rearview Mirror Tip: Disconnect the electrical connector and remove from the armrest pull cup.
