Lumbar Switch Replacement

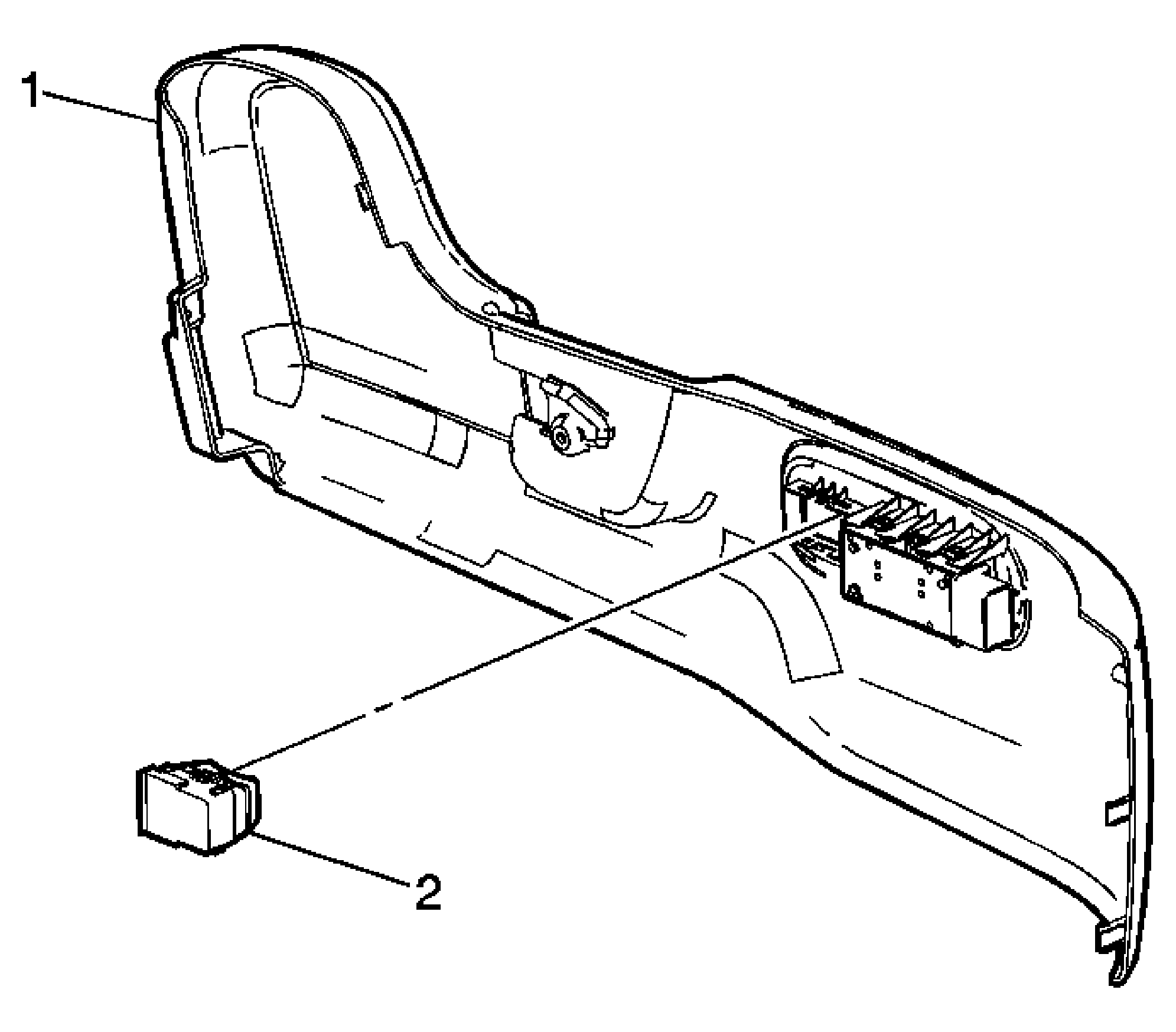

Fig 1: Lumbar Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the recliner handle. Refer to Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement .
1	Cover, Seat Riser Finish Outboard Refer to Front Seat Cushion Outer Trim Panel Replacement (Manual) or Front Seat Cushion Outer Trim Panel Replacement (Power) .
2	Switch, Driver Seat Lumbar Control Tip: Disconnect the electrical connector. Unclip from seat riser finish cover and pull the switch away to remove.
