Dimmer Switch Replacement
WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.
Dimmer Switch Replacement

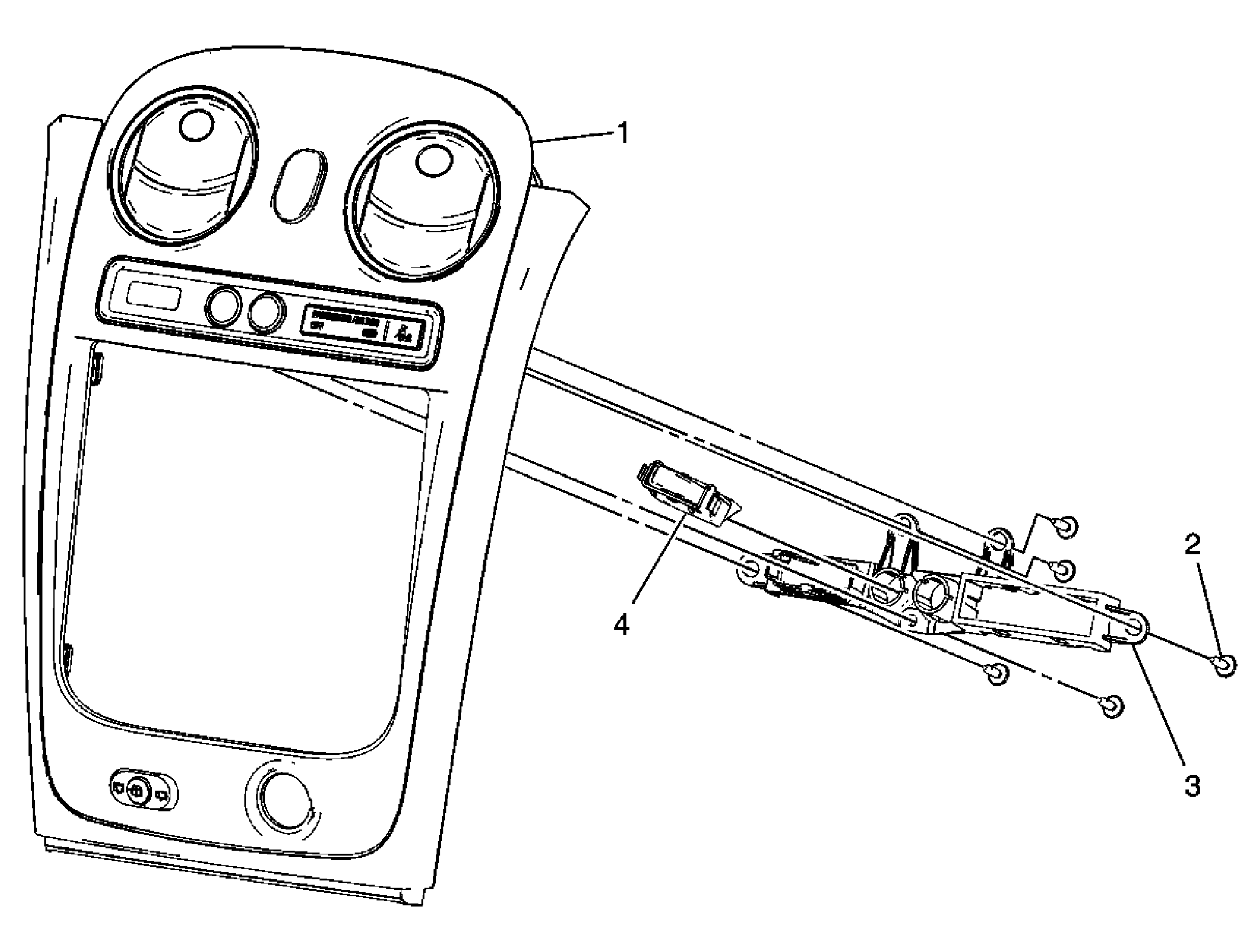

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement . |
| 2 | Inflatable Restraint Indicator Bracket Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 3 | Inflatable Restraint Indicator Bracket |
| 4 | Instrument Panel Dimmer Switch Assembly |
