Front Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

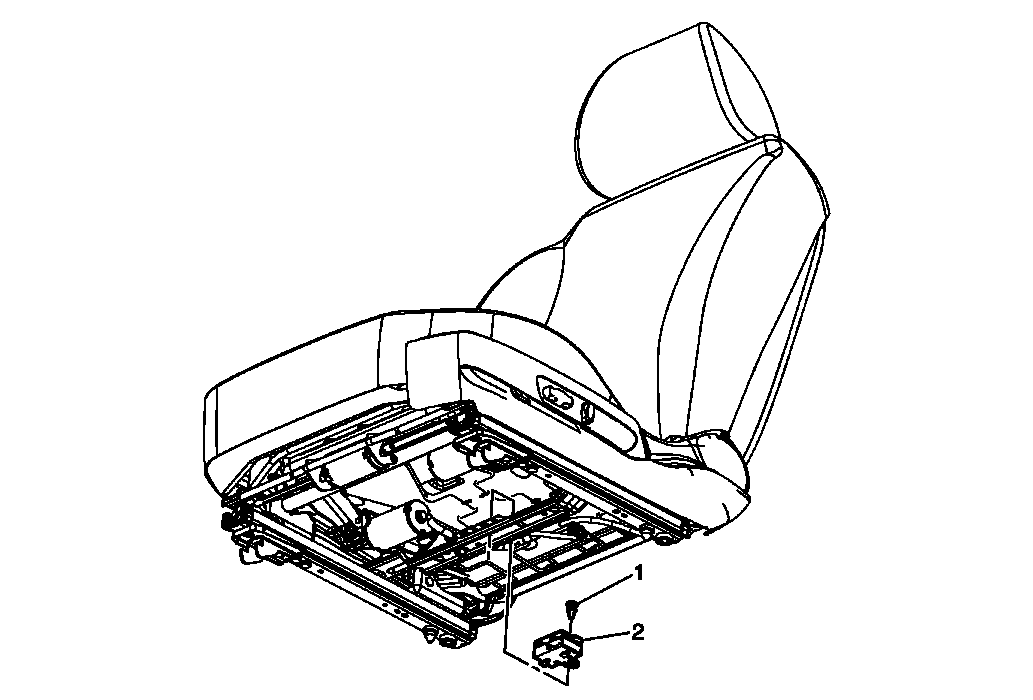

Fig 1: Front Seat Heater Control Module & Retainer
GM2321858Courtesy of GENERAL MOTORS COMPANY
Front Seat Heater Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1 Front Seat Heater Control Module Retainer
2 Front Seat Heater Control Module
Procedure
Disconnect the electrical connector.
